Connector PINOUTS
›
A/C Compressor Clutch Relay
A/C Compressor Clutch Relay

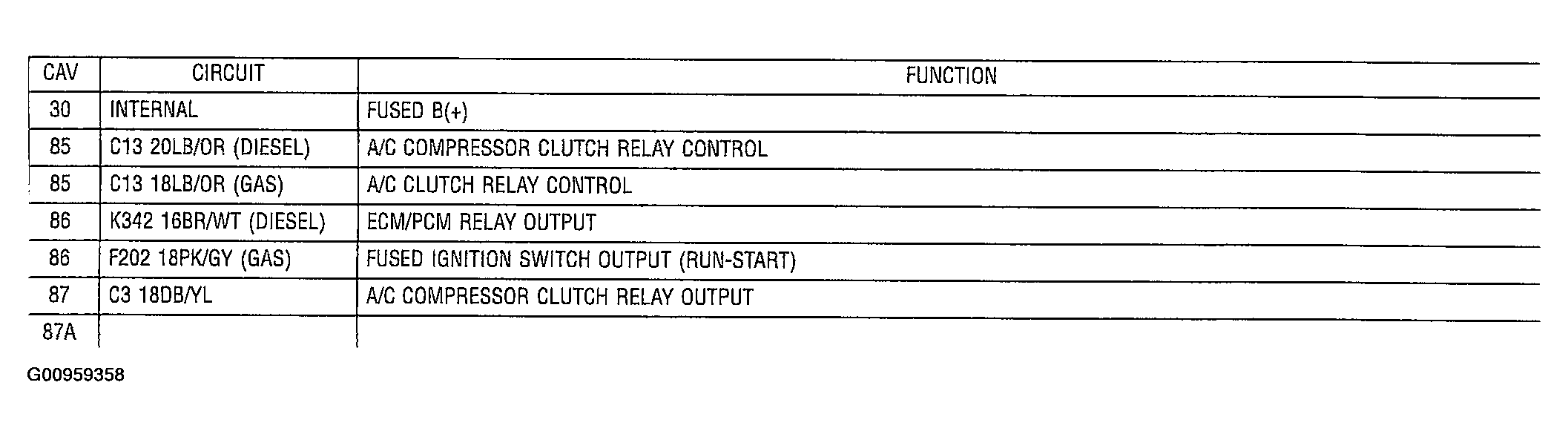

Fig 1: A/C Compressor Clutch Relay Functional Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
