Module-Front Control: Installation

  1. Press the Front Control Module (FCM) onto the Integrated Power Module (IPM).
  2. Install the mounting fasteners.
  3. Install the IPM.
  4. Connect the positive and negative battery cables.

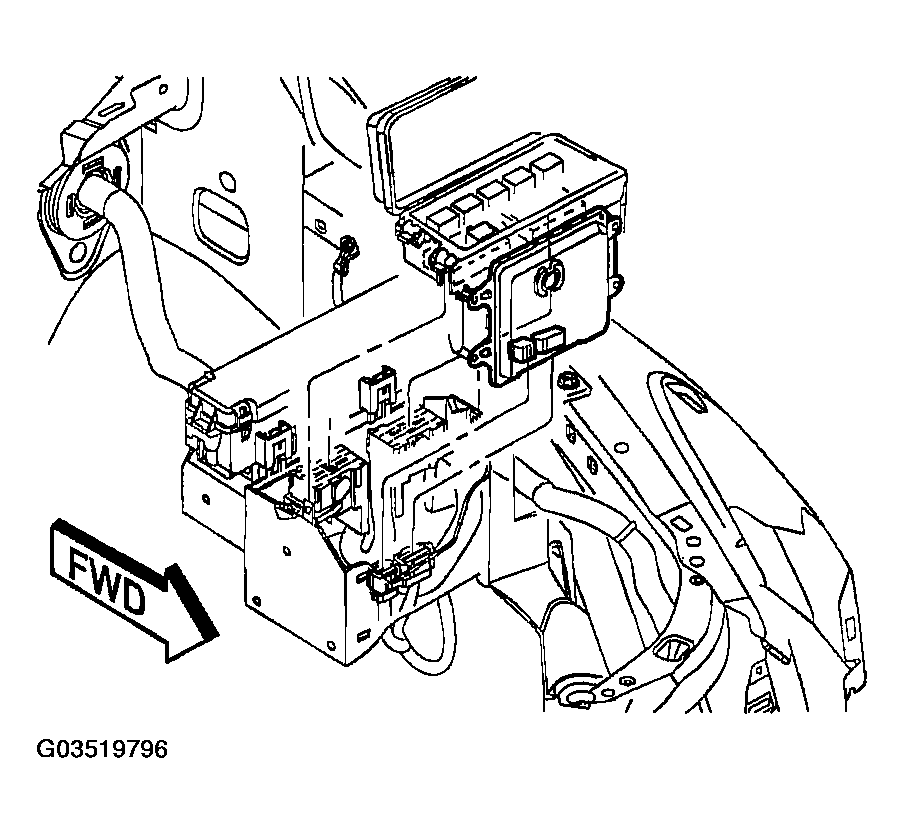

    Fig 1: Installing Front Control Module (FCM) Onto Integrated Power Module (IPM)
    G03519796Courtesy of DAIMLERCHRYSLER CORP.
