Module-Front Control: Removal

  1. Disconnect the positive and negative battery cables from the battery.
  2. Partially remove the Integrated Power Module (IPM) from the engine compartment.
  3. Remove the front control module retaining screws.
  4. Pull the front control module straight from the IPM.

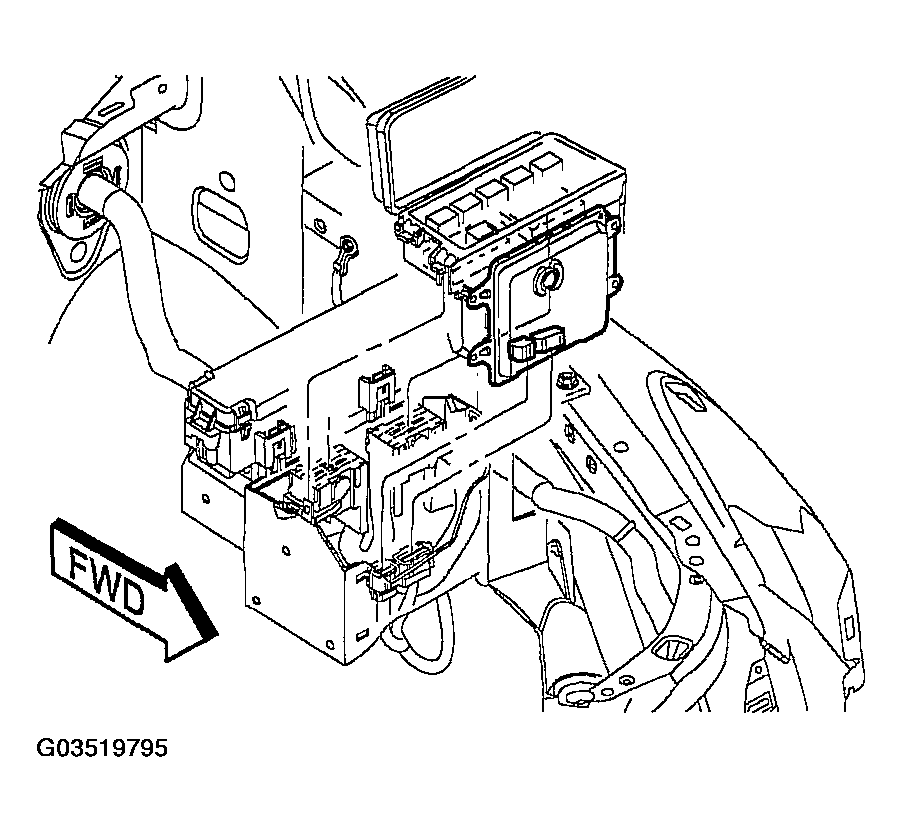

    Fig 1: Pulling Front Control Module Straight From IPM
    G03519795Courtesy of DAIMLERCHRYSLER CORP.
