Module-Powertrain Control C2 Connector End View

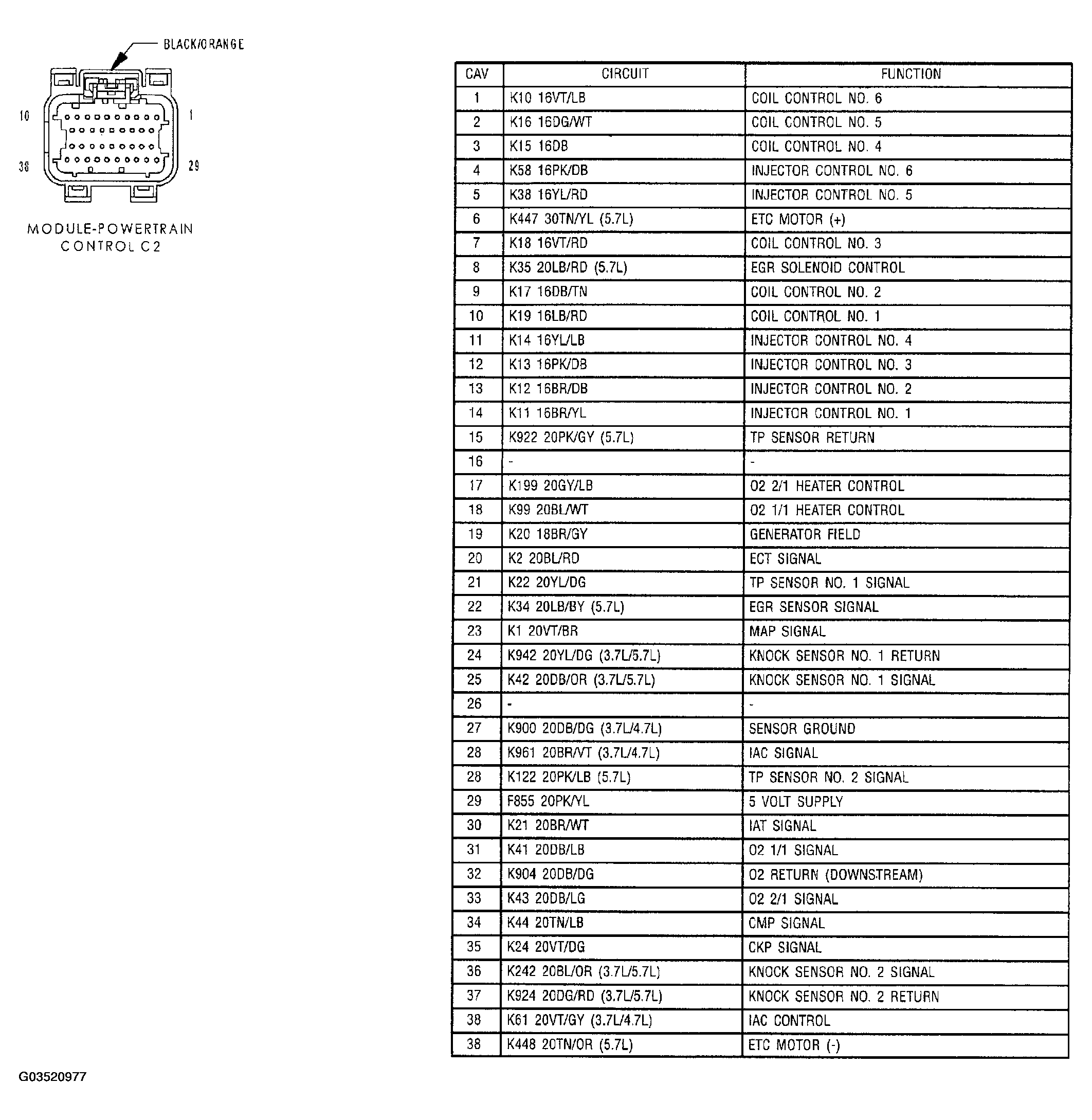

Fig 1: Powertrain Control Module Connector End View (C2)
G03520977Courtesy of DAIMLERCHRYSLER CORP.
