Module-Seat Memory C2 Connector End View

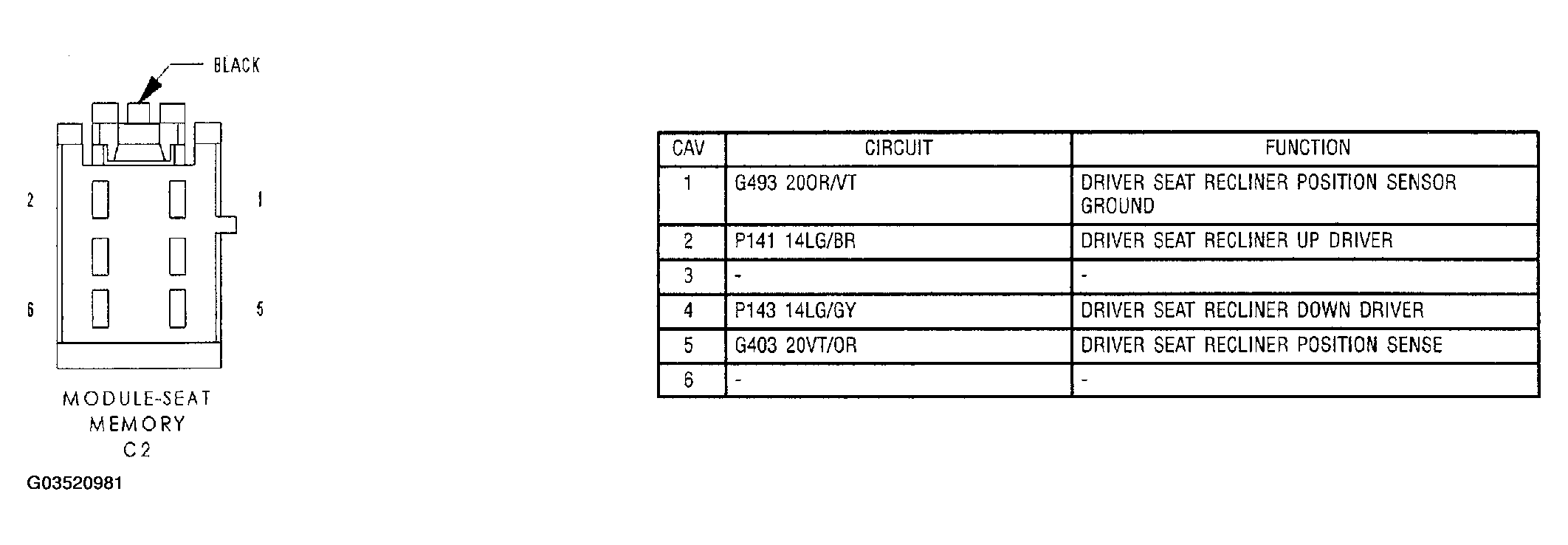

Fig 1: Seat Memory Module Connector End View (C2)
G03520981Courtesy of DAIMLERCHRYSLER CORP.
