Module-Sentry Key Remote Entry Connector End View
Module-Sentry Key Remote Entry Connector End View

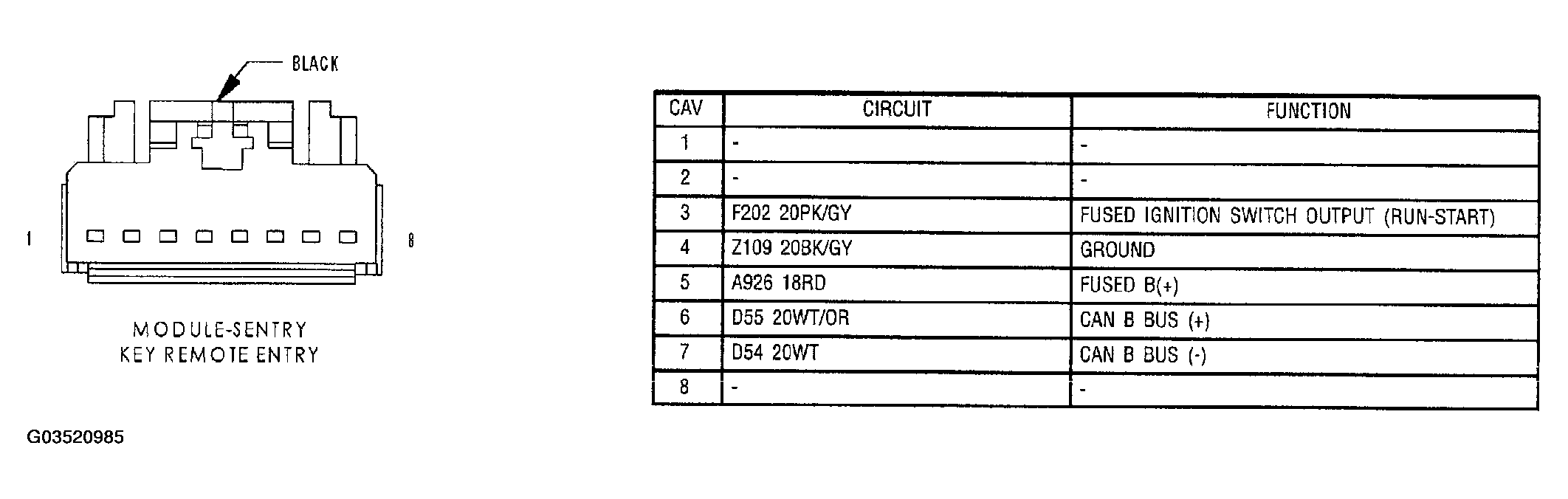

Fig 1: Sentry Key Remote Entry Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
