Servo-Speed Control: Installation

  1. Position servo (2) to mounting bracket.
  2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
  3. Insert servo mounting studs through holes in servo mounting bracket.
  4. Install two servo-to-mounting bracket nuts (1) and tighten. Refer to SPECIFICATIONS  .

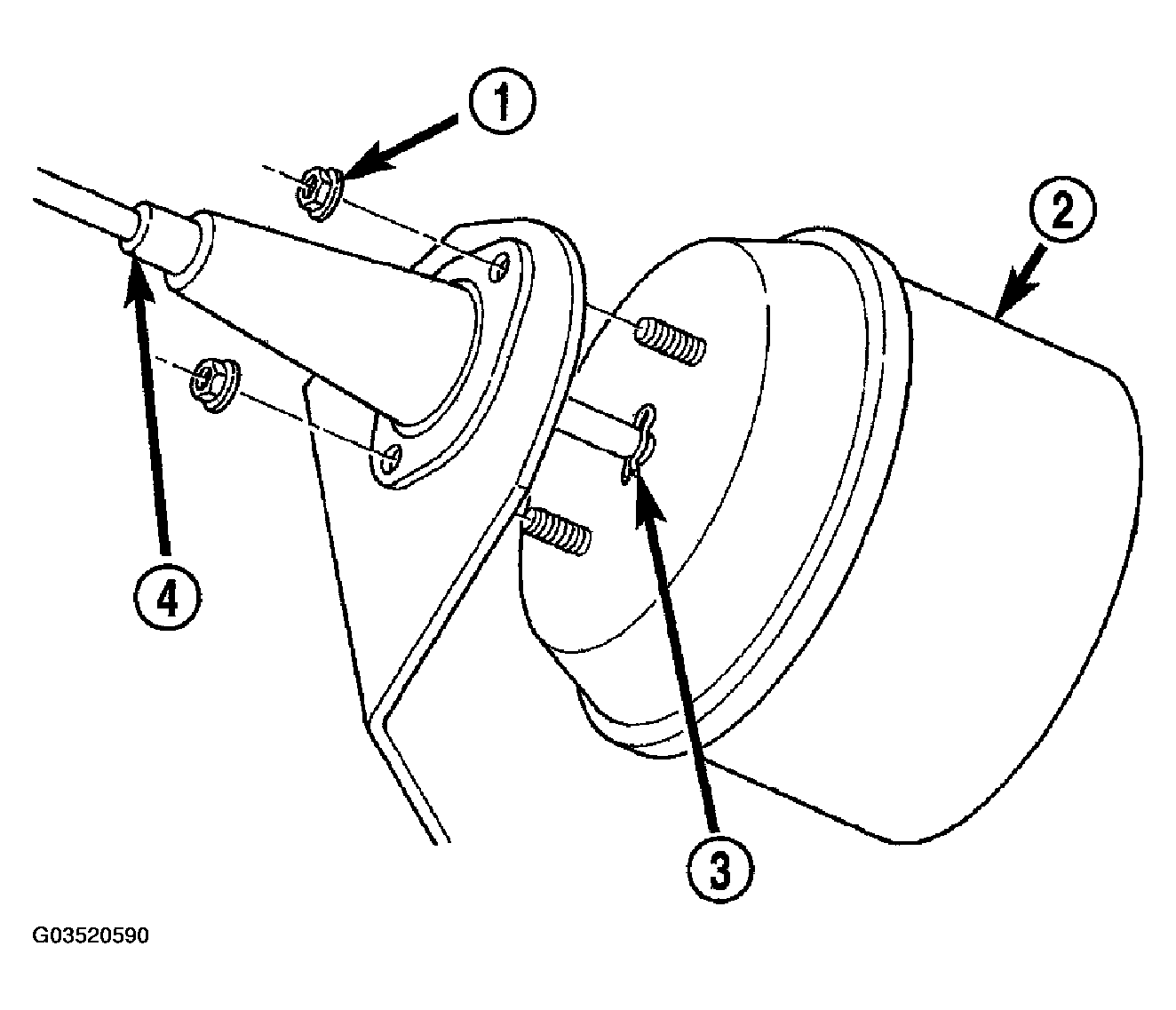

    Fig 1: Installing Servo-To-Mounting Bracket Nuts
    G03520590Courtesy of DAIMLERCHRYSLER CORP.
  5. Position servo assembly (4) to correct mounting lugs on bottom of PDC (1) and install 3 screws.

    Tighten 3 screws. Refer to SPECIFICATIONS  .

  6. Connect vacuum line at servo.
  7. Connect electrical connector at servo.
  8. Connect servo cable to throttle body. Refer to CABLE-SPEED CONTROL  .
  9. Connect negative battery cable to battery.

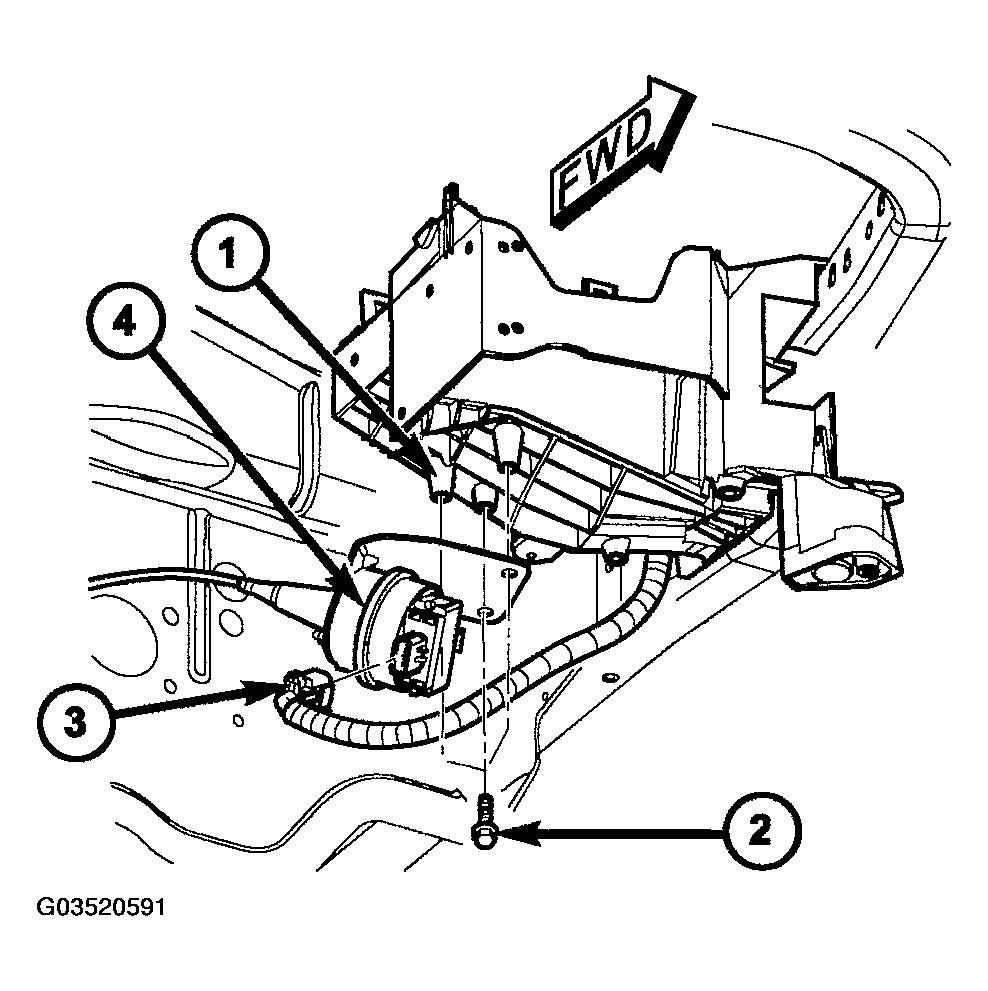

    Fig 2: Identifying Servo Assembly And Power Distribution Center
    G03520591Courtesy of DAIMLERCHRYSLER CORP.
  10. Before starting engine, operate accelerator pedal to check for any binding.
