Servo-Speed Control: Removal

The speed control servo assembly (4) is attached to the bottom of the PDC (Power Distribution Center) (1).

1. Disconnect negative battery cable at battery.
2. Disconnect vacuum line at servo.
3. Disconnect electrical connector (3) at servo.
4. Remove three servo mounting screws (2).
5. Disconnect servo cable at throttle body. Refer to CABLE-SPEED CONTROL  .

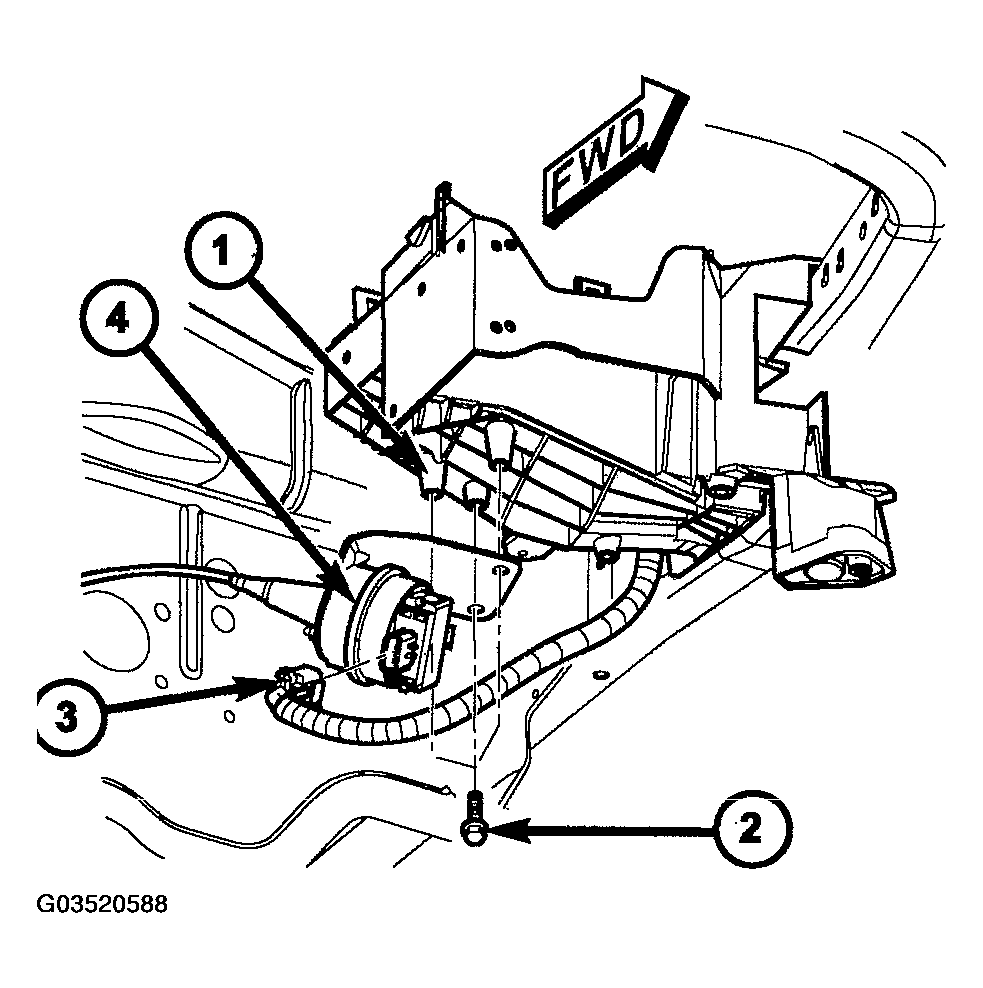

   Fig 1: Removing Three Servo Mounting Screws

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove 2 mounting nuts (1) holding servo cable sleeve (4) to bracket.
7. Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (3) and remove clip. Note: The servo mounting bracket displayed is a typical bracket and may/may not be applicable to this model vehicle.

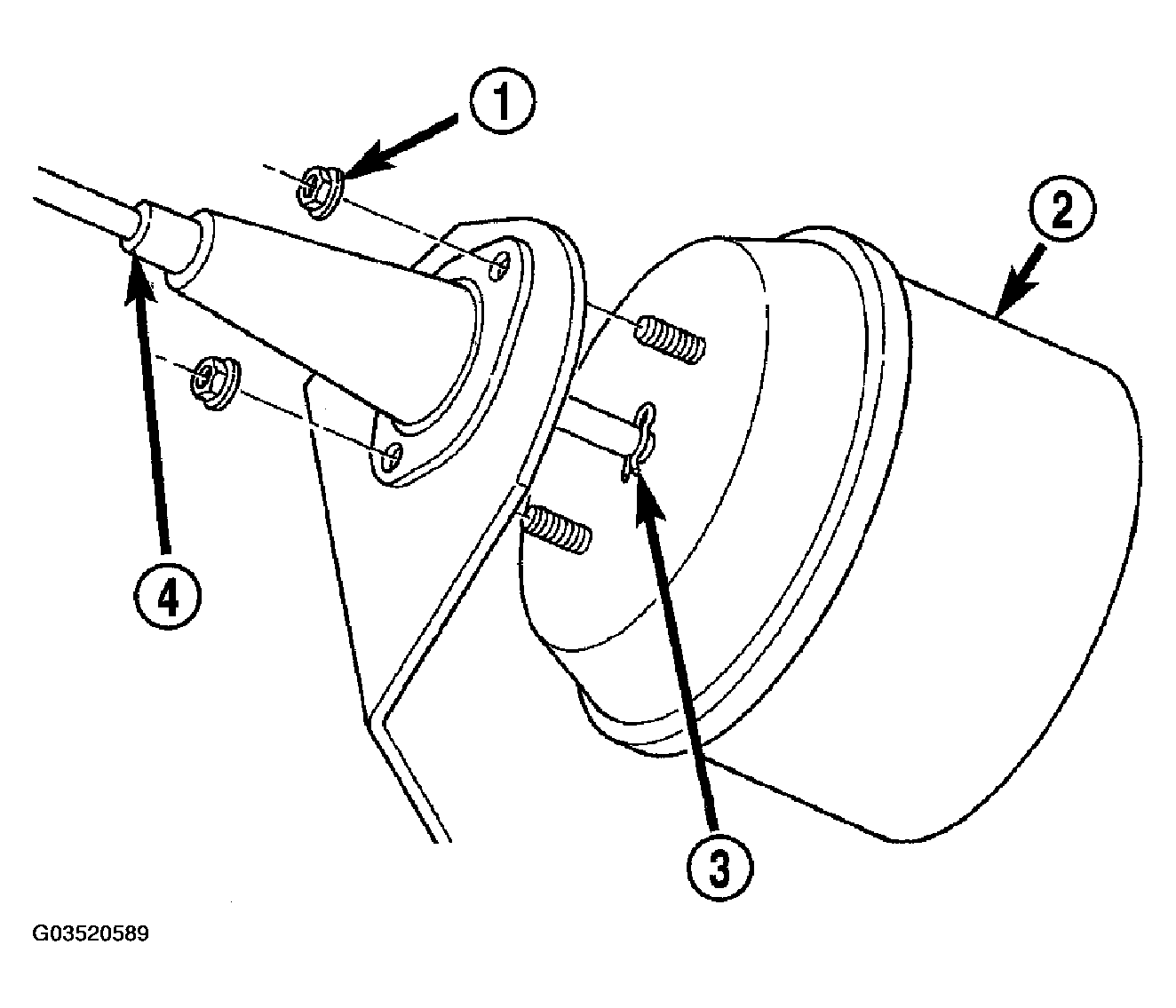

   Fig 2: Removing Servo From Mounting Bracket Nuts

   Courtesy of DAIMLERCHRYSLER CORP.
8. Remove servo (2) from mounting bracket. While removing, note orientation of servo to bracket.
