Module-Memory Mirror-Driver C2 Connector End View

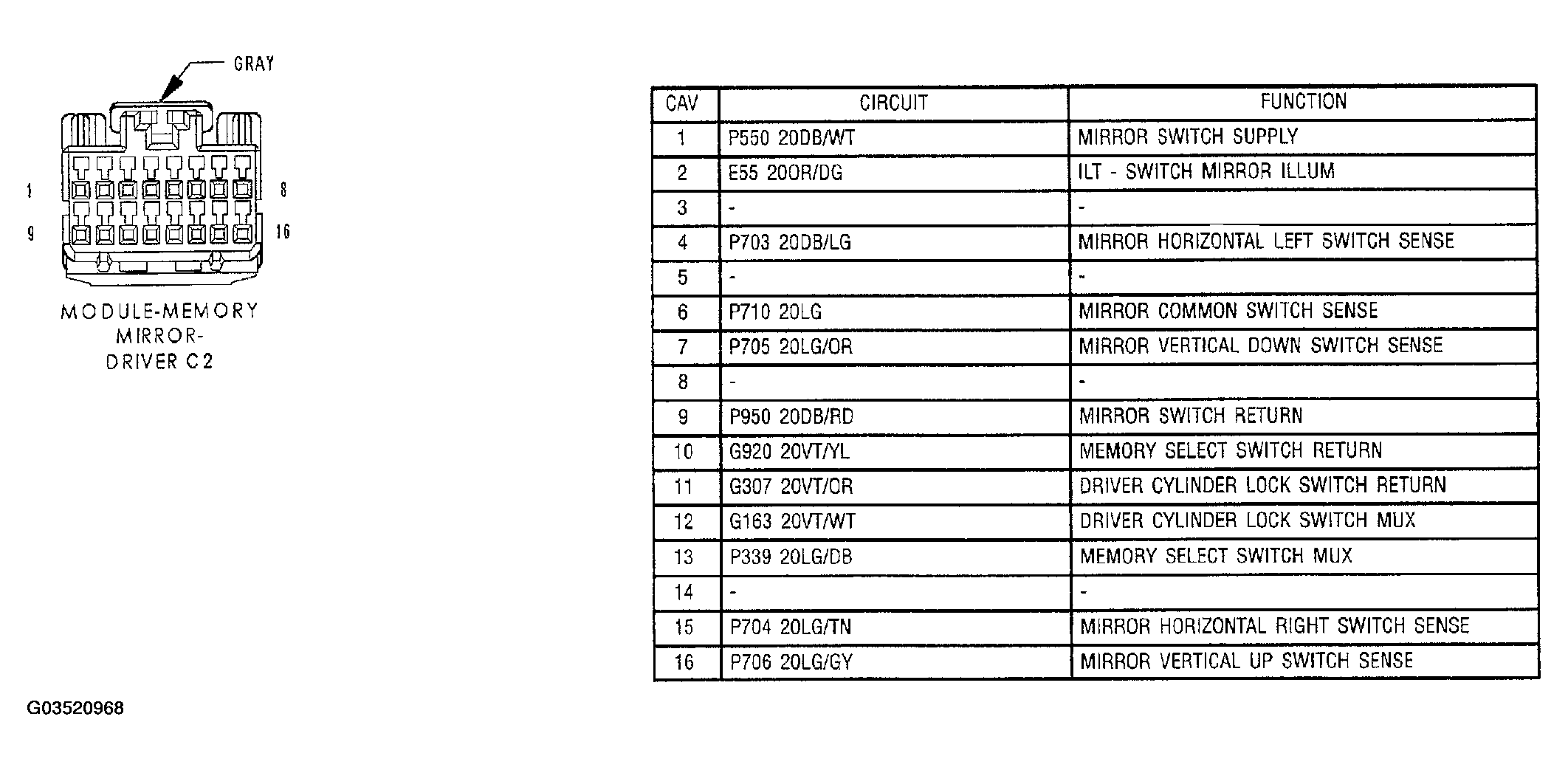

Fig 1: Driver Memory Mirror Module Connector End View (C2)
G03520968Courtesy of DAIMLERCHRYSLER CORP.
