Module-Seat Memory C3 Connector End View

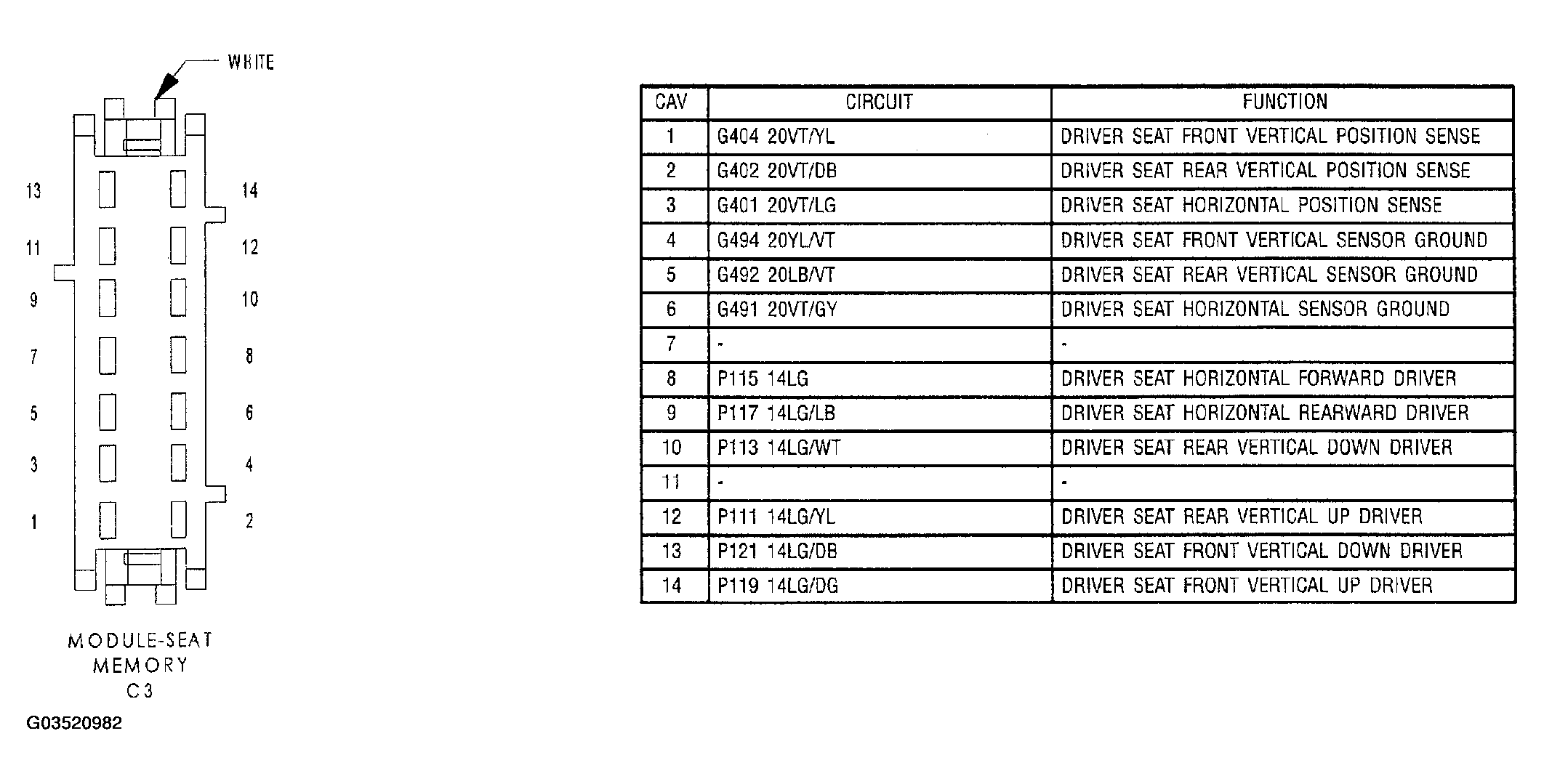

Fig 1: Seat Memory Module Connector End View (C3)
G03520982Courtesy of DAIMLERCHRYSLER CORP.
