Junction Block: Installation

  1. Connect wire harness connectors to the Junction Block (JB) (1).
  2. Position JB and install mounting fasteners (3).
  3. Install cowl trim cover (Refer to PANEL-COWL SIDE TRIM ).
  4. Connect the battery negative cable.

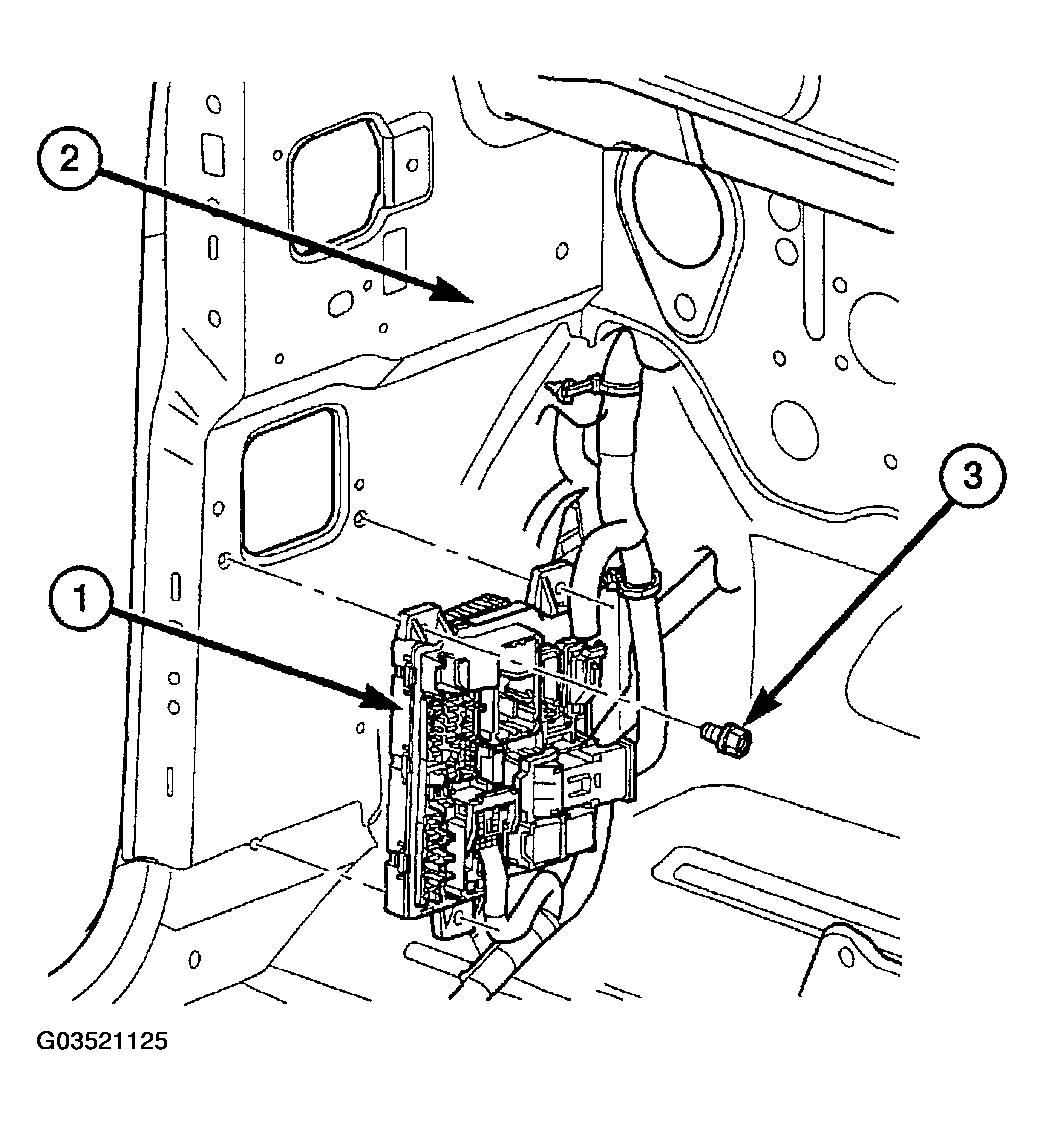

    Fig 1: Installing Junction Block
    G03521125Courtesy of DAIMLERCHRYSLER CORP.
