Sensor-Accelerator Pedal Position: Description

The Accelerator Pedal Position Sensor (APPS) (6) is attached to the accelerator pedal assembly (4) under the instrument panel.

The APPS is used only with the 5.7L V-8 engine.

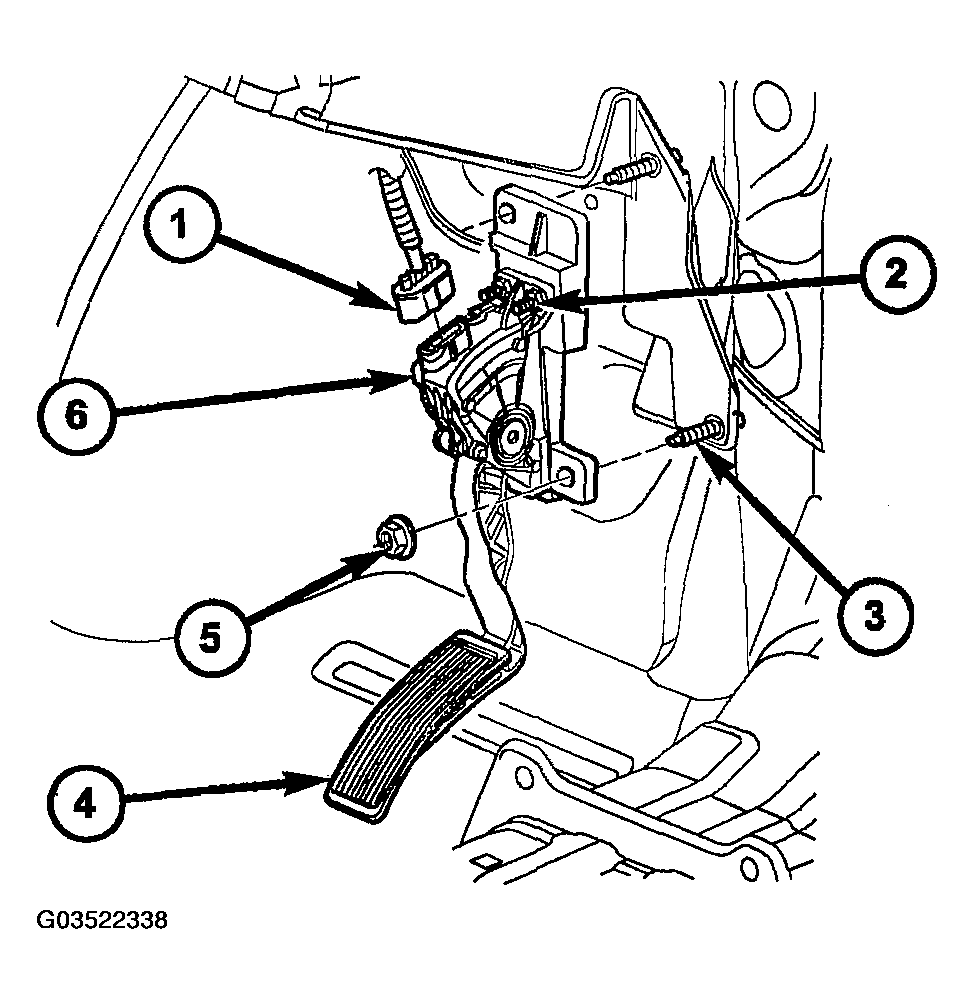

Fig 1: Removing Accelerator Pedal Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.
