4.7L V-8

The 4.7L V-8 engine uses 8 dedicated, and individually fired coil (1) for each spark plug. Each coil is mounted directly to the top of each spark plug.

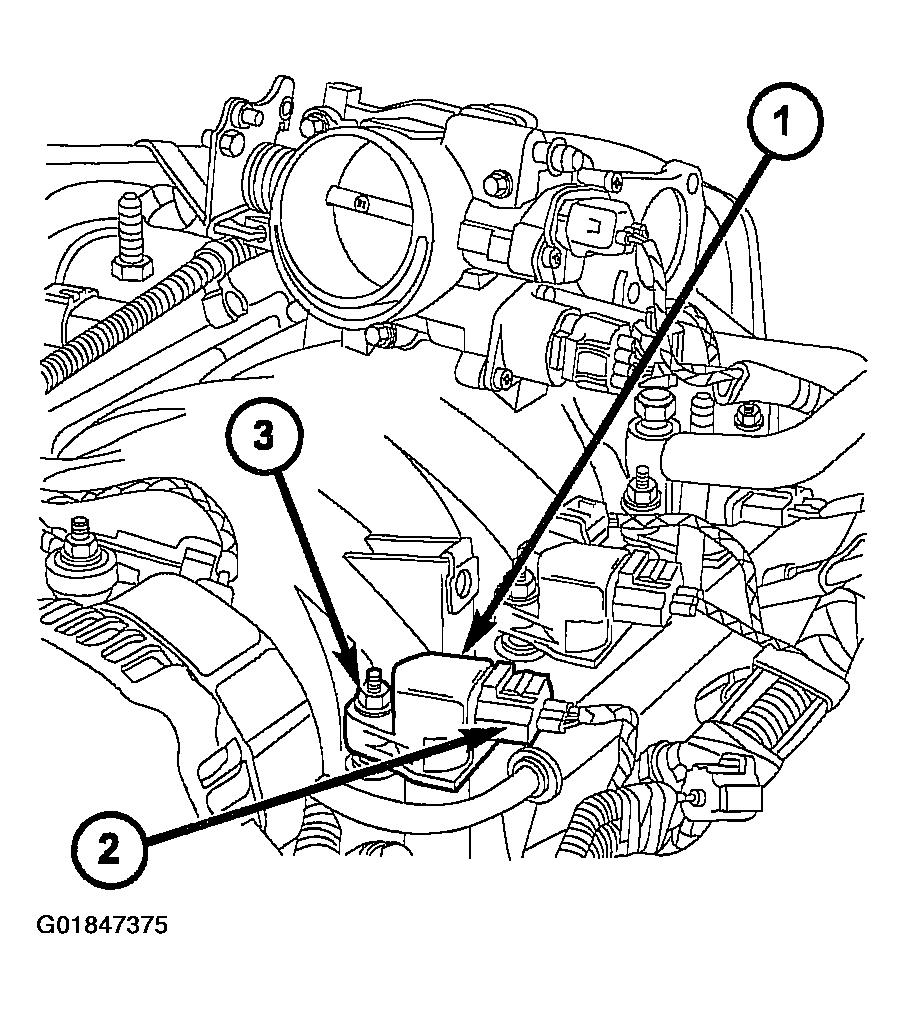

Fig 1: Locating Coil (4.7L)

Courtesy of DAIMLERCHRYSLER CORP.
