Idle Air Control Motor: Installation

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY ( Fig 1 )  to aid assembly. Use care when removing hoses to prevent damage to hose or hose nipple.

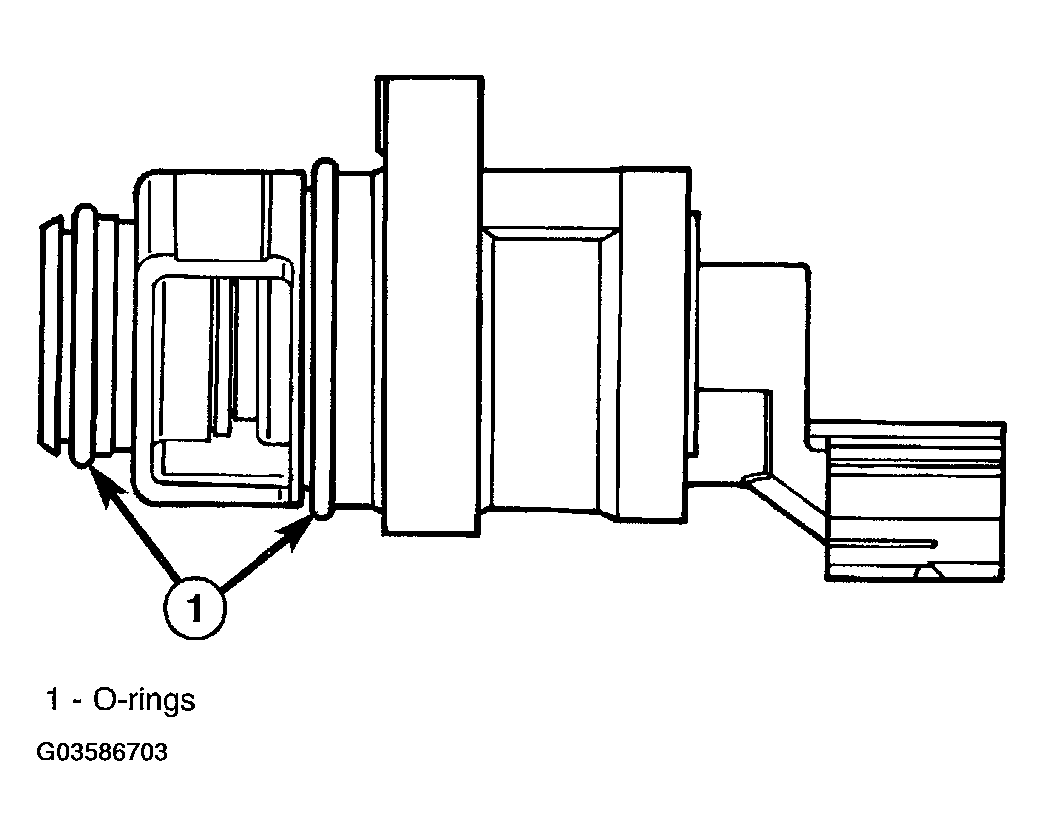

Fig 1: Identifying O-RINGS

Courtesy of DAIMLERCHRYSLER CORP.

1. Carefully place idle air control motor into throttle body.
2. Install mounting screw. Tighten screw to 7 N.m (62 in. lbs.) torque.
3. Connect electrical connector to idle air control motor.
4. Connect negative cable to battery.
