Headlamp Switch Connector End View
Headlamp Switch Connector End View

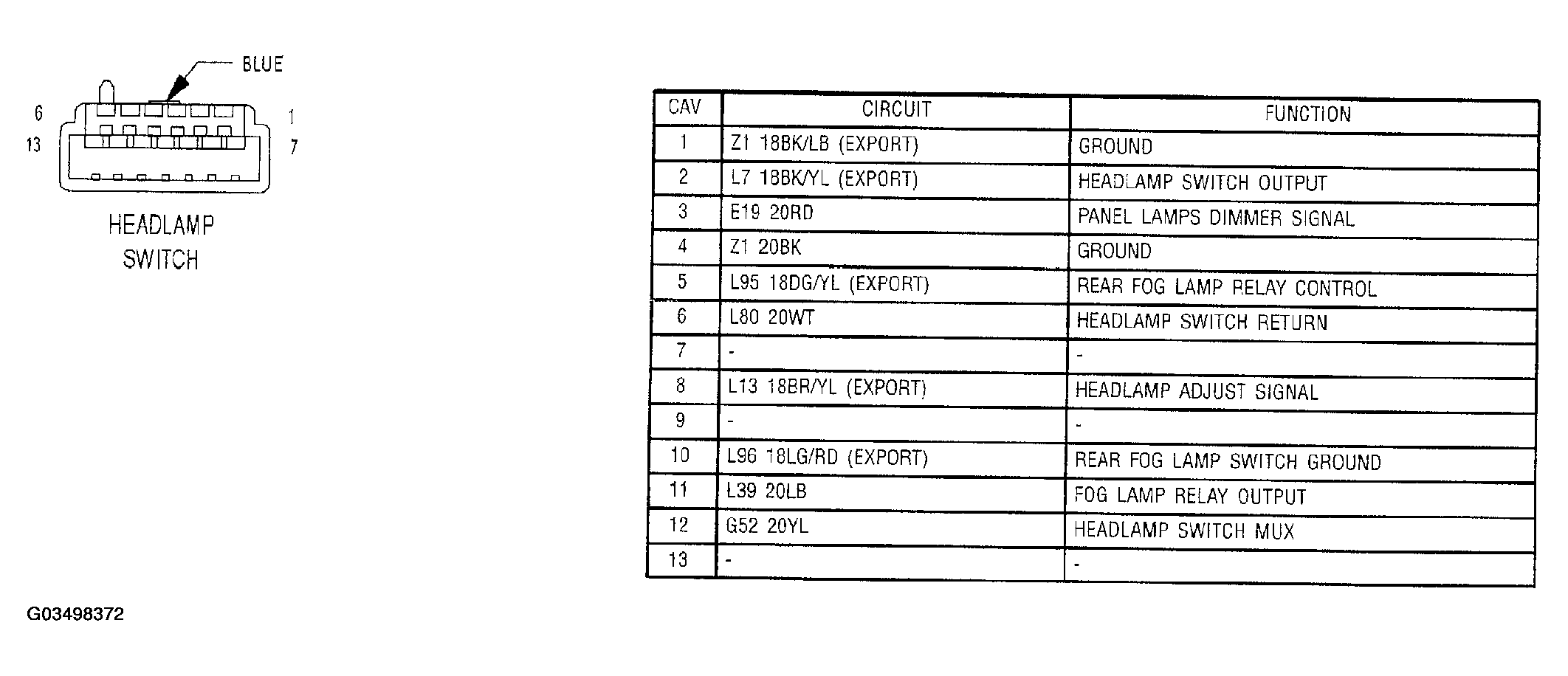

Fig 1: Headlamp Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
