Fuel Cap Lock Cylinder: Installation

Install the keyed lock cylinder in cap.

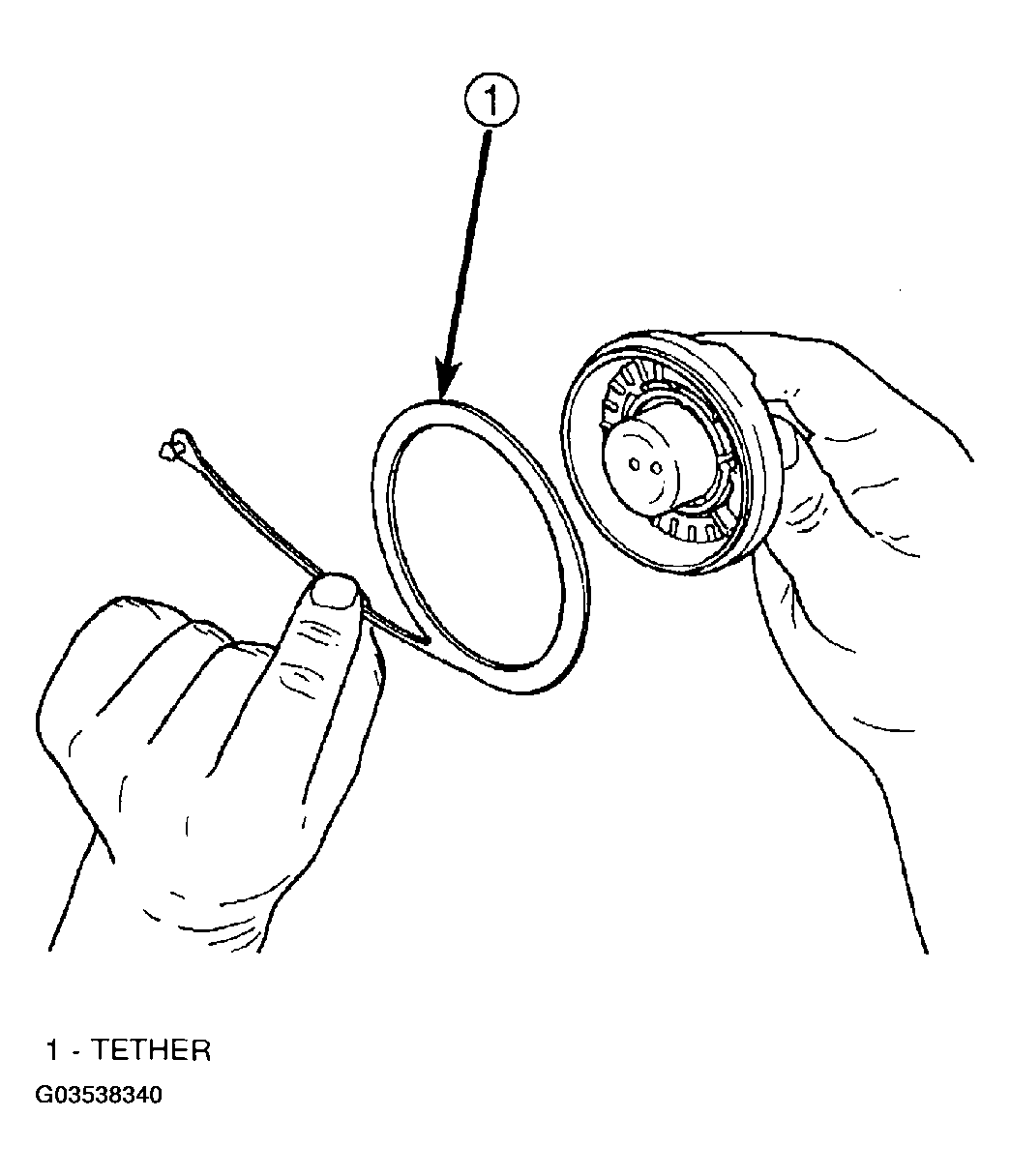

Position lock cylinder engagement collar and tether (Figure).

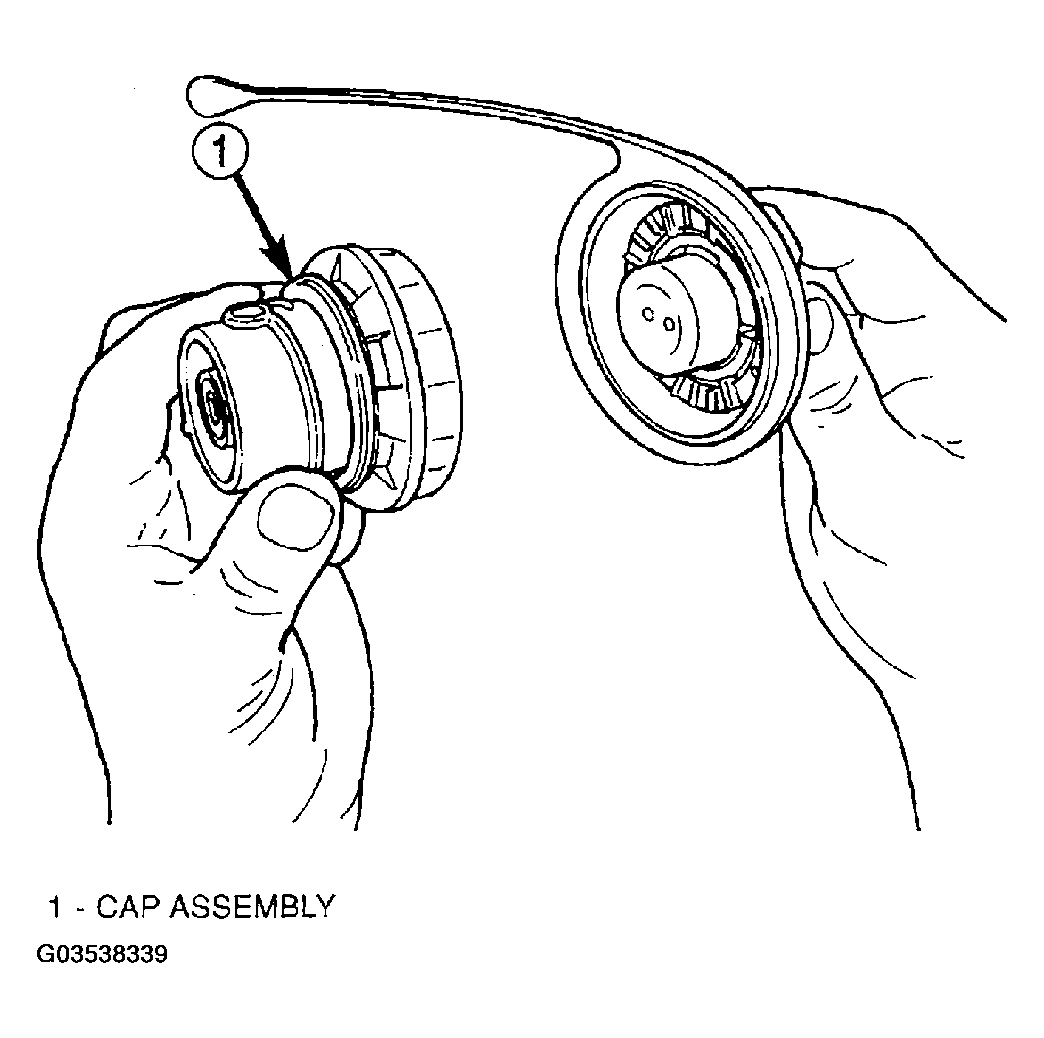

Position threaded portion of cap (Figure).
Snap retaining ring in position.
