Driver Power Window Switch Connector End View (C2)

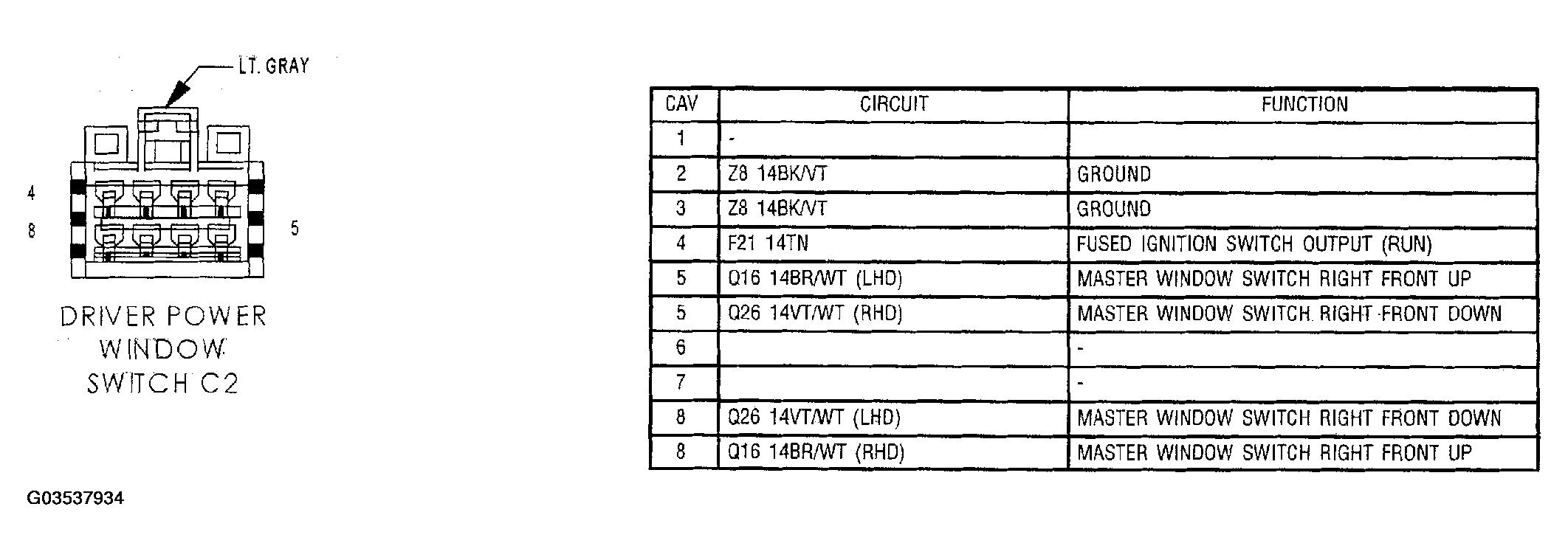

Fig 1: Driver Power Window Switch Connector End View (C2)
G03537934Courtesy of DAIMLERCHRYSLER CORP.
