Installation - LHD

Open APPS module and connect the cable (Fig 1).

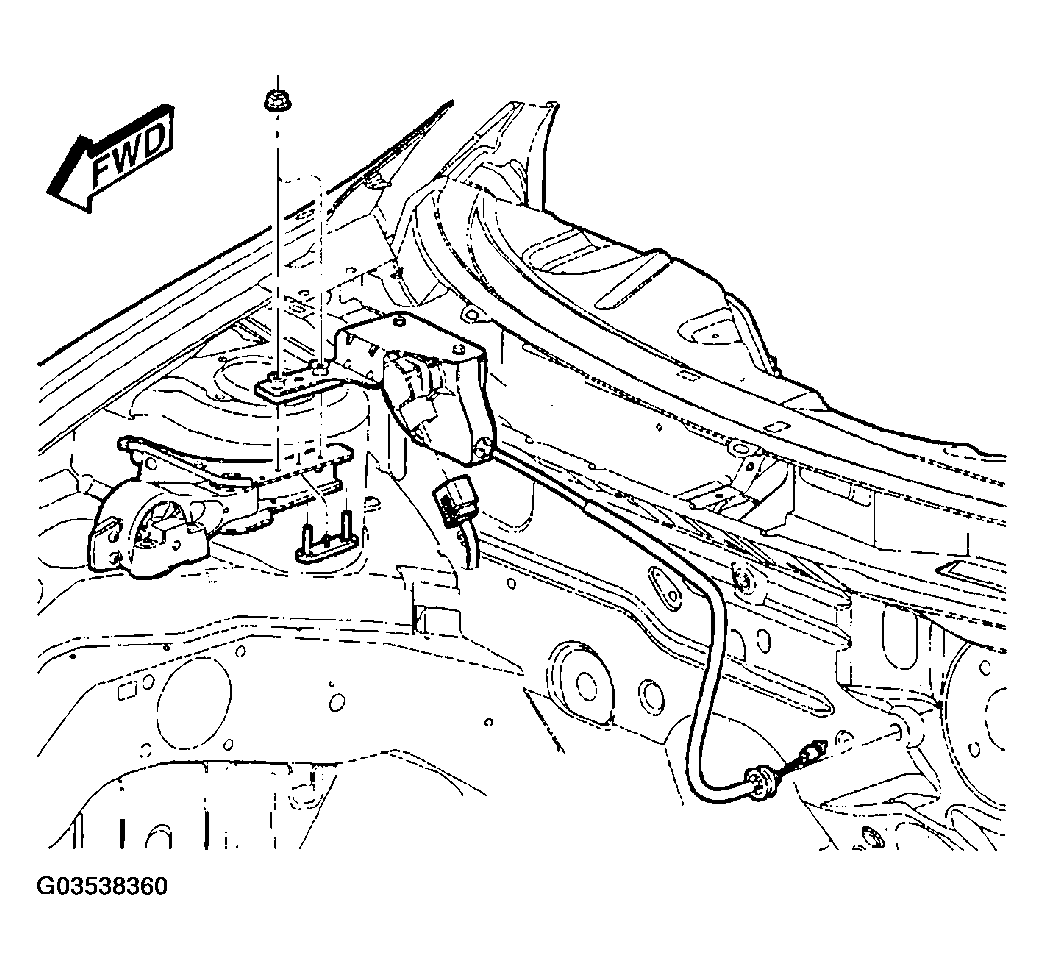

Fig 1: Installing APPS And Cable (Left Hand Drive Vehicles)
Courtesy of DAIMLERCHRYSLER CORP.
Install APPS module.
Tighten the 2 mounting bolts (Fig 1).
Connect the negative battery cable.
