Input Speed Sensor: Installation

1. Verify "O" ring is installed into position.
2. Install and tighten input speed sensor to 20 ft. lbs (27 N.m).
3. Connect speed sensor connector.
4. Install air cleaner/throttle body assembly.
5. Connect battery negative cable.

Fig 1: Identifying Input Speed Sensor

Courtesy of CHRYSLER CORP.

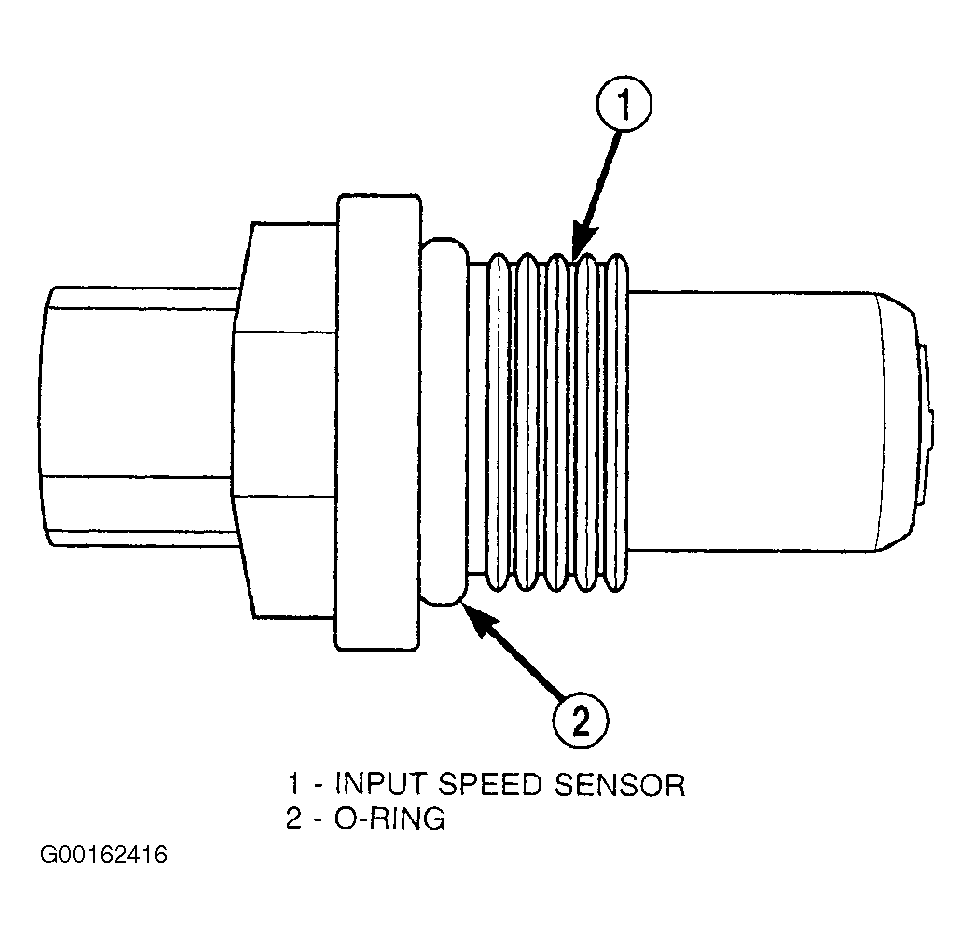

Fig 2: Identifying O-Ring Location

Courtesy of CHRYSLER CORP.
