Powertrain Control Module Connector End View
Powertrain Control Module Connector End View

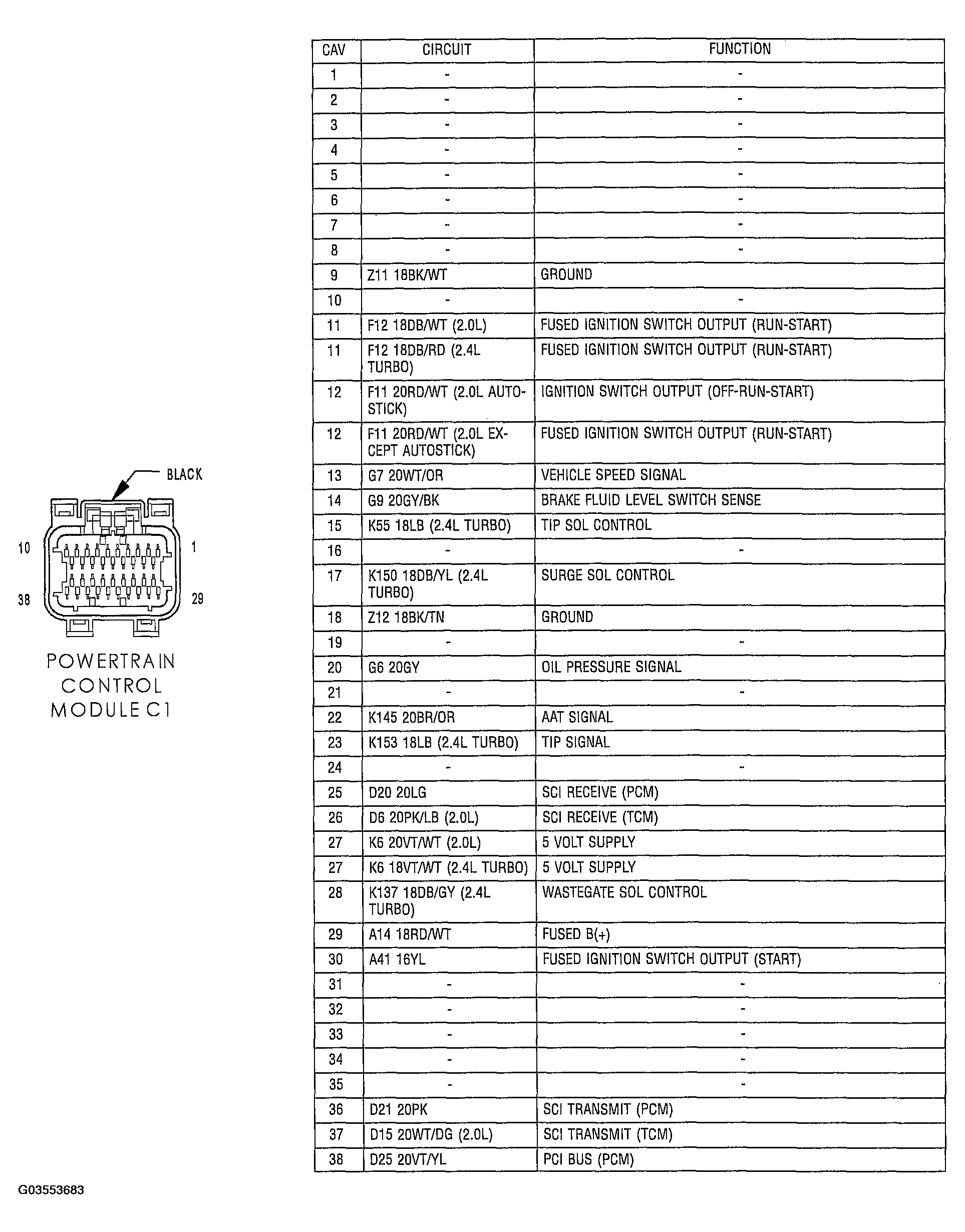

Fig 1: Identifying Powertrain Control Module C1 Connector Terminals And Specifications (Black 38-Way)
