DECKLID Security Switch Connector End View
DECKLID Security Switch Connector End View

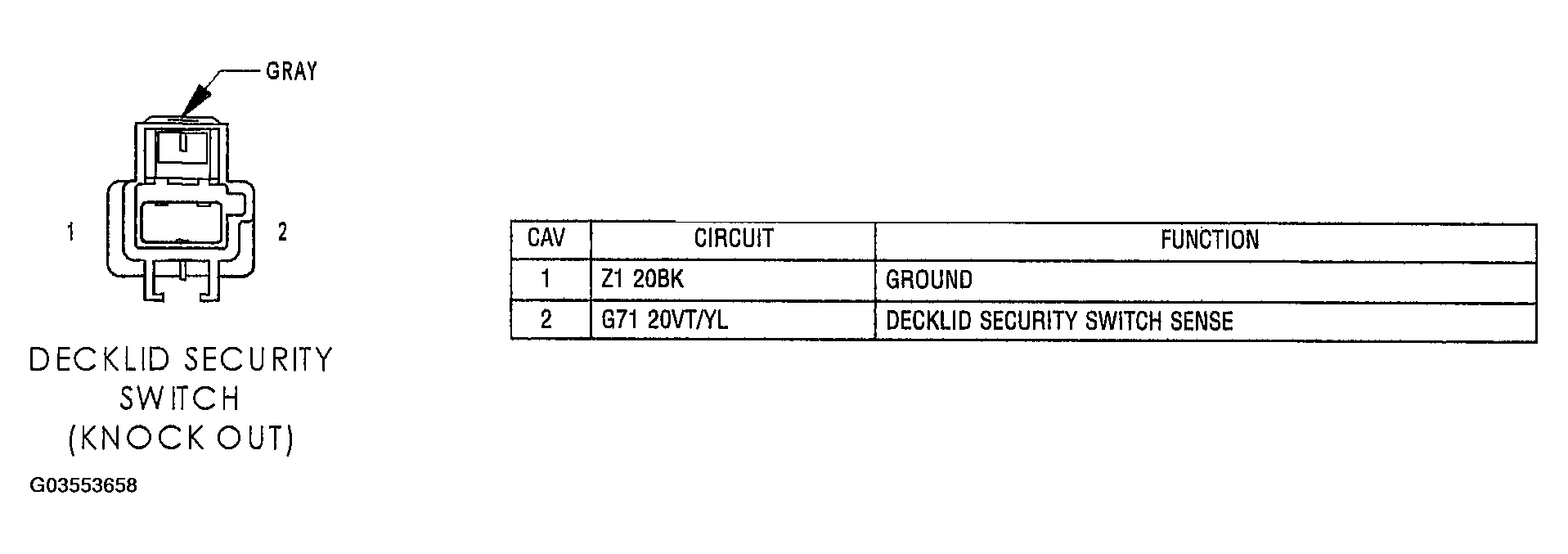

Fig 1: Identifying Decklid Security Switch Connector Terminals And Specifications (Knock Out - Gray 2-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
