Multi-Function Switch Connector End View
Multi-Function Switch Connector End View

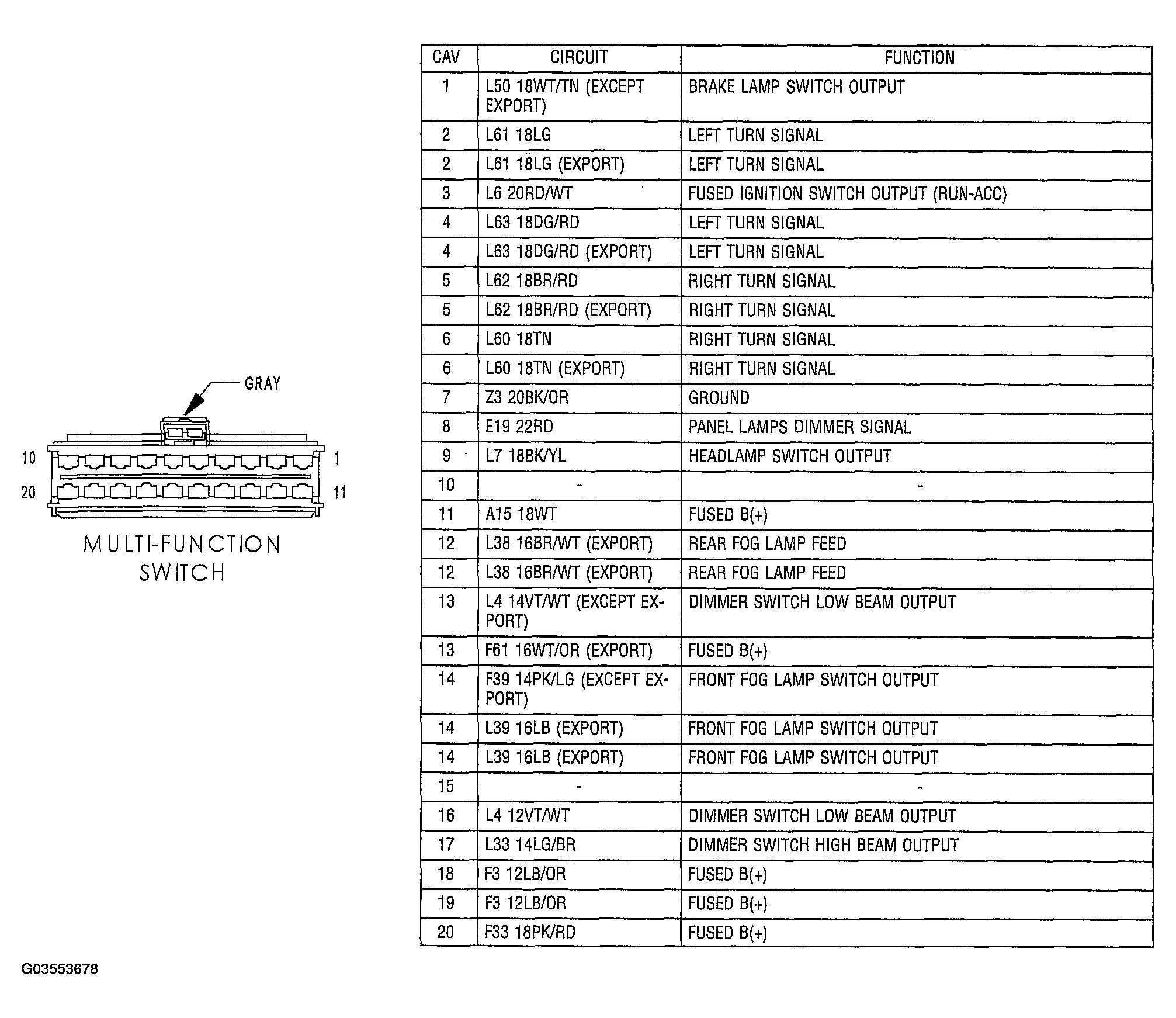

Fig 1: Identifying Multi-Function Switch Connector Terminals And Specifications (Gray 20-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
