Right Side Impact Airbag Control Module Connector End View
Right Side Impact Airbag Control Module Connector End View

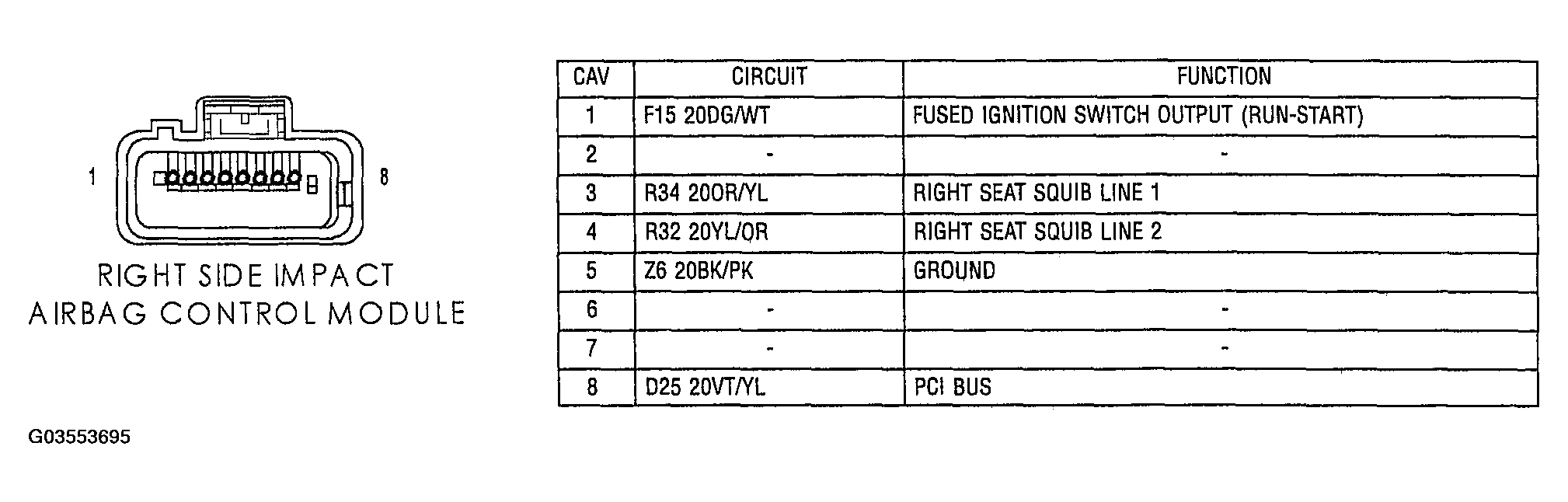

Fig 1: Identifying Right Side Impact Airbag Control Module Connector Terminals And Specifications (8-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
