Body & Frame
›
Body, Cab Control Systems
›
Body Diagnostic Procedures
›
Connector PINOUTS
›
Sentry Key Immobilizer Module Connector End View
Sentry Key Immobilizer Module Connector End View

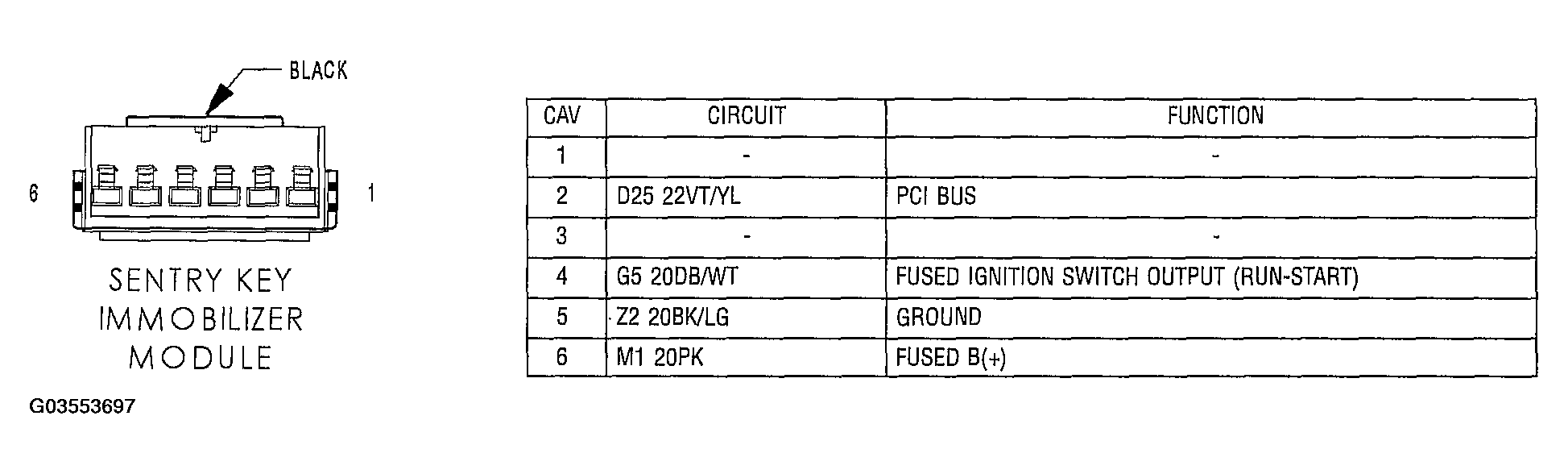

Fig 1: Identifying Sentry Key Immobilizer Module Connector Terminals And Specifications (Black 6-Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
