Battery Temperature Sensor Connector End View
Battery Temperature Sensor Connector End View

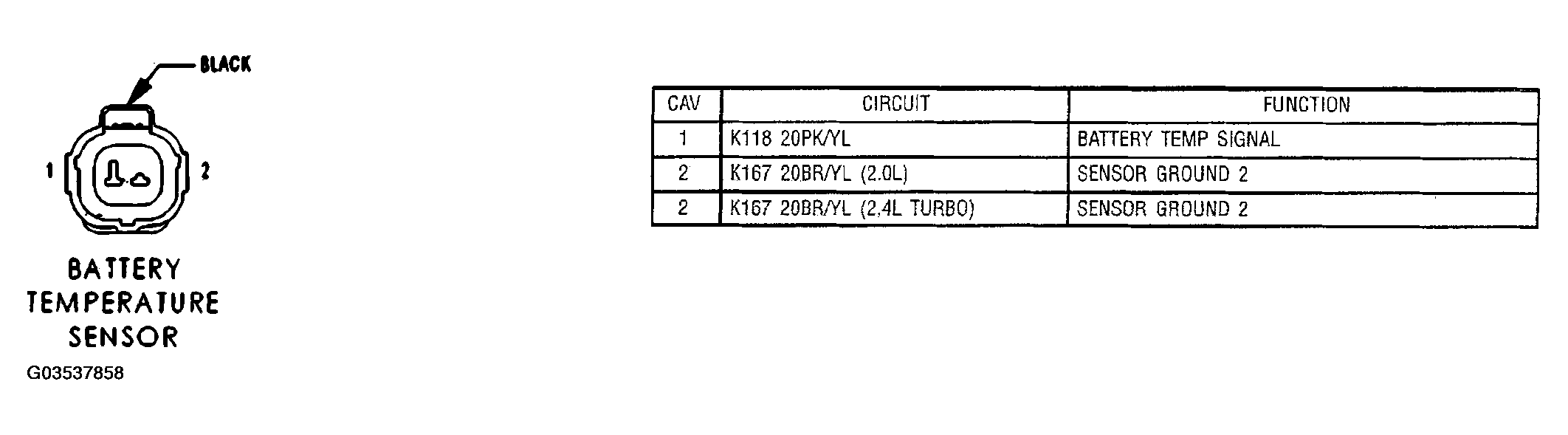

Fig 1: Battery Temperature Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
