Camshaft Position Sensor Connector End View
Camshaft Position Sensor Connector End View

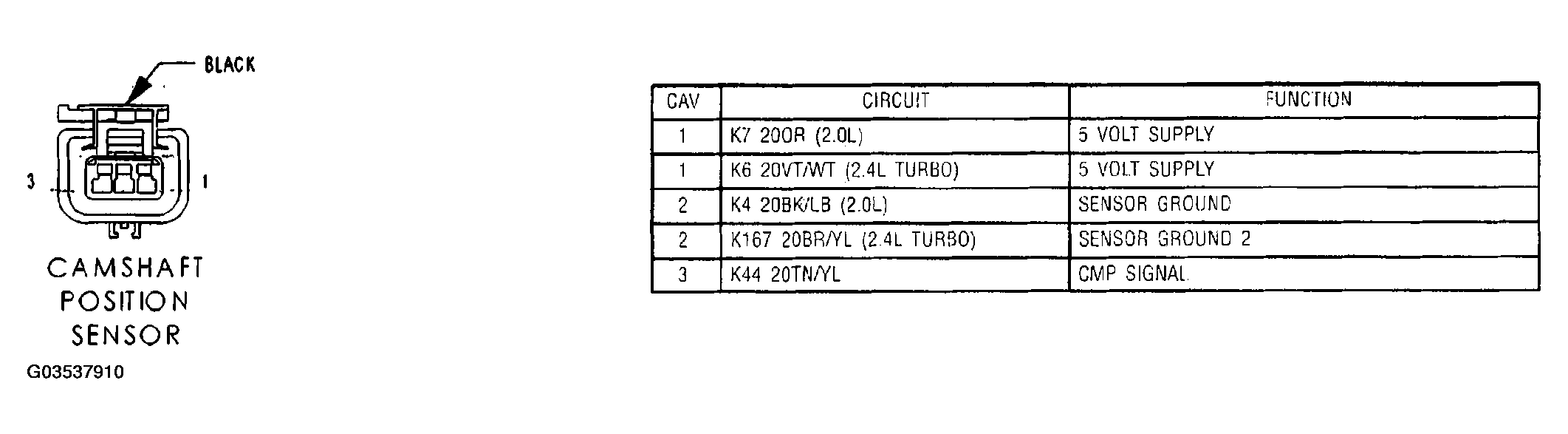

Fig 1: Camshaft Position Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
