Crankshaft Position Sensor Connector End View
Crankshaft Position Sensor Connector End View

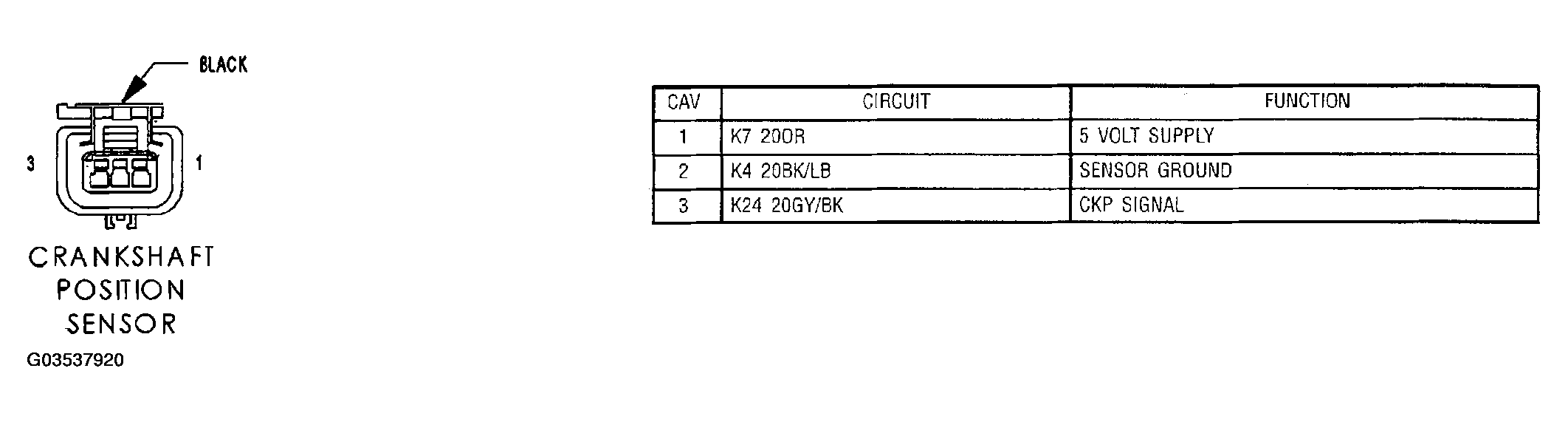

Fig 1: Crankshaft Position Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
