Driver Power Window Switch Connector End View (C1)

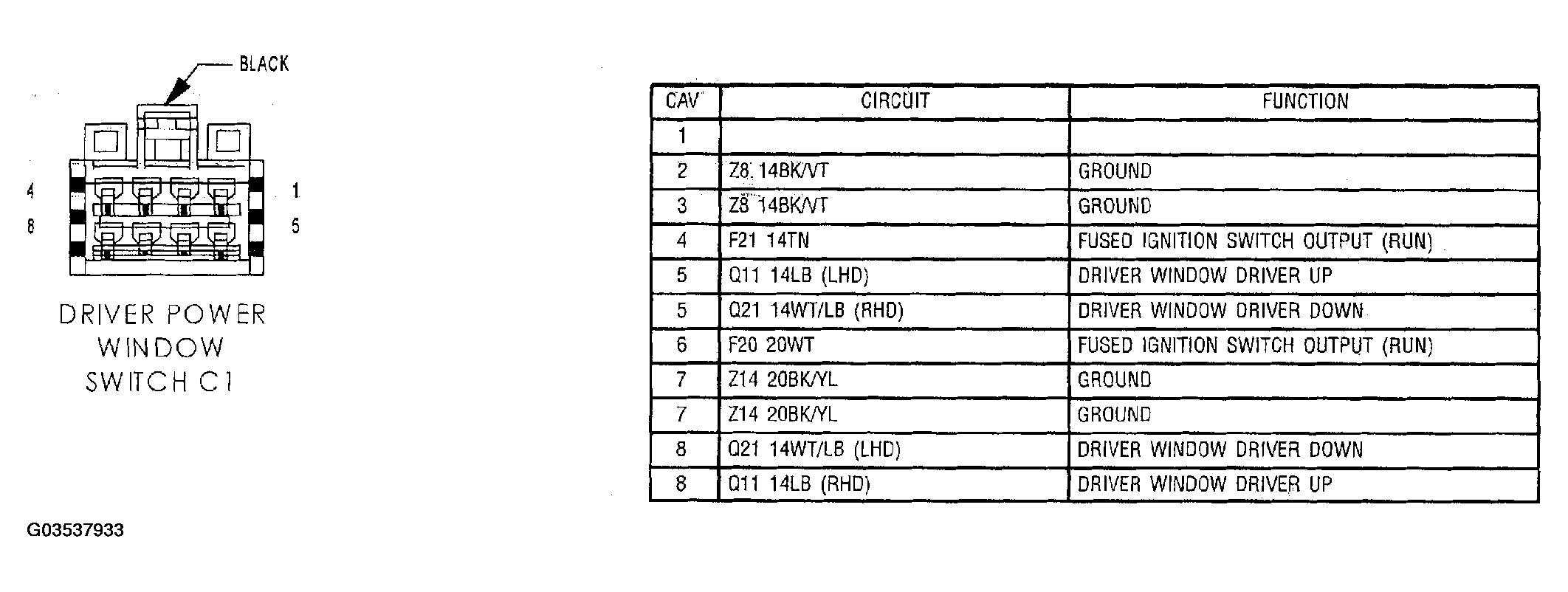

Fig 1: Driver Power Window Switch Connector End View (C1)
G03537933Courtesy of DAIMLERCHRYSLER CORP.
