Instrument Cluster Connector End View
Instrument Cluster Connector End View

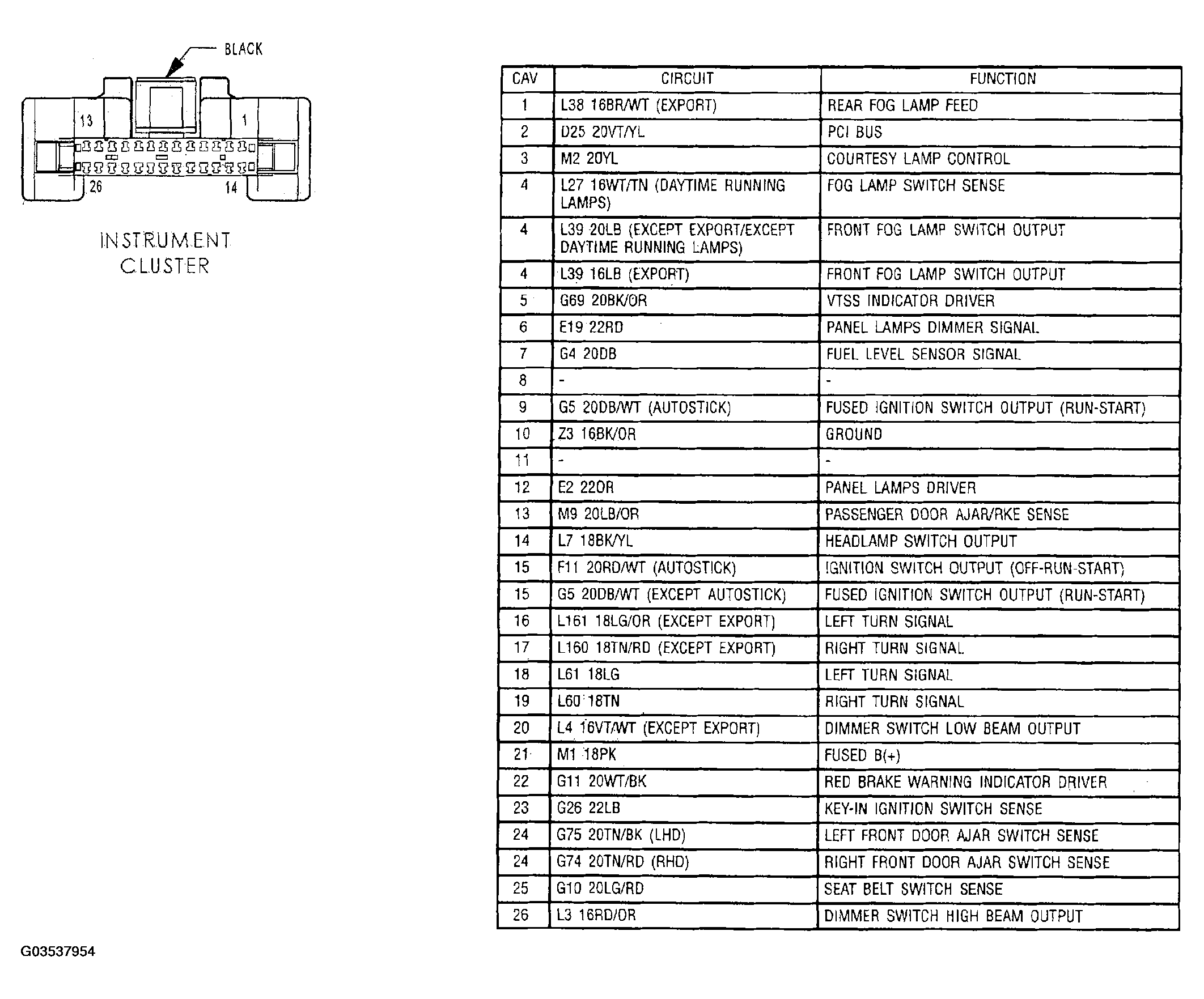

Fig 1: Instrument Cluster Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
