Connector End Views
›
Component
›
Left Lavalier Module (Export) Connector End View
Left Lavalier Module (Export) Connector End View

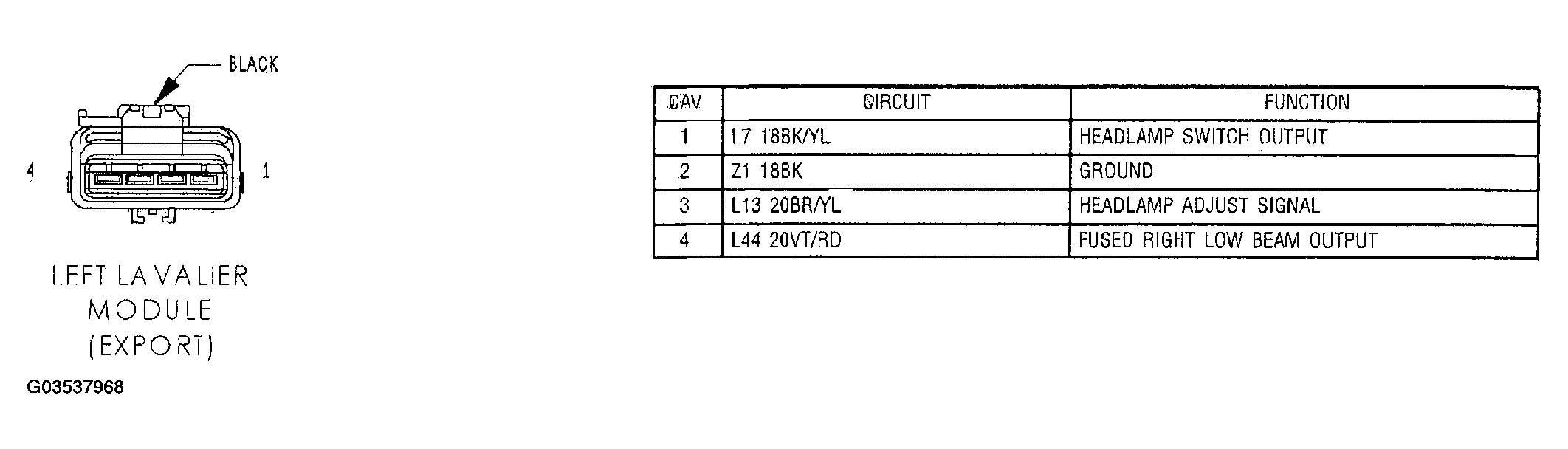

Fig 1: Left Lavalier Module (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
