Vehicle Speed Sensor Connector End View
Vehicle Speed Sensor Connector End View

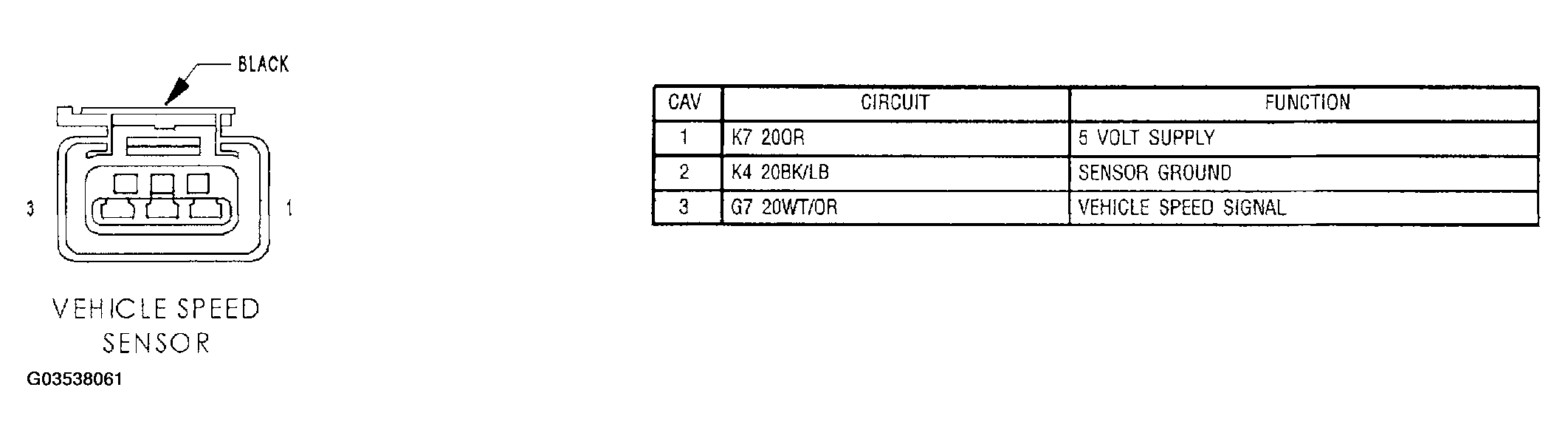

Fig 1: Vehicle Speed Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
