Installation - 1.6L

Make sure that the manifold is clean (Fig 1).

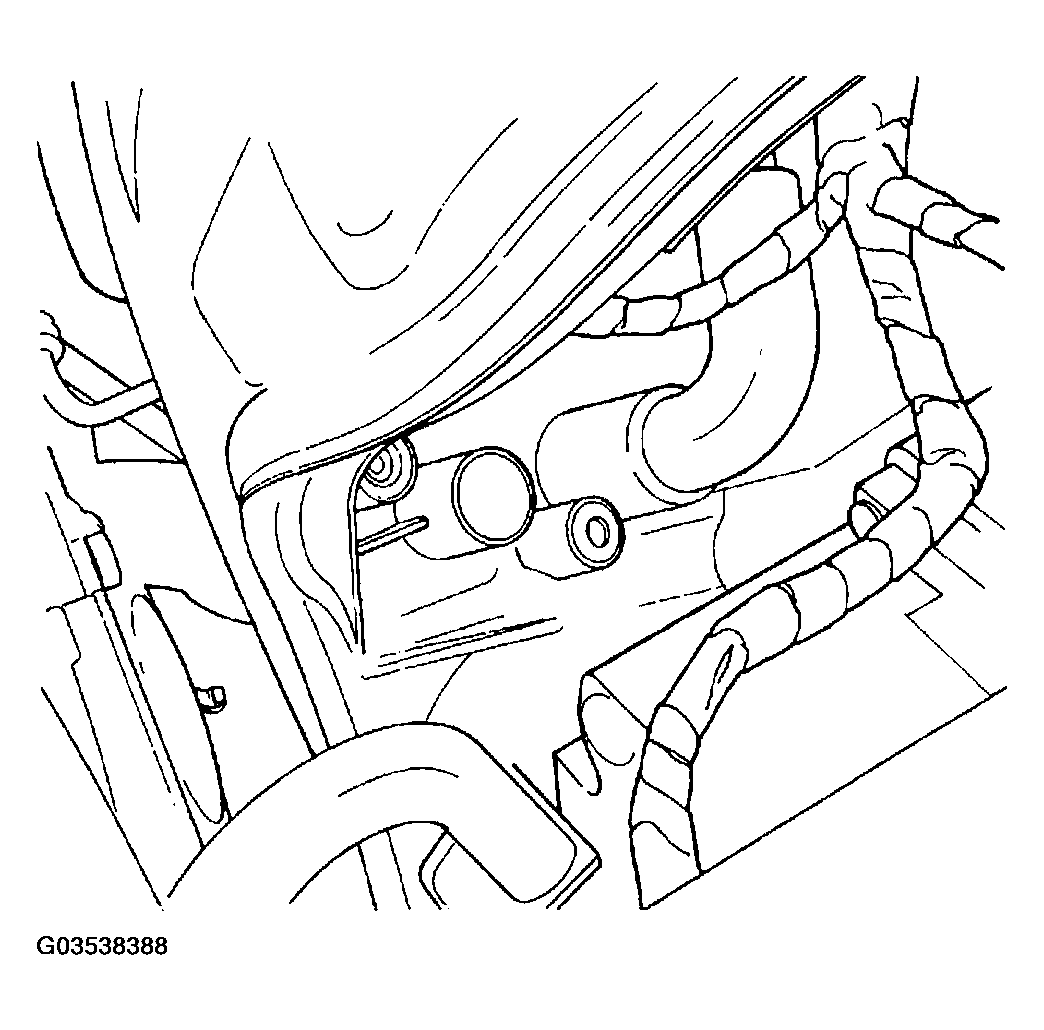

Fig 1: Installing MAP Sensor (1.6L)
Courtesy of DAIMLERCHRYSLER CORP.
Install sensor to manifold.
Tighten screws.
Connect the electrical connetor to the sensor.
Connect the negative battery cable
