Removal - 1.6L

Disconnect the negative battery cable.
Remove the electrical connector at the Manifold Absolute pressure (MAP) sensor (Fig 1).

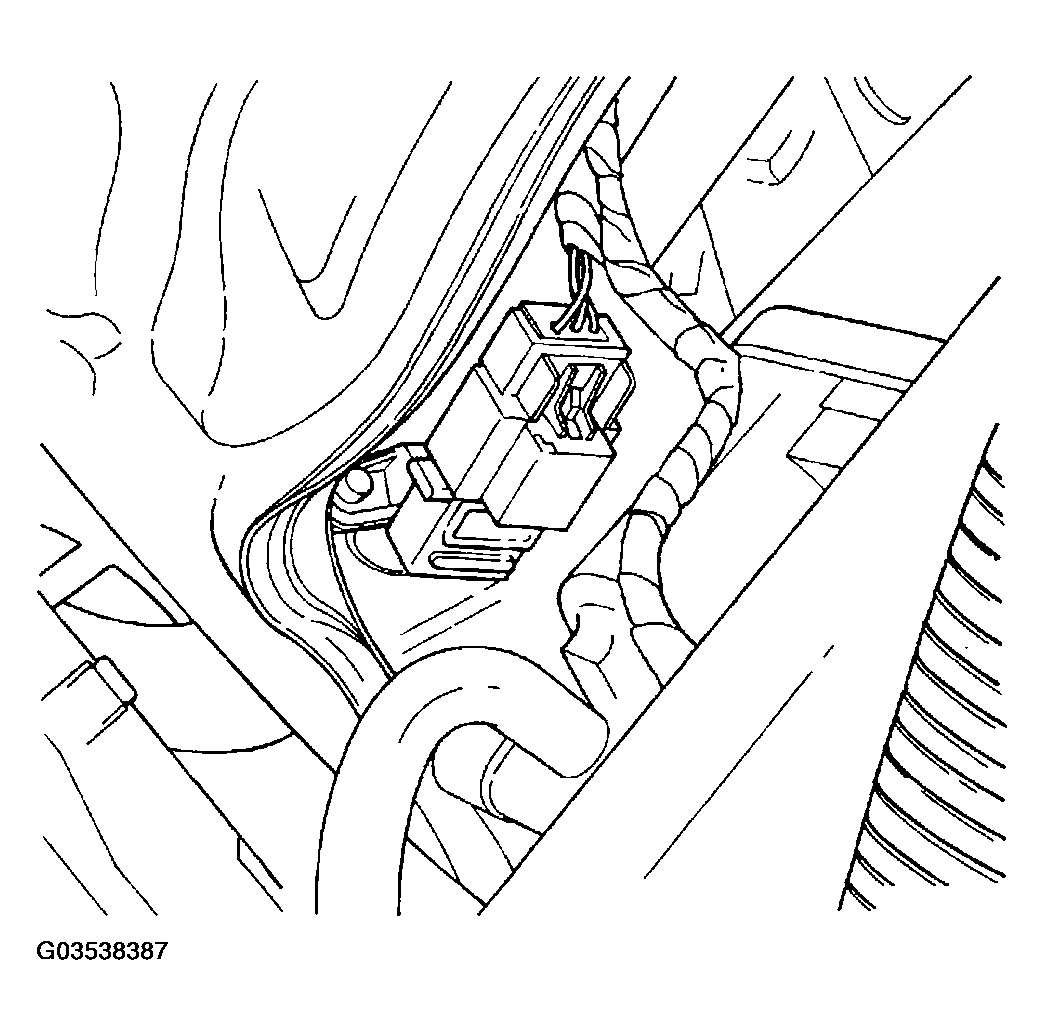

Fig 1: Locating MAP Sensor (1.6L)
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2 screws from sensor.
Remove sensor.
