Removal- 2.0L

The camshaft position sensor is mounted to the rear of the cylinder head (Fig 1 ).

1. Remove brake booster hose and electrical connector from holders on end of cylinder head cover and reposition.
   Fig 1: Locating Camshaft Position Sensor (2.0L)

   Courtesy of DAIMLERCHRYSLER CORP.
2. Disconnect electrical connectors from camshaft position sensor.
3. Remove camshaft position sensor mounting screws. Remove sensor.
4. Loosen screw attaching target magnet to rear of camshaft (Fig 2 ).

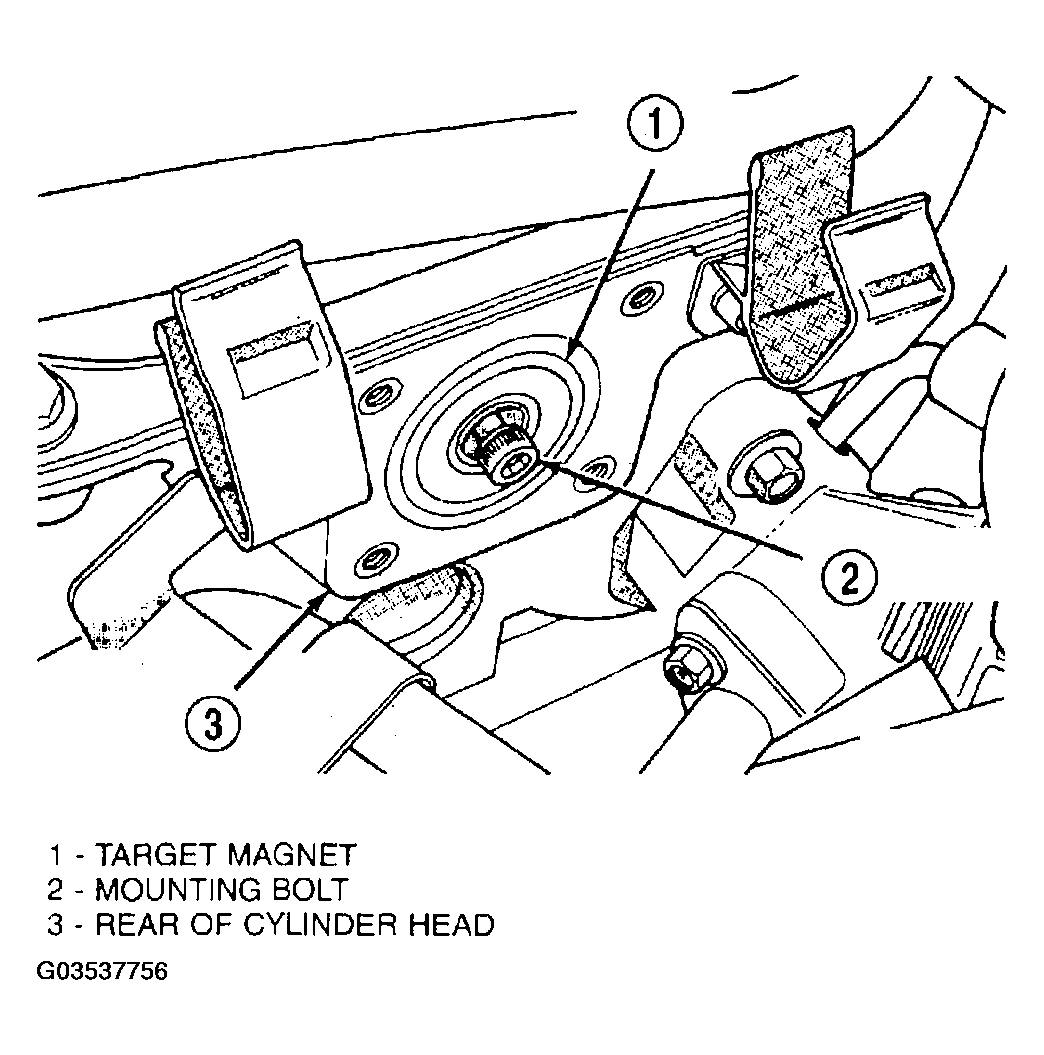

   Fig 2: Loosening Screw Attaching Target Magnet To Rear Of Camshaft

   Courtesy of DAIMLERCHRYSLER CORP.
