Removal - 2.0/2.4 Turbo/2.4L SRT-4

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold (Fig 1 ).

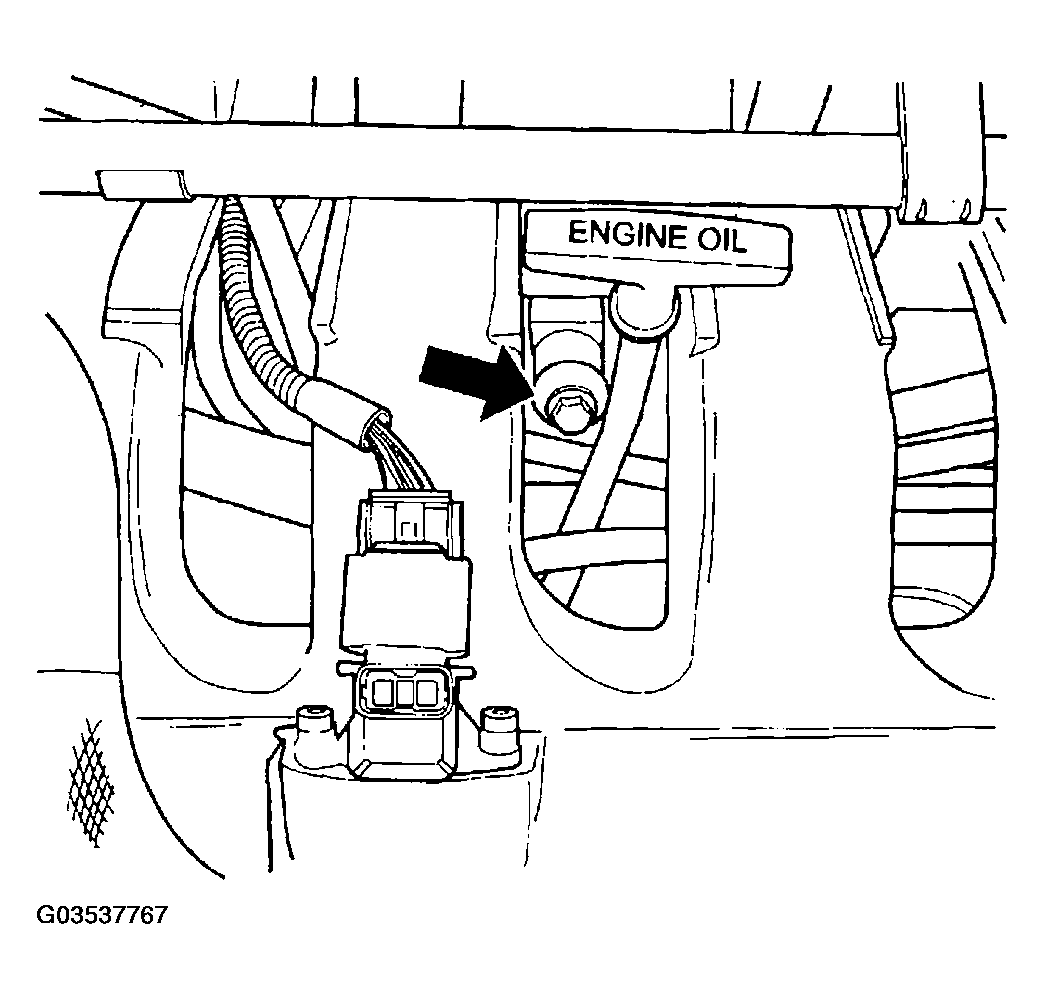

Fig 1: Locating Knock Sensor (2.0L/2.4L Turbo)

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the negative battery cable.
2. Disconnect electrical connector from knock sensor (Figure ).
3. Remove the bolt holding the knock sensor
4. Remove the knock sensor (Figure ).
