Fuel System

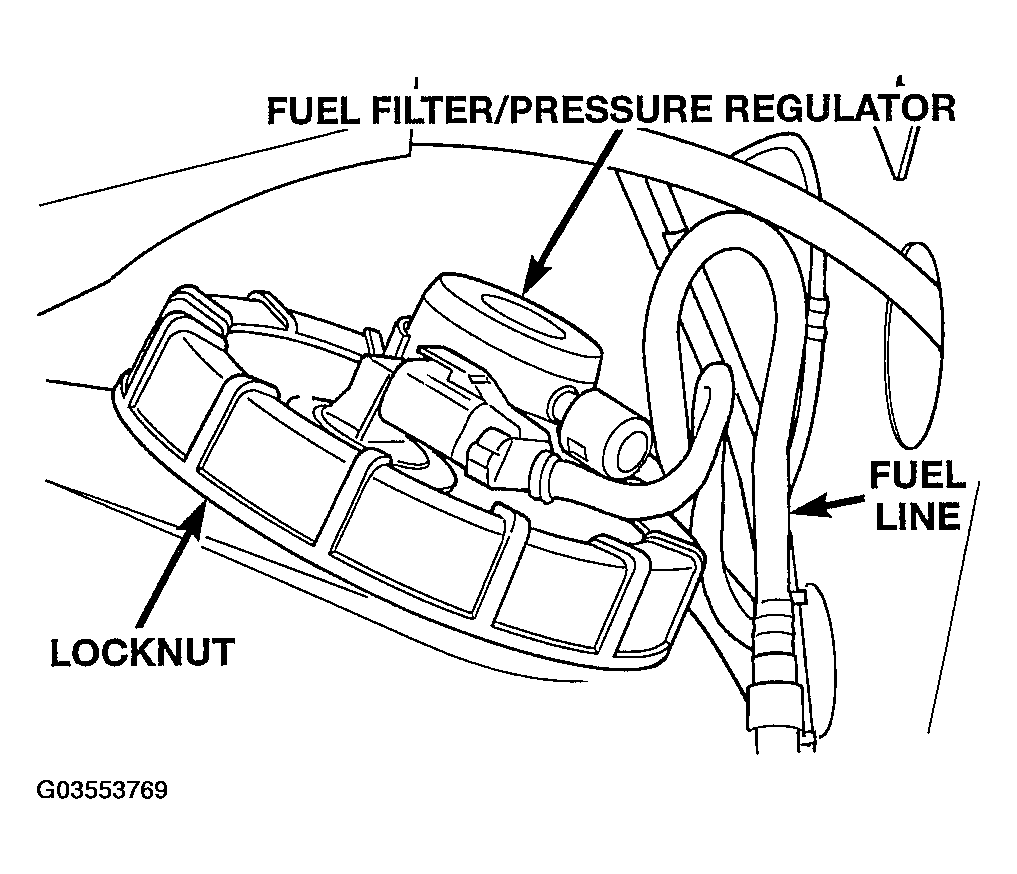

Fig 1: Identifying Fuel Filter/Pressure Regulator
G03553769Courtesy of DAIMLERCHRYSLER CORP.

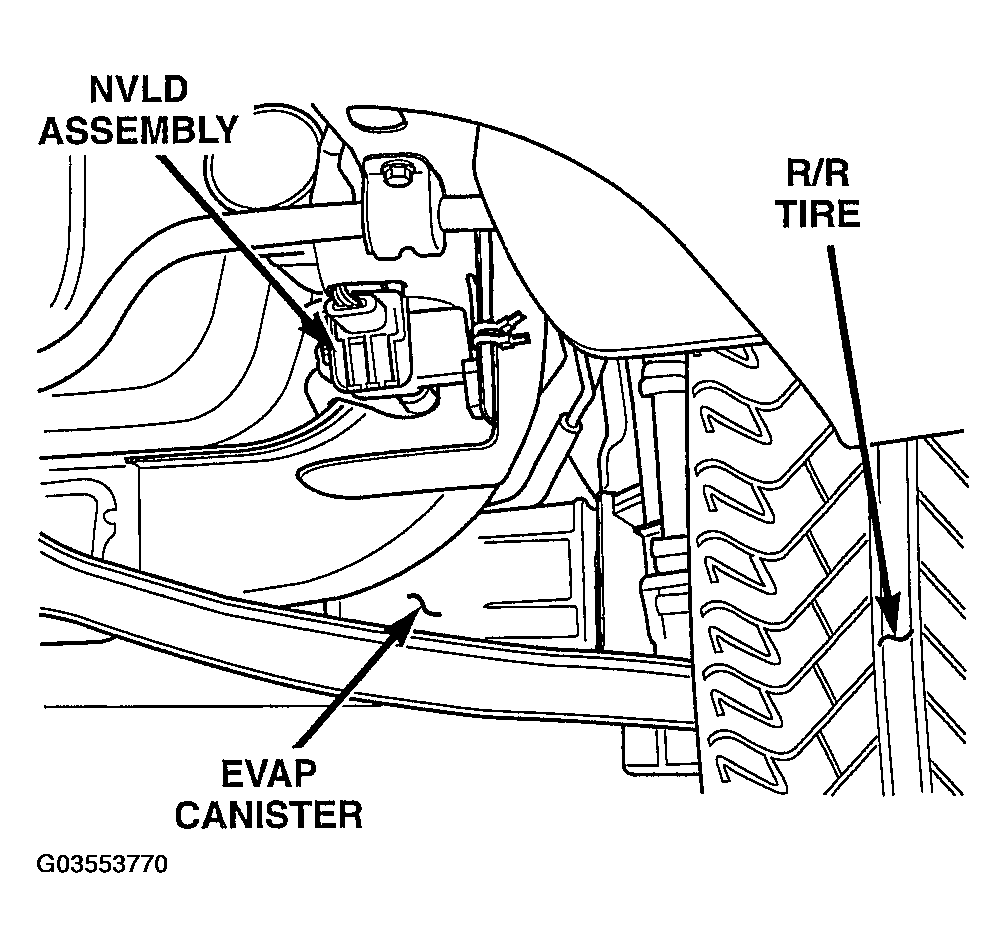

Fig 2: Identifying EVAP Canister And NVLD Assembly
G03553770Courtesy of DAIMLERCHRYSLER CORP.
