Powertrain Diagnostic Procedures
›
Schematic Diagrams
›
2004 Pl 2.0L Engine
2004 Pl 2.0L Engine

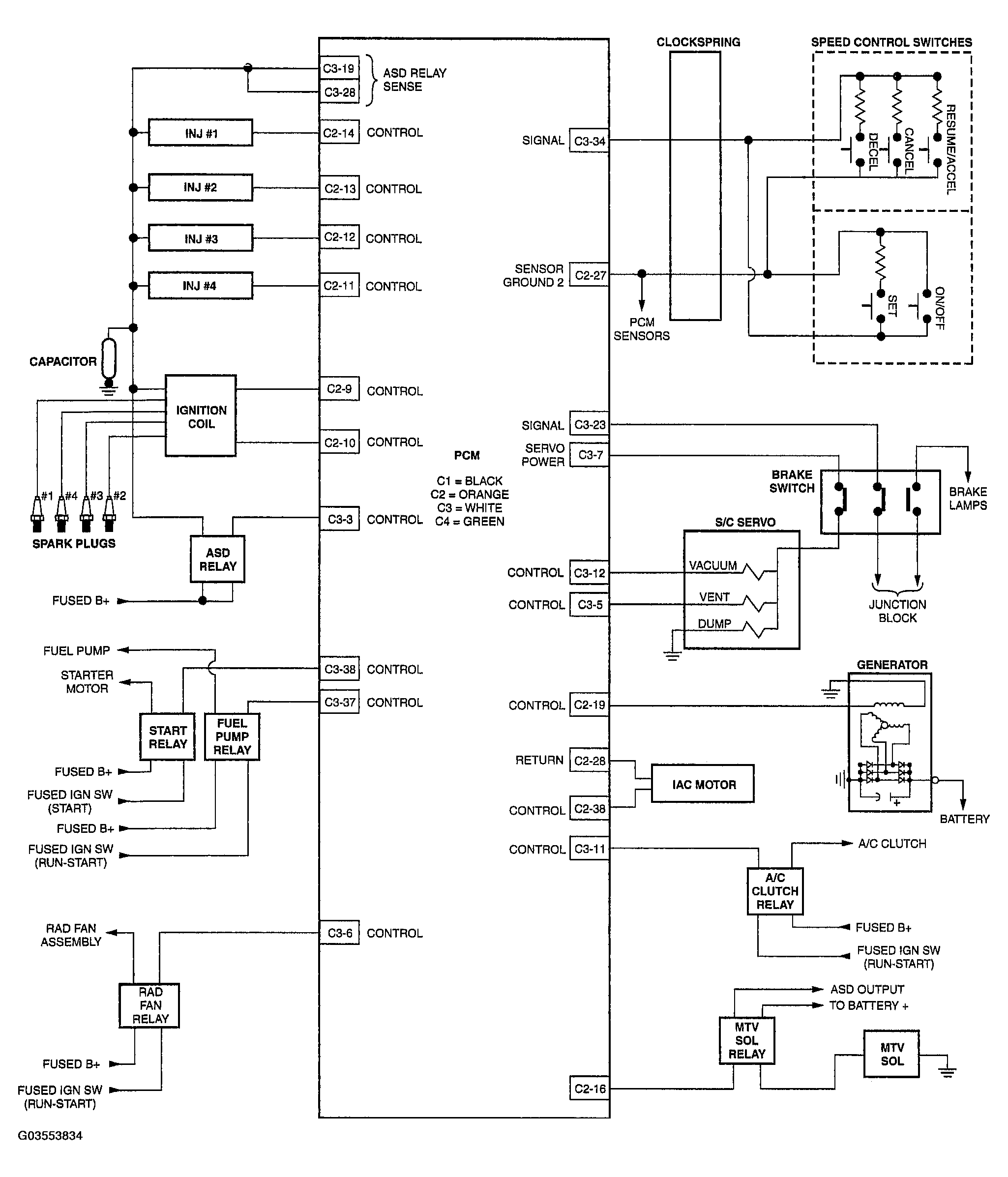

Fig 1: 2004 PL 2.0L Engine - Schematic Diagrams (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

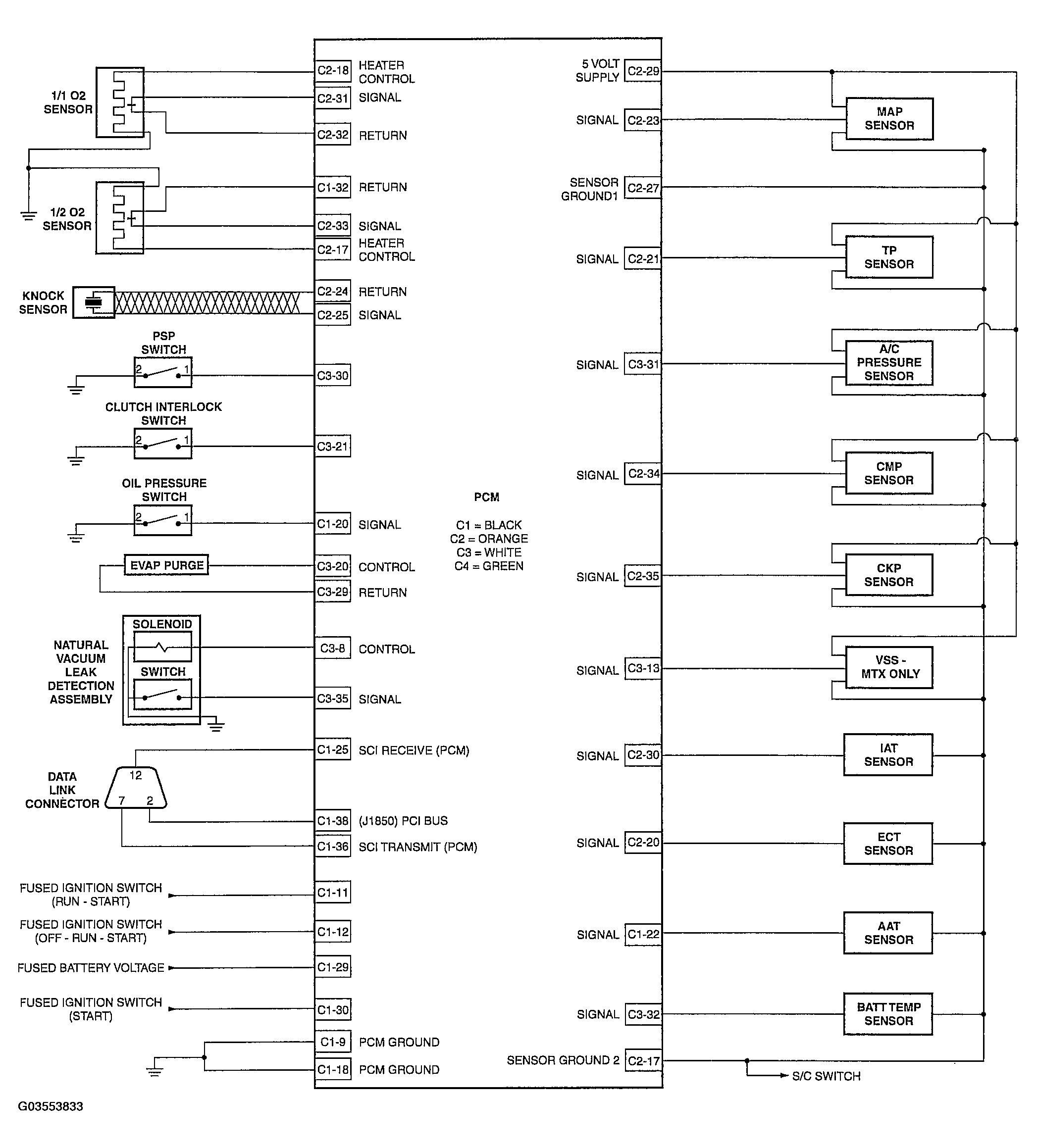

Fig 2: 2004 PL 2.0L Engine - Schematic Diagrams (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
