Left Door Lock Switch Connector End View
Left Door Lock Switch Connector End View

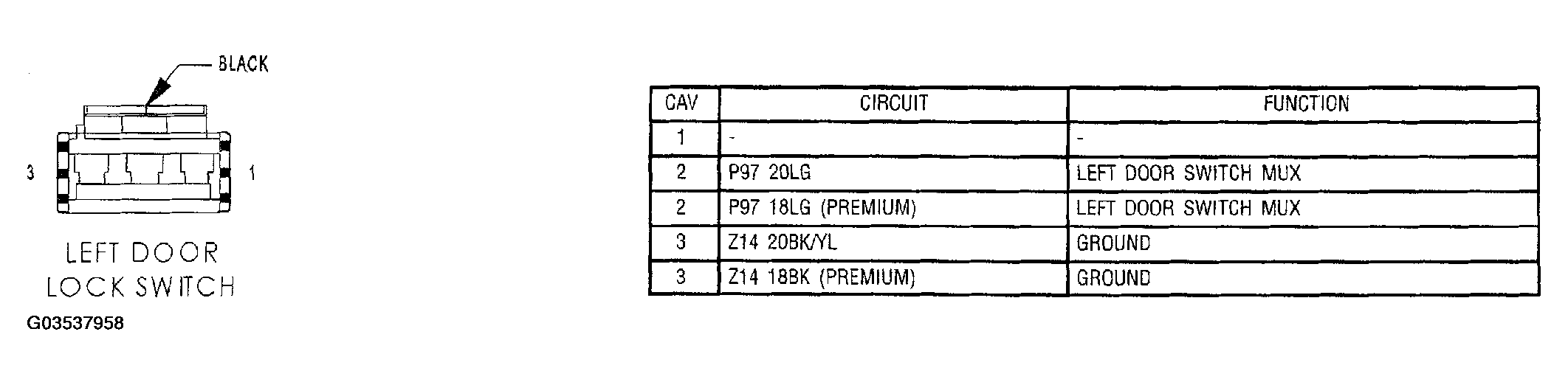

Fig 1: Left Door Lock Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
