Wiper Switch / Washer Switch Connector End View
Wiper Switch / Washer Switch Connector End View

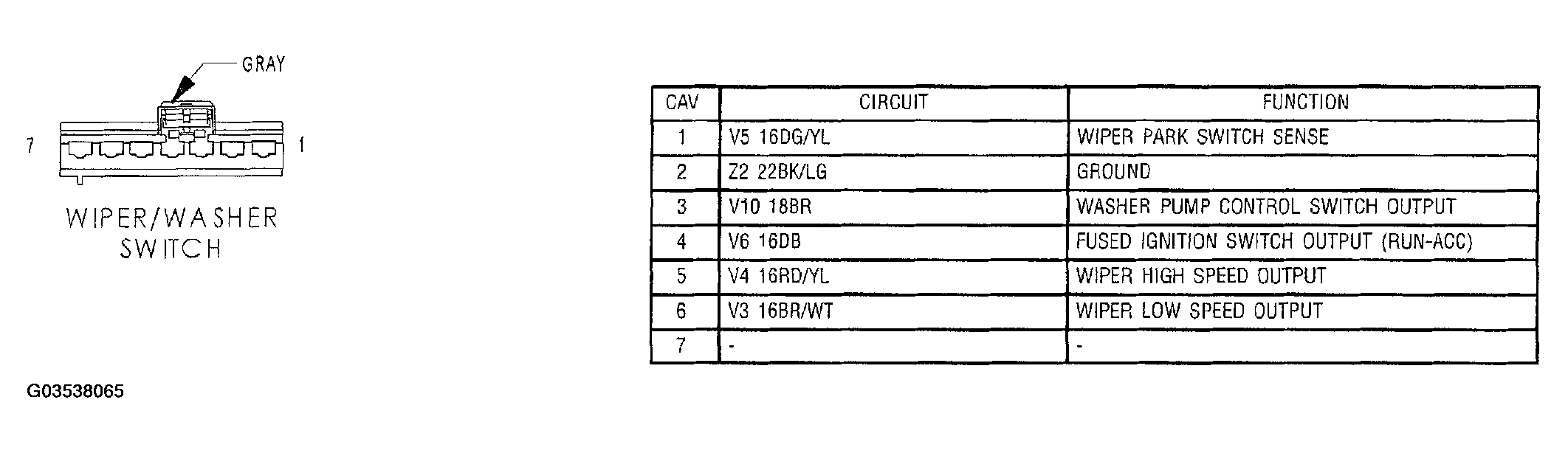

Fig 1: Wiper Switch / Washer Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
