Component Locations
›
Control Modules
Control Modules

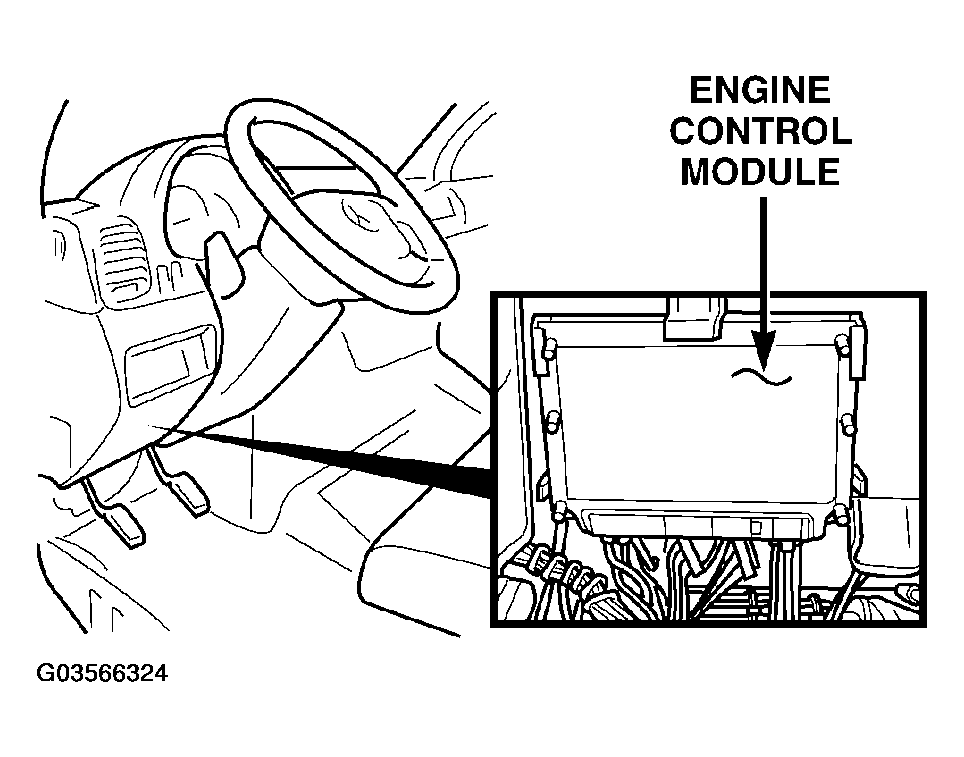

Fig 1: Identifying Control Modules Component Locations (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

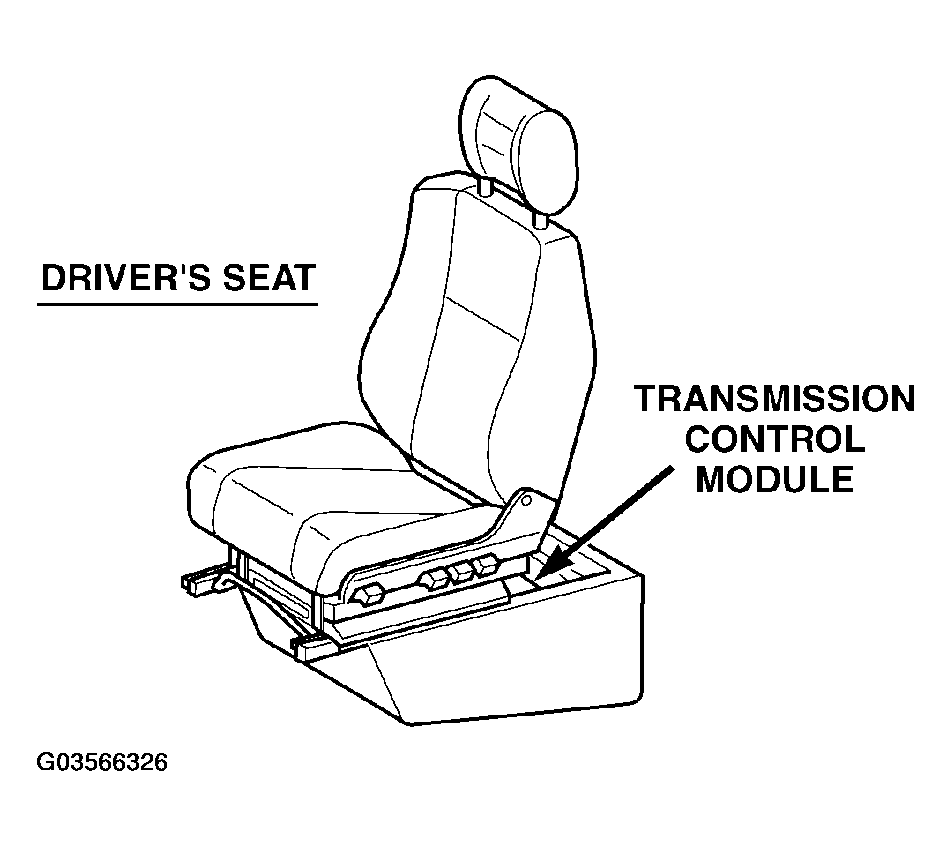

Fig 2: Identifying Control Modules Component Locations (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

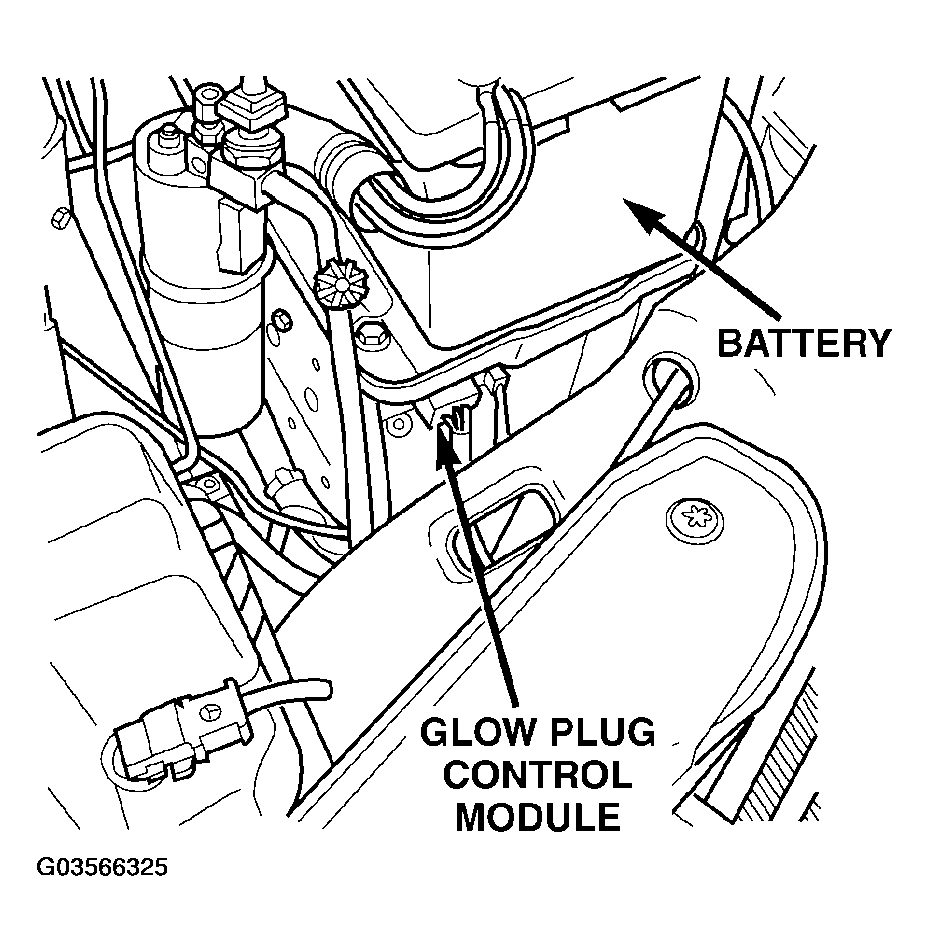

Fig 3: Identifying Control Modules Component Locations (3 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
