Component Locations: Sensors

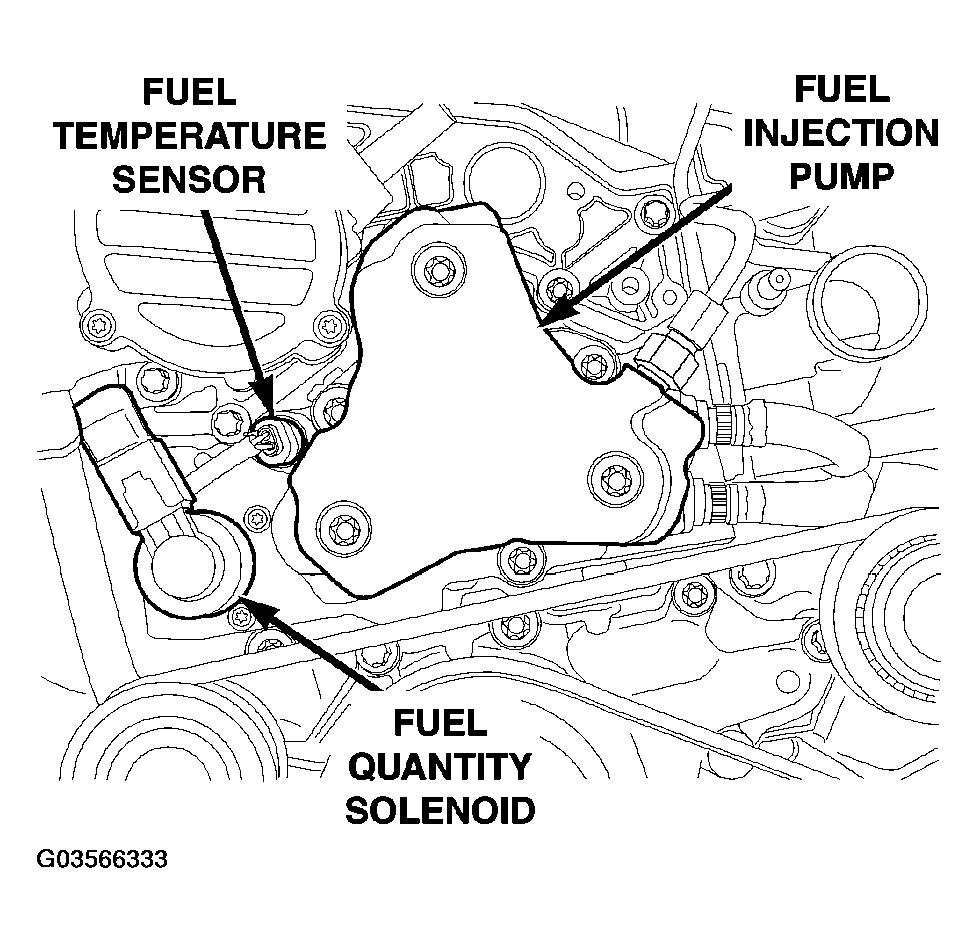

Fig 1: Identifying Sensors Location (1 Of 11)

G03566333

Courtesy of DAIMLERCHRYSLER CORP.

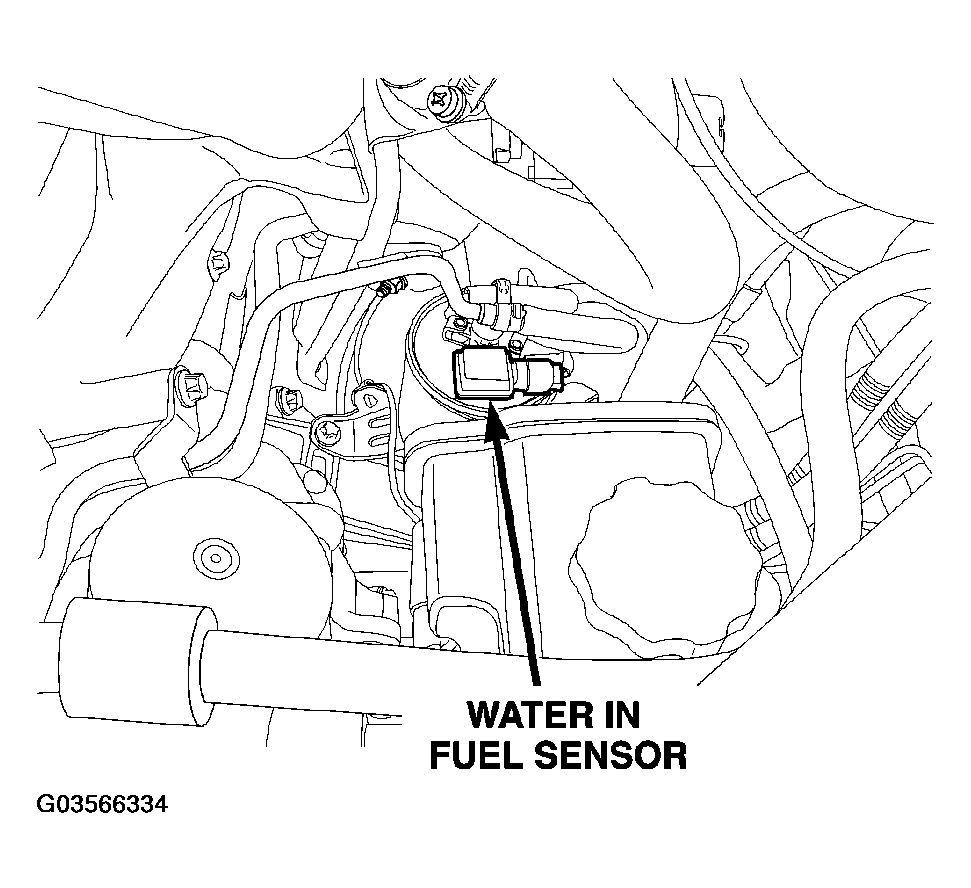

Fig 2: Identifying Sensors Location (2 Of 11)

G03566334

Courtesy of DAIMLERCHRYSLER CORP.

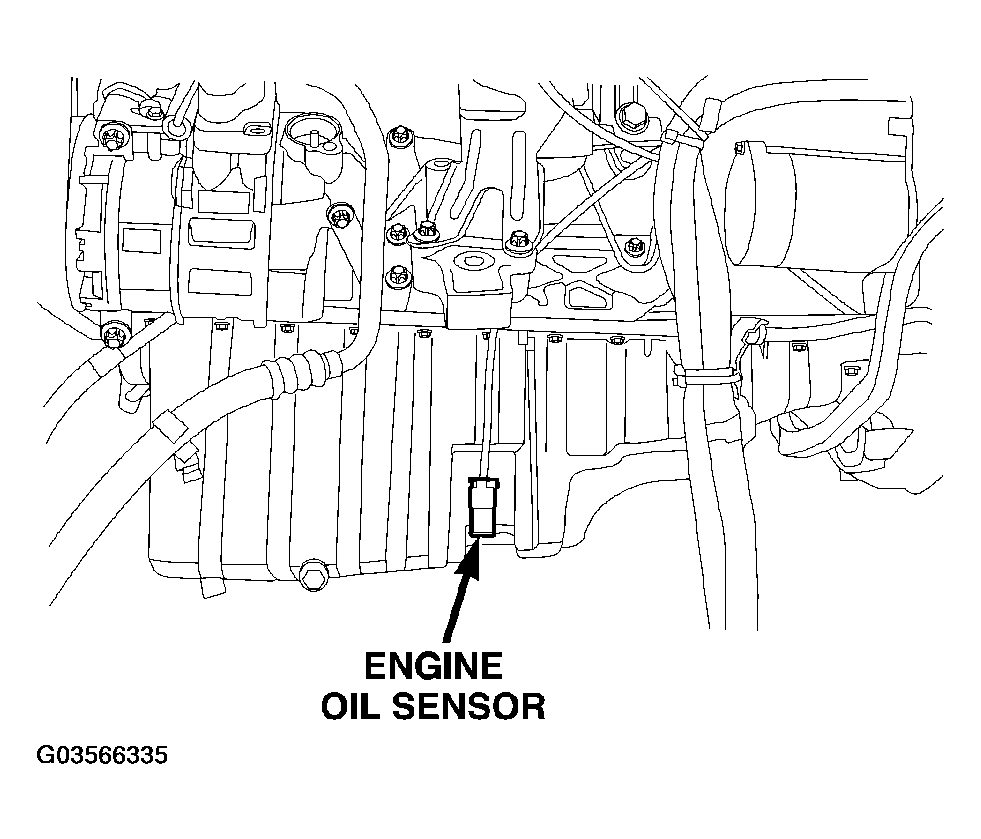

Fig 3: Identifying Sensors Location (3 Of 11)

G03566335

Courtesy of DAIMLERCHRYSLER CORP.

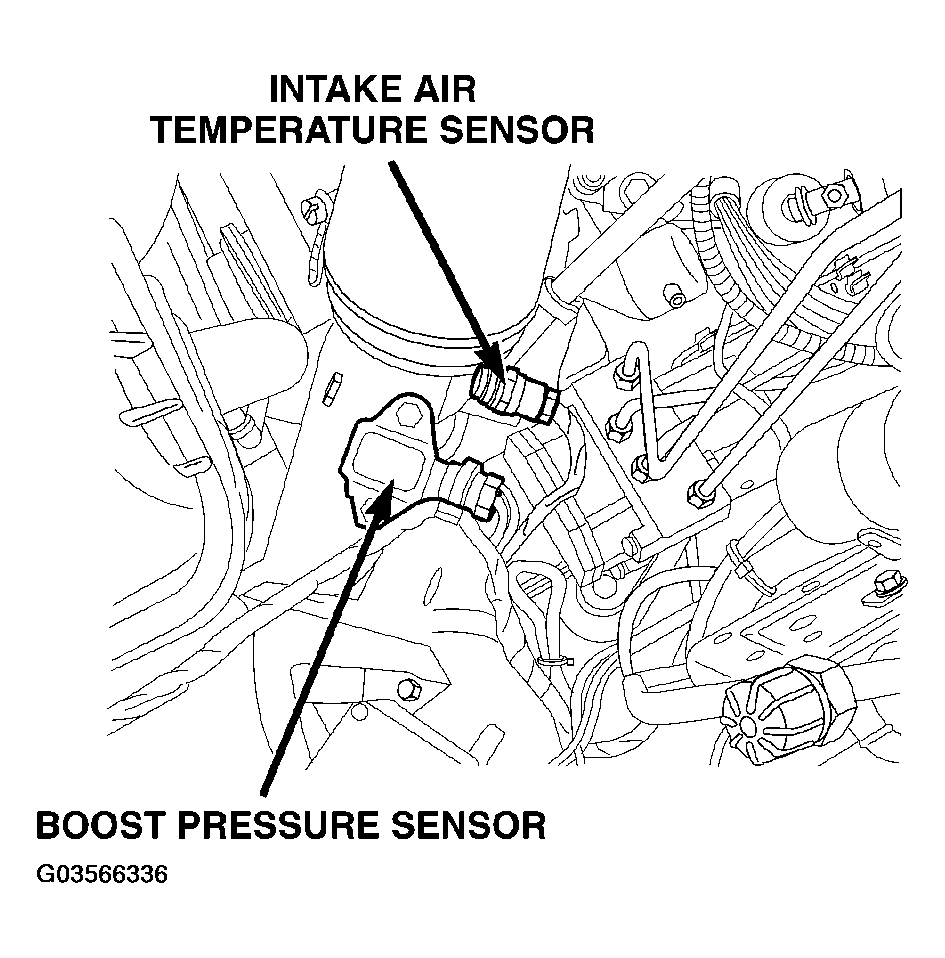

Fig 4: Identifying Sensors Location (4 Of 11)

G03566336

Courtesy of DAIMLERCHRYSLER CORP.

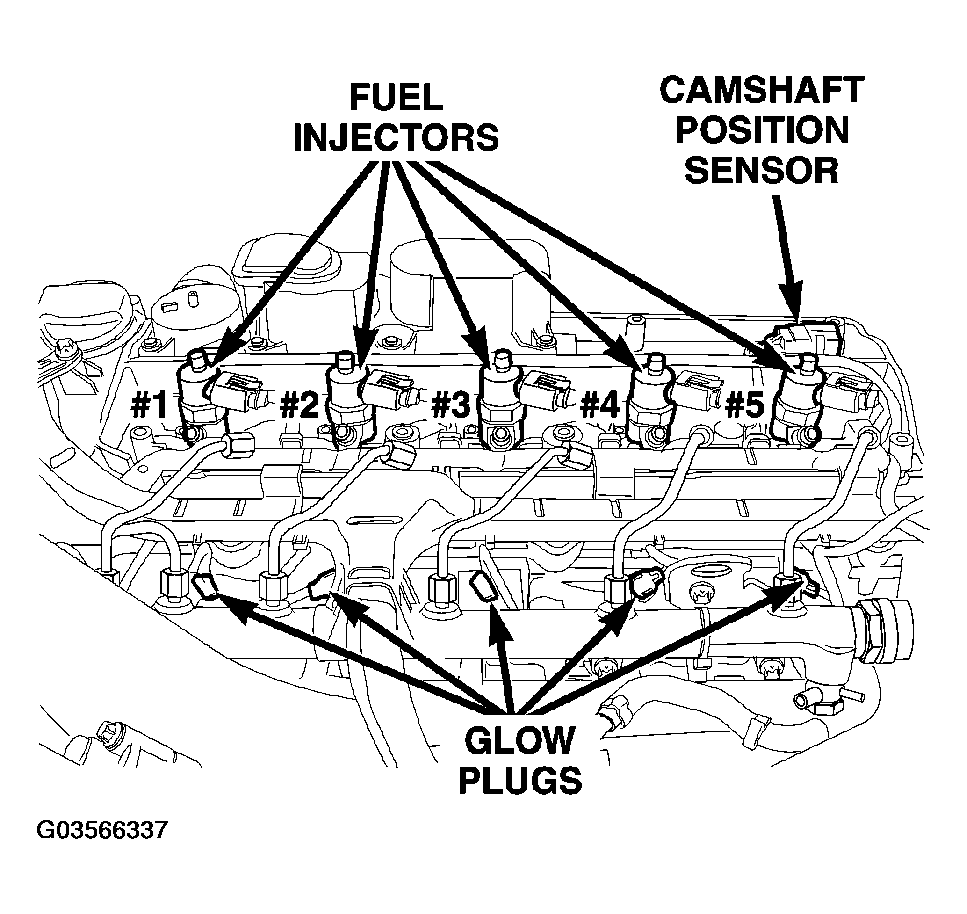

Fig 5: Identifying Sensors Location (5 Of 11)

G03566337

Courtesy of DAIMLERCHRYSLER CORP.

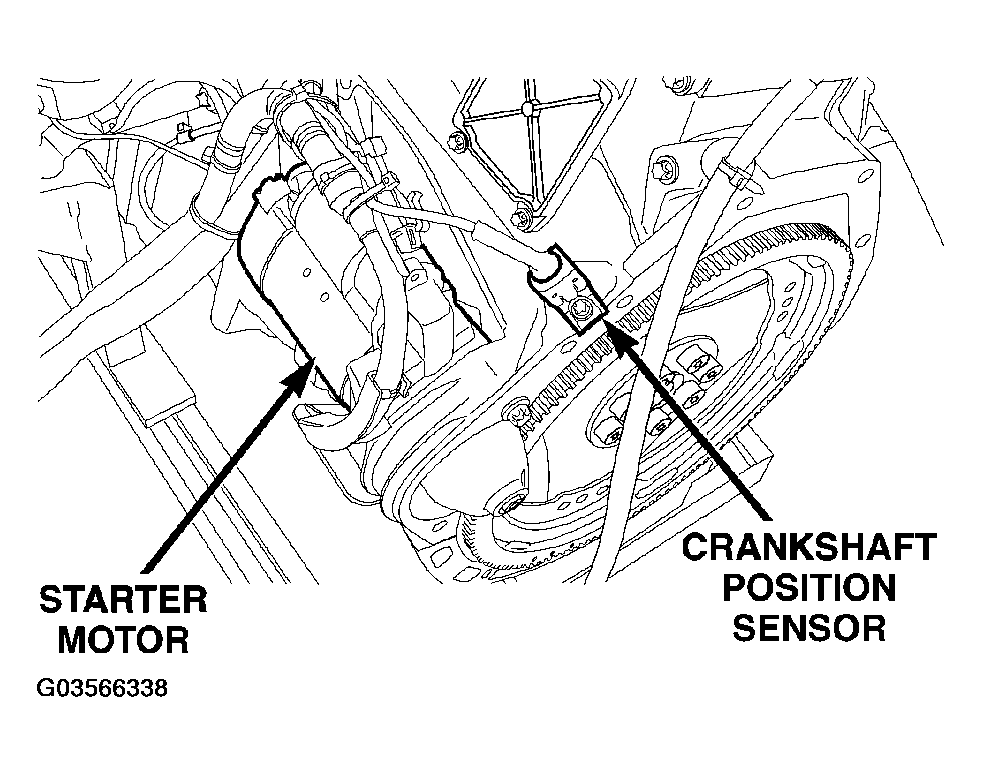

Fig 6: Identifying Sensors Location (6 Of 11)

G03566338

Courtesy of DAIMLERCHRYSLER CORP.

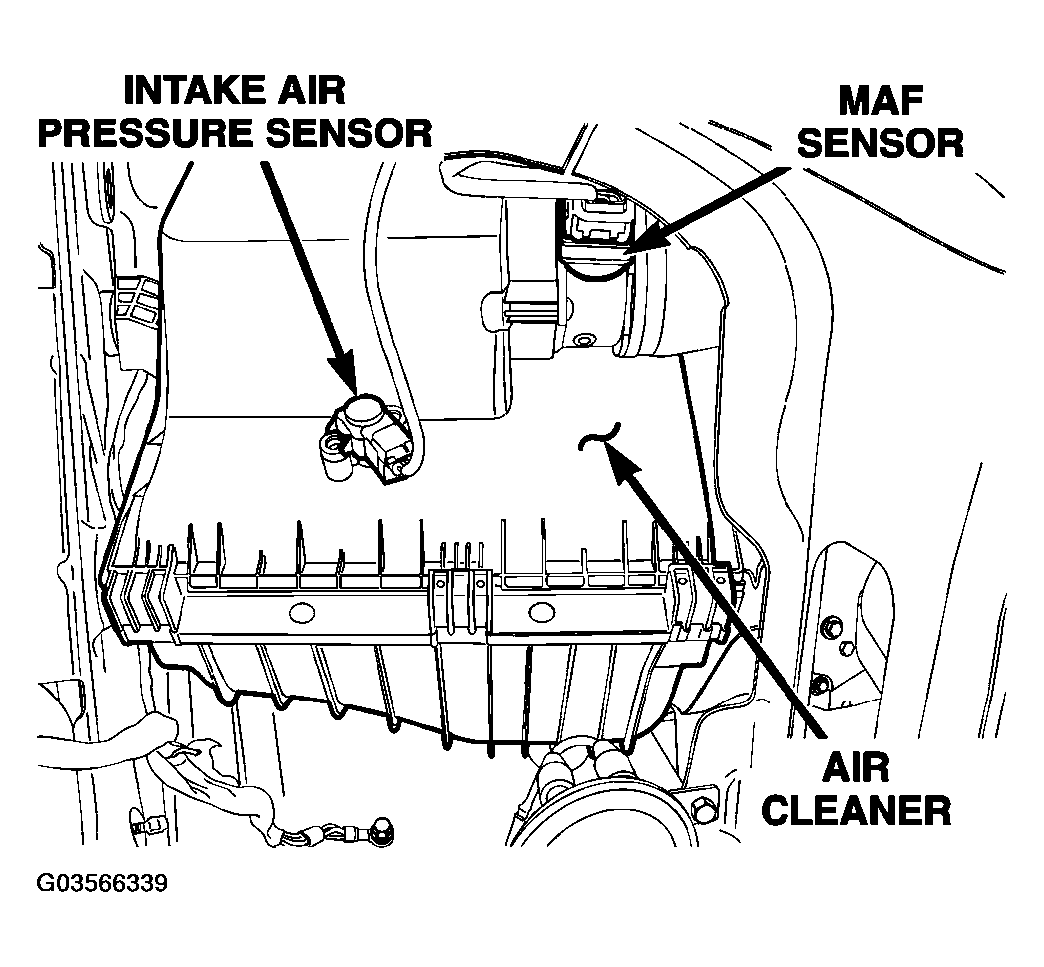

Fig 7: Identifying Sensors Location (7 Of 11)

G03566339

Courtesy of DAIMLERCHRYSLER CORP.

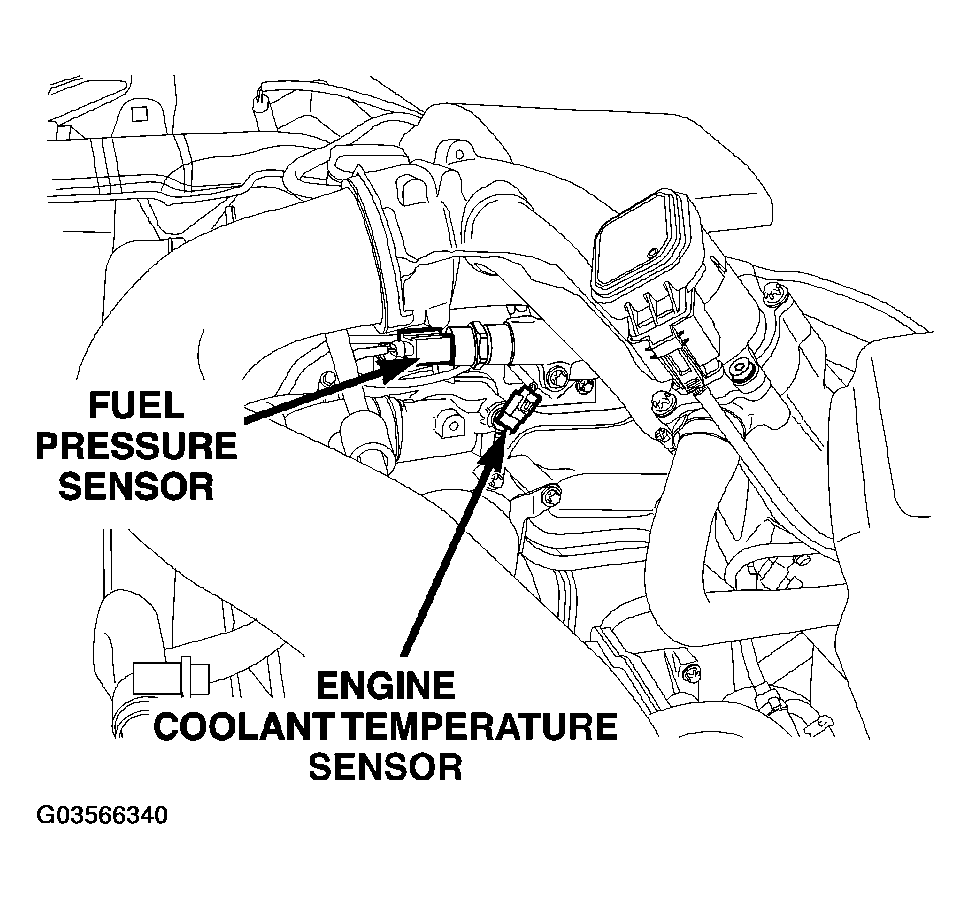

Fig 8: Identifying Sensors Location (8 Of 11)

G03566340

Courtesy of DAIMLERCHRYSLER CORP.

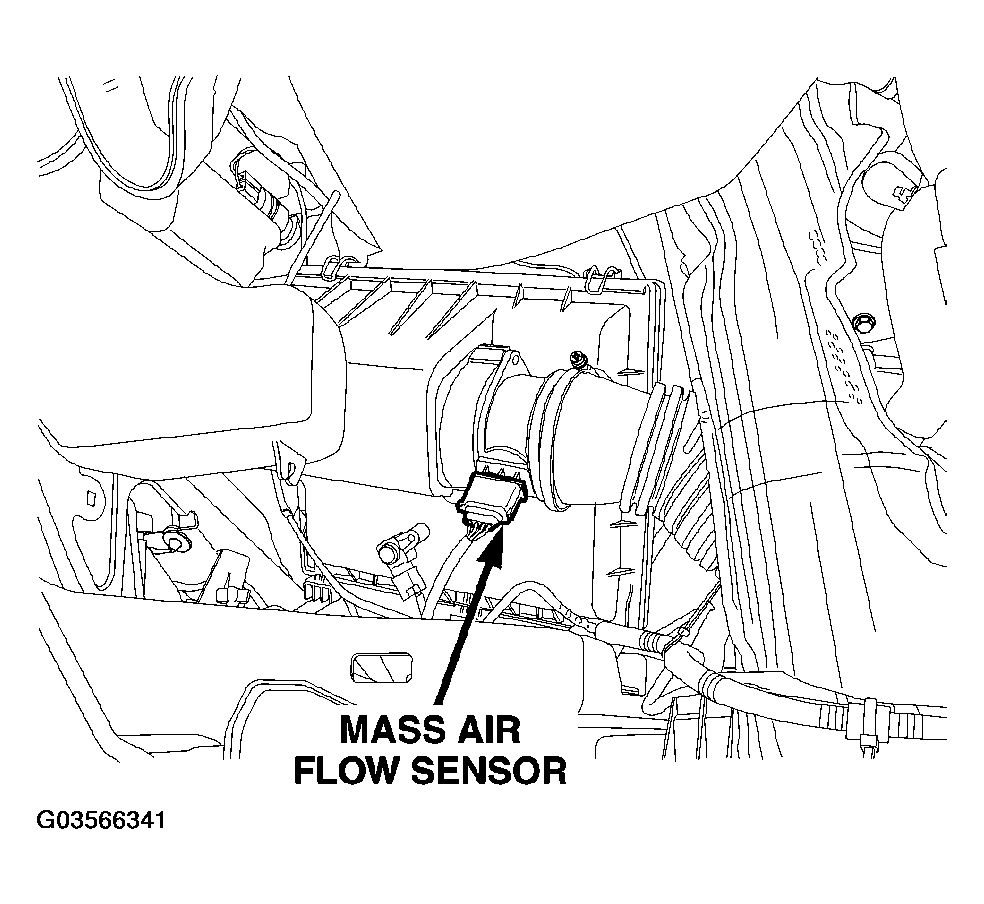

Fig 9: Identifying Sensors Location (9 Of 11)

G03566341

Courtesy of DAIMLERCHRYSLER CORP.

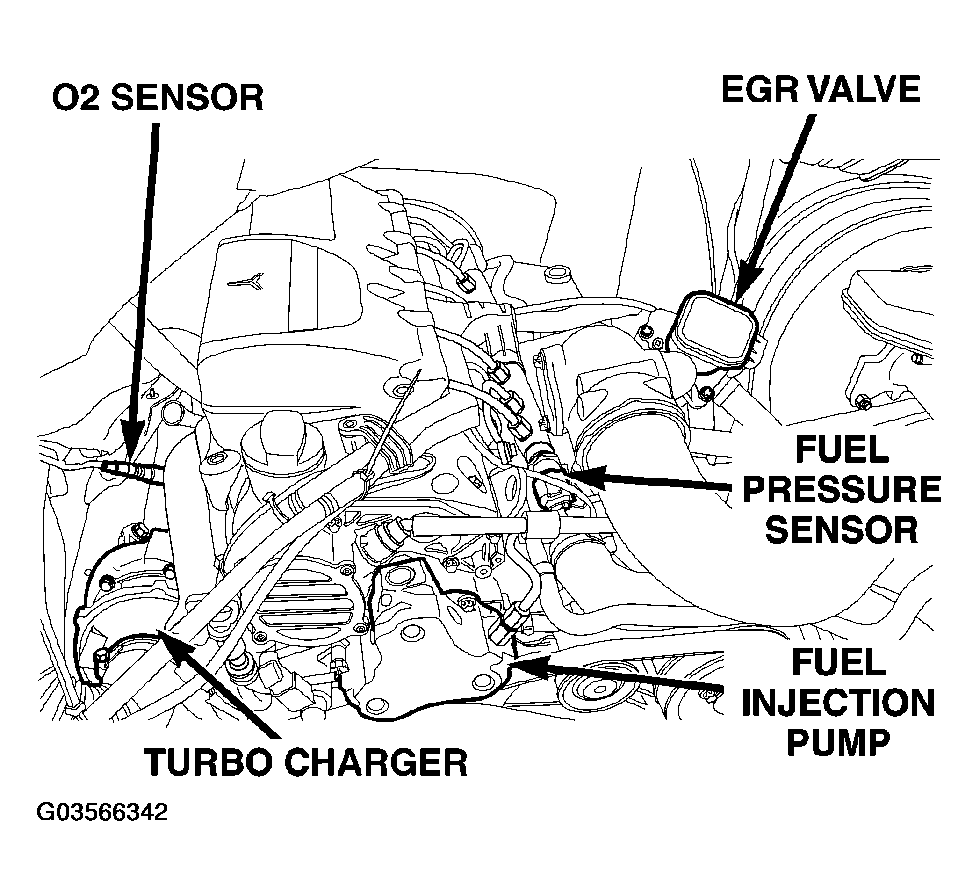

Fig 10: Identifying Sensors Location (10 Of 11)

G03566342

Courtesy of DAIMLERCHRYSLER CORP.

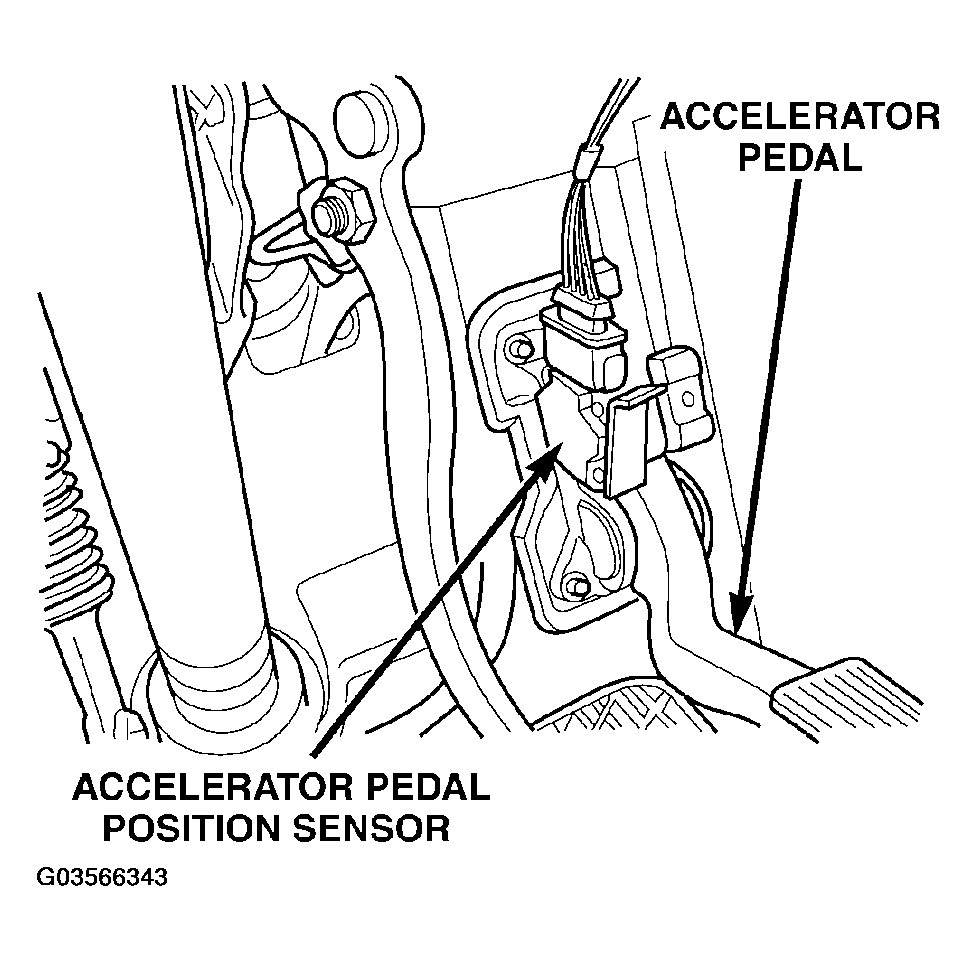

Fig 11: Identifying Sensors Location (11 Of 11)

G03566343

Courtesy of DAIMLERCHRYSLER CORP.
