Schematic Diagrams

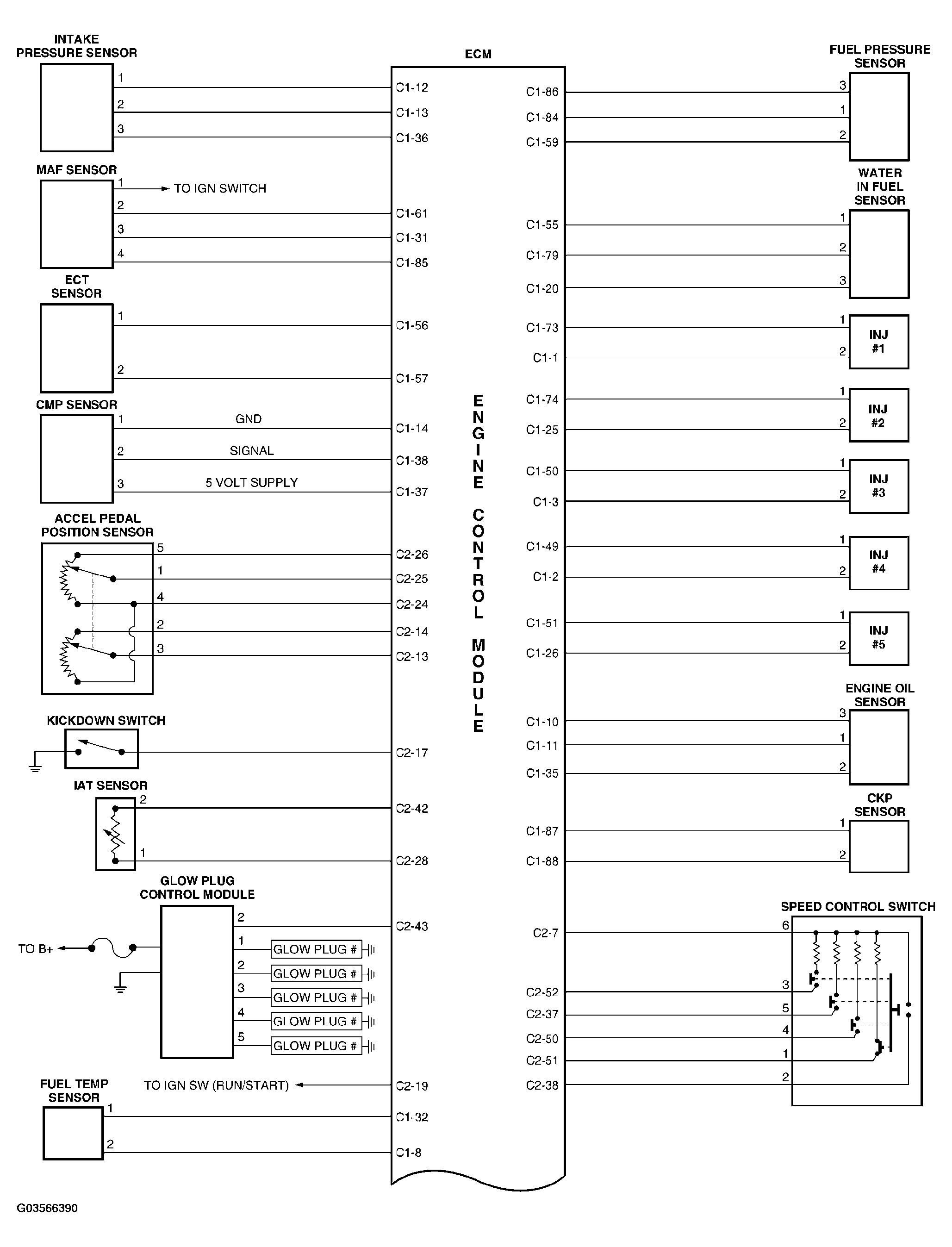

Fig 1: Identifying Engine Control Module Circuit Diagram (1 Of 2)
G03566390Courtesy of DAIMLERCHRYSLER CORP.

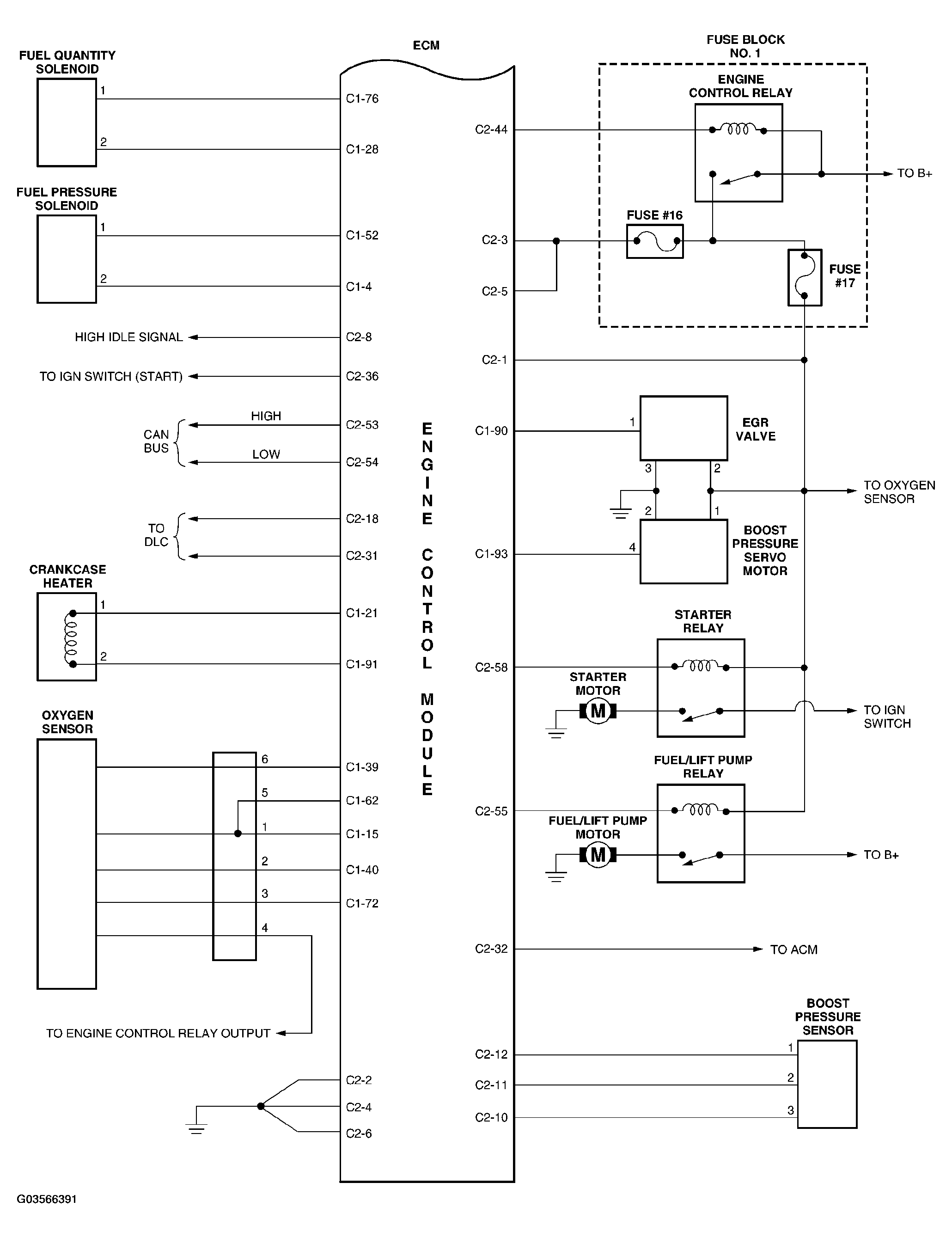

Fig 2: Identifying Engine Control Module Circuit Diagram (2 Of 2)
G03566391Courtesy of DAIMLERCHRYSLER CORP.
