Central Timer Module: Removal

1. Disconnect and isolate the battery negative cable.
2. Slide the driver seat to the full forward position.
3. Disconnect the wire harness connector for the seat belt latch. (Fig 1 ).
4. Remove the screws that secure the closeout panel beneathe the driver seat cushion and remove the panel.
5. Remove the screws that secure the central timer module to the bracket.
6. Disconnect the wire harness connectors from the central timer module.
7. Remove the central timer module from the vehicle.

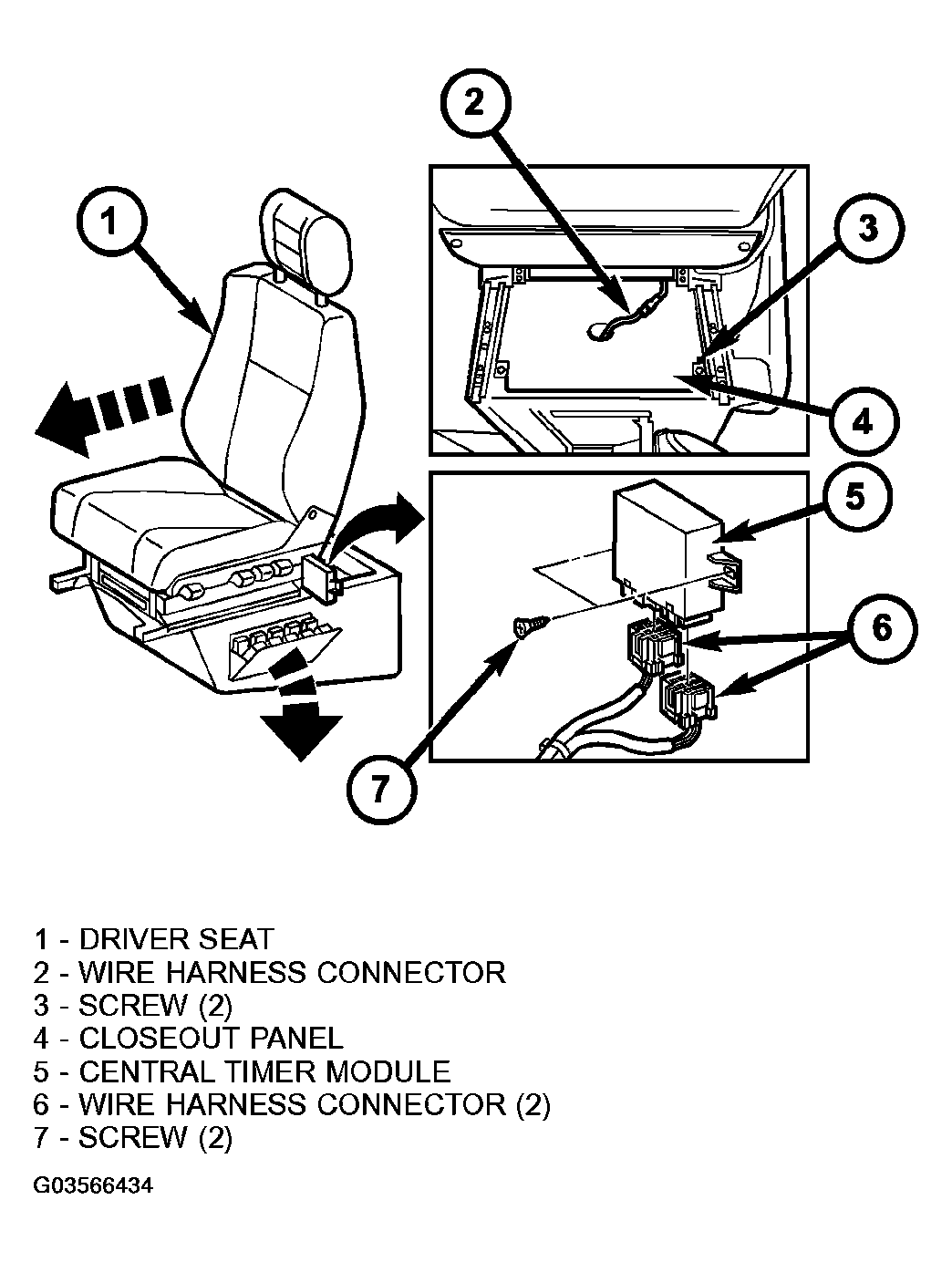

Fig 1: Removing/Installing Central Timer Module

Courtesy of DAIMLERCHRYSLER CORP.
