Multi-Function Switch - Gray 20 Way
Multi-Function Switch - Gray 20 Way

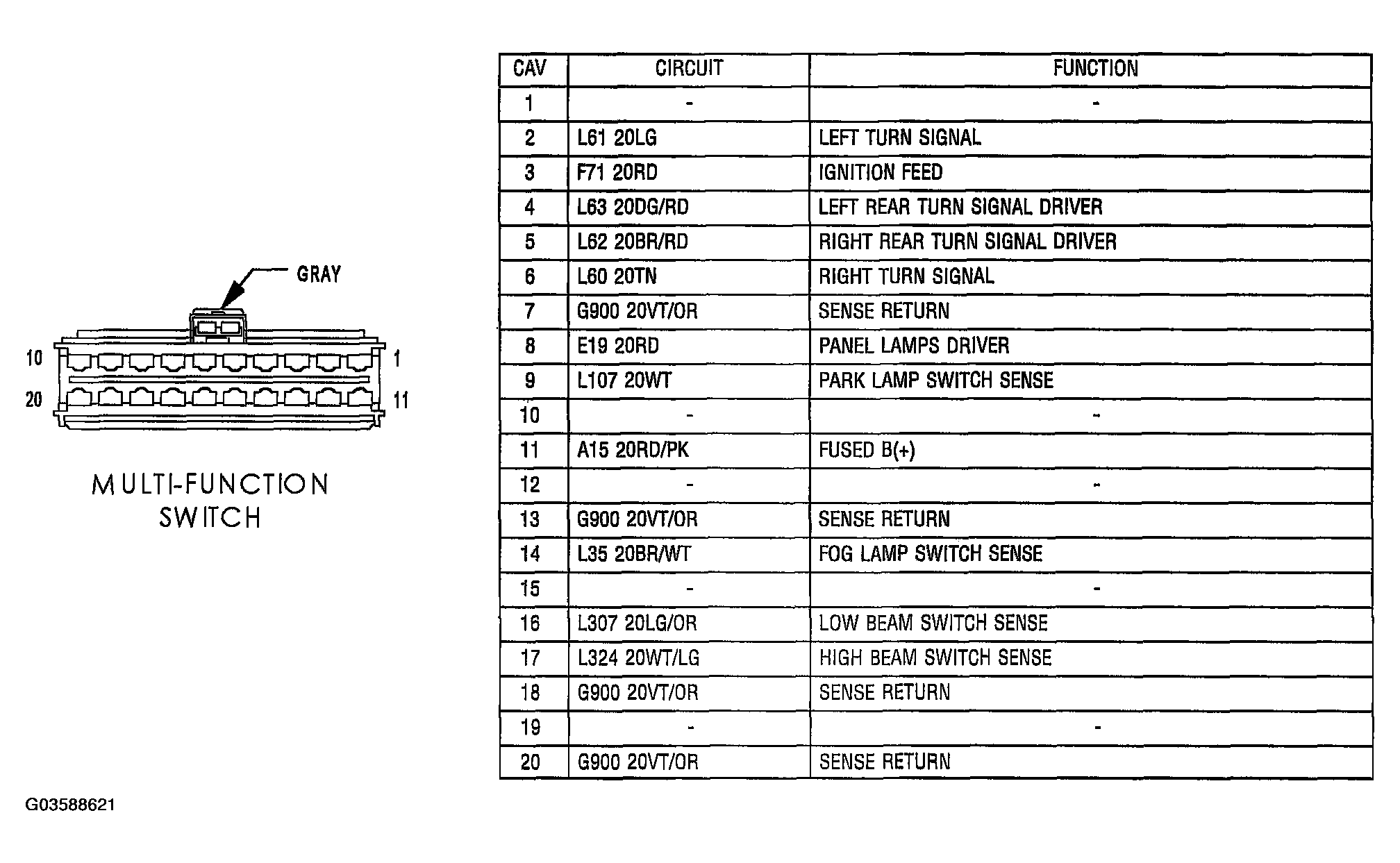

Fig 1: Identifying Multi-Function Switch Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
