Powertrain Control Module C3 - Black/Gray 32 Way

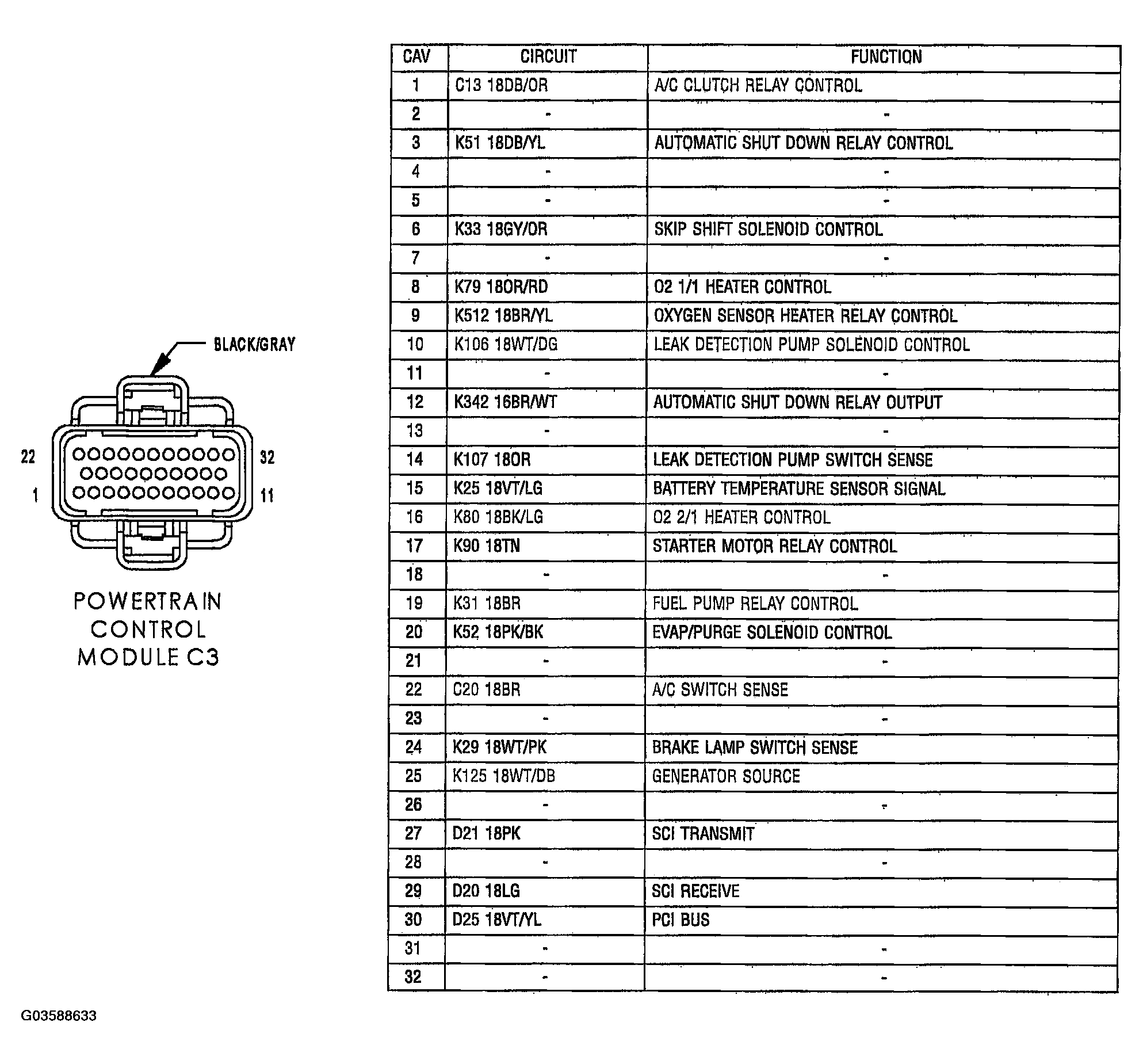

Fig 1: Identifying Powertrain Control Module C3 Connector Pinouts
G03588633Courtesy of DAIMLERCHRYSLER CORP.
