Powertrain Control Module C2 - Black/White 32 Way Connector End View
Powertrain Control Module C2 - Black/White 32 Way Connector End View

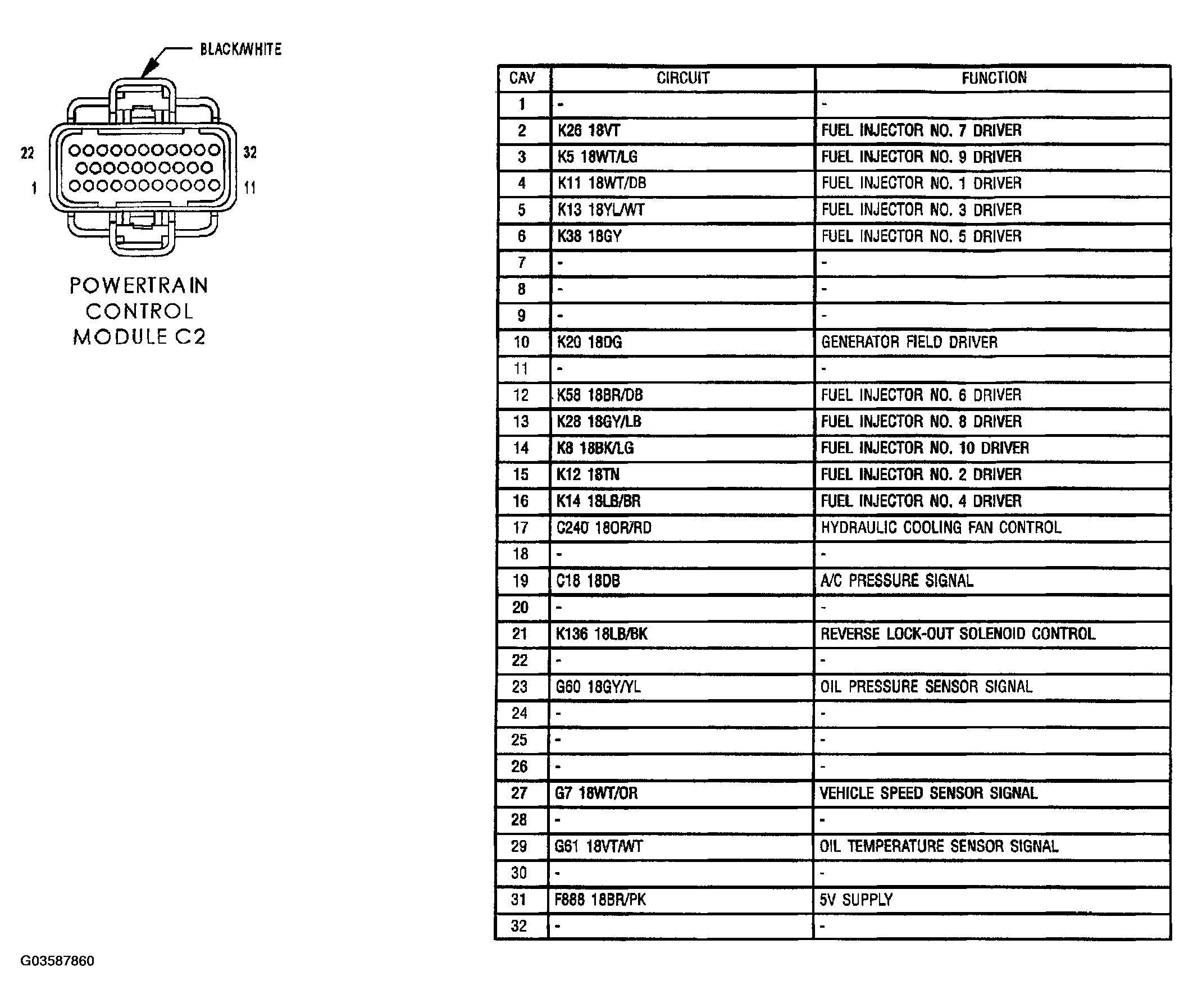

Fig 1: Powertrain Control Module Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
