Standard Procedure: Notes

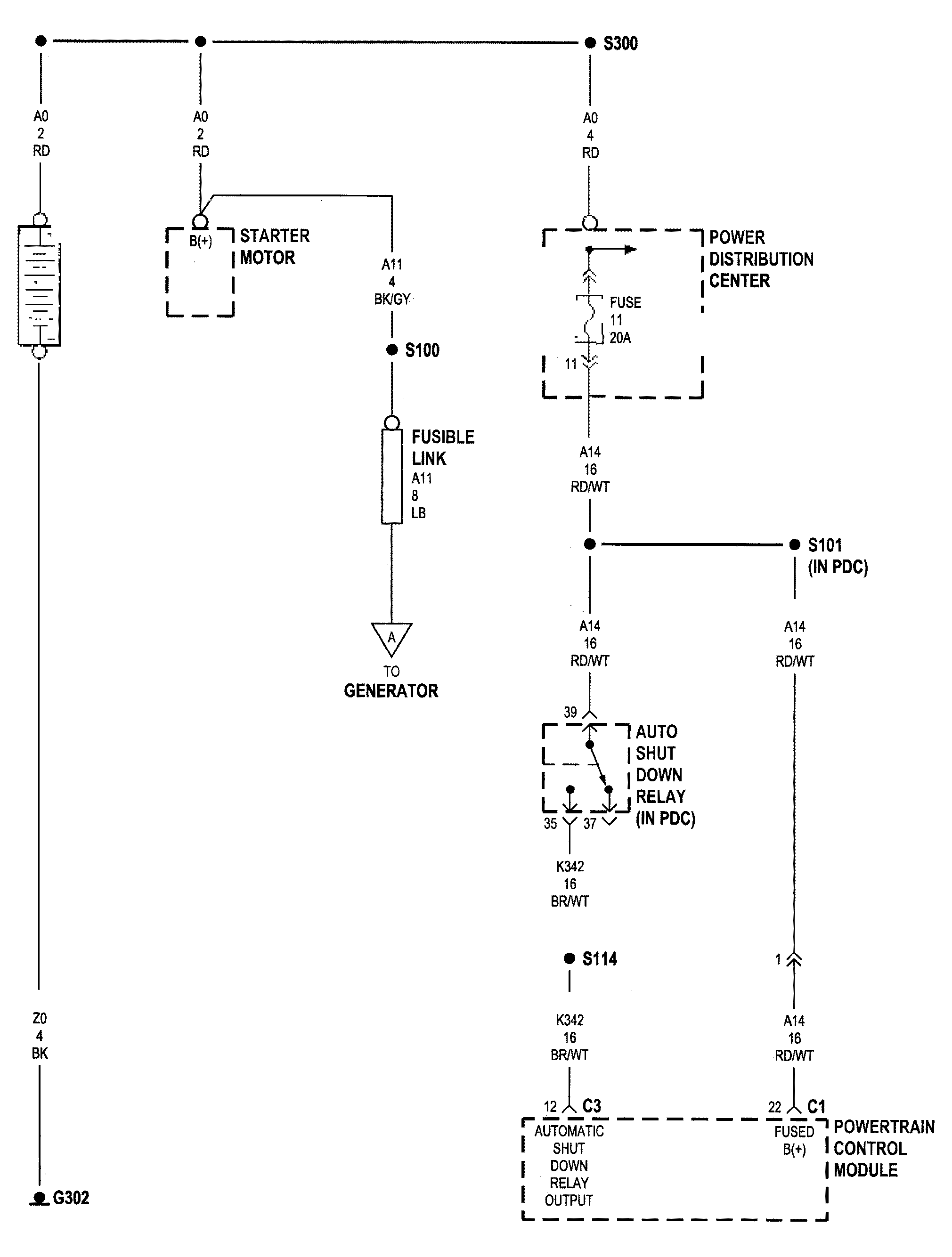

Fig 1: Generator Wiring (2004 Viper - 1 Of 2)
G00236209Courtesy of DAIMLERCHRYSLER CORP.

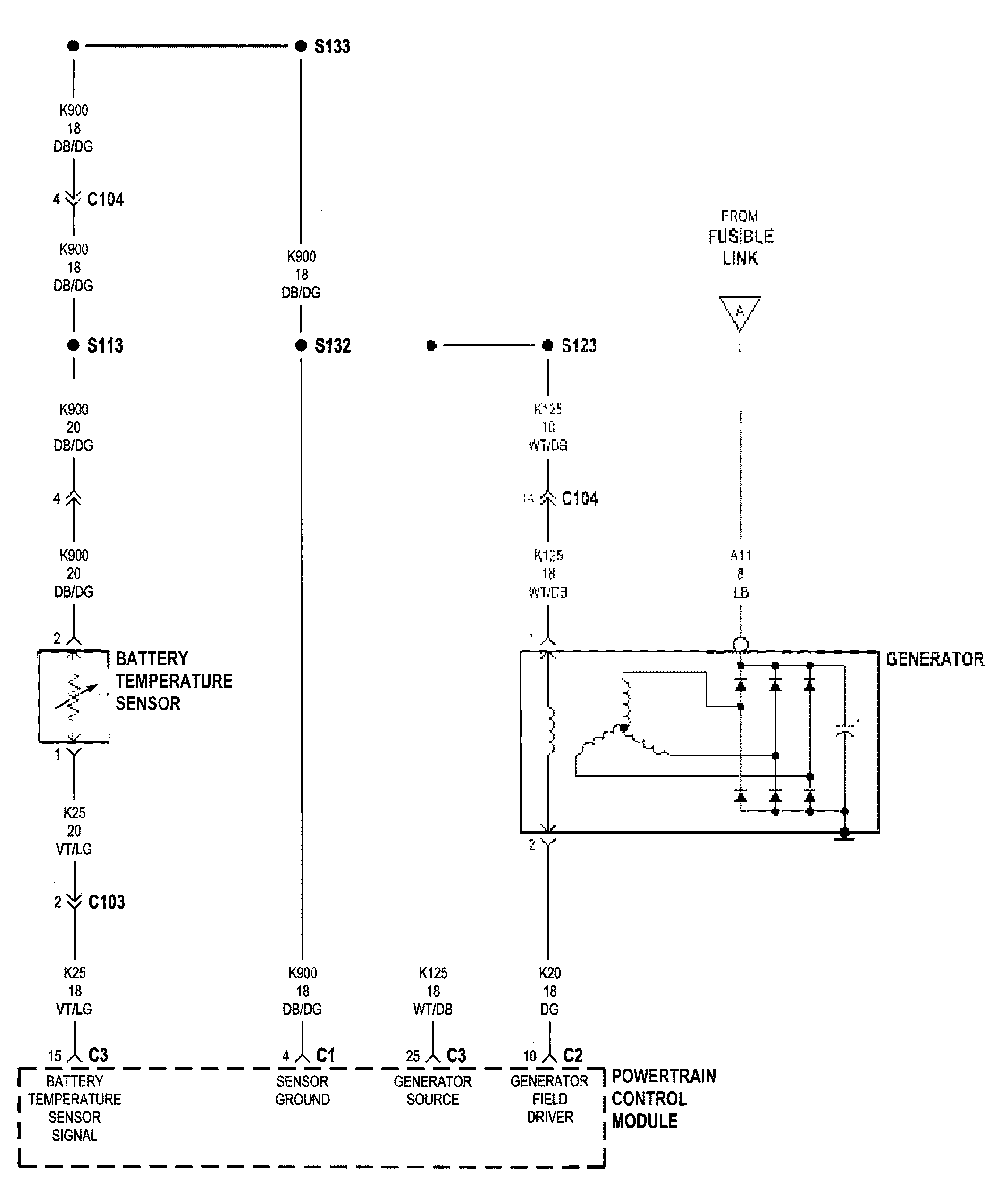

Fig 2: Generator Wiring (2004 Viper - 2 Of 2)
G00236210Courtesy of DAIMLERCHRYSLER CORP.
