Starter Motor: Installation
- Install the starter.
- Install the lower bolt.

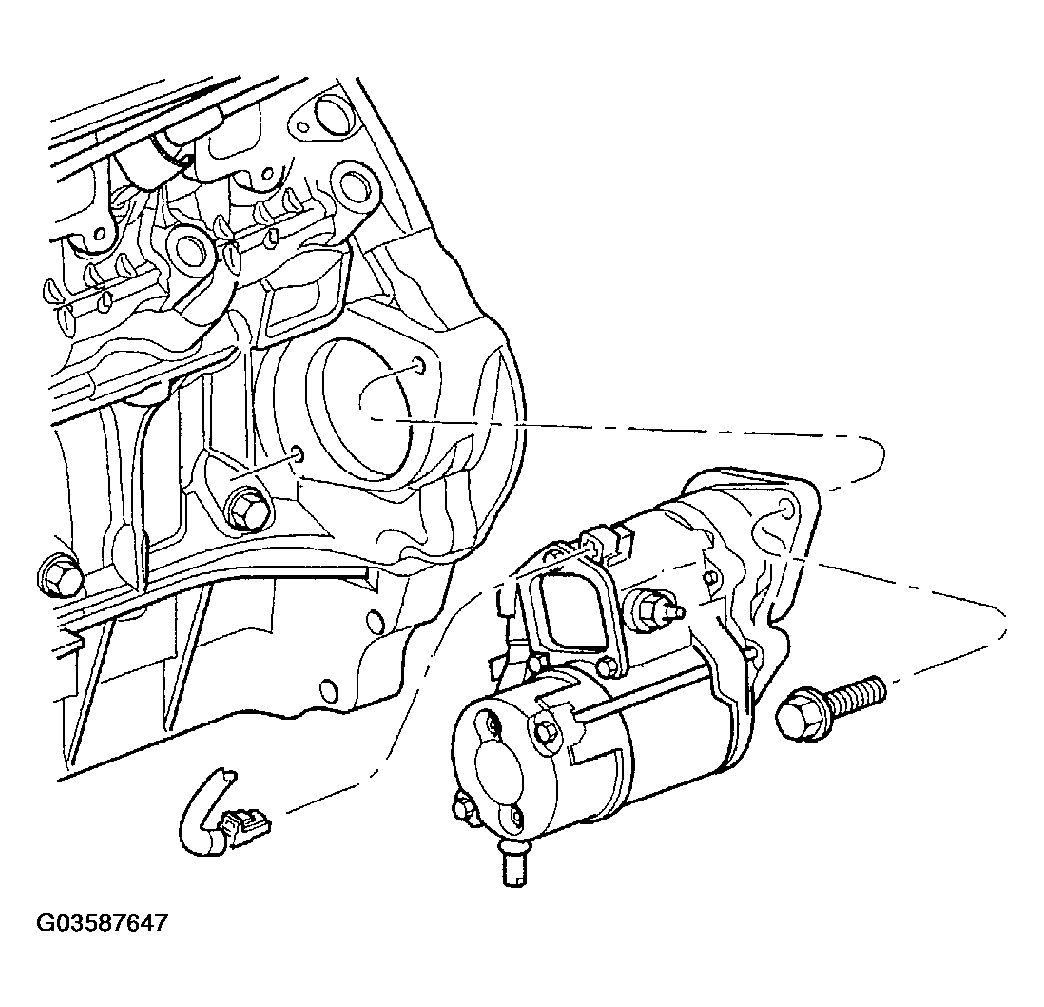

- Install the upper bolt (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Install the positive battery cable.
- Connect the solenoid connector.
- Lower vehicle.

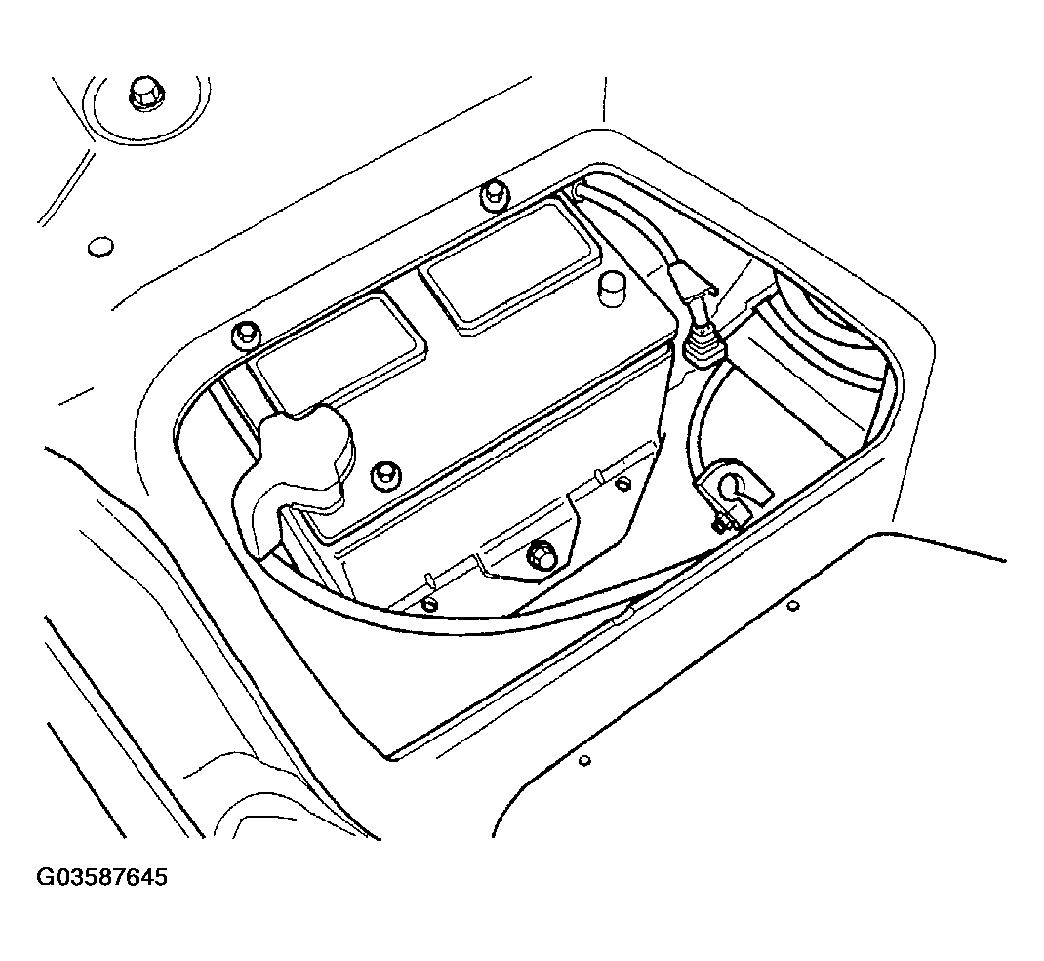

- Connect the negative battery cable (Figure
).
