Diagnosis And Testing - Starting System Test: Notes

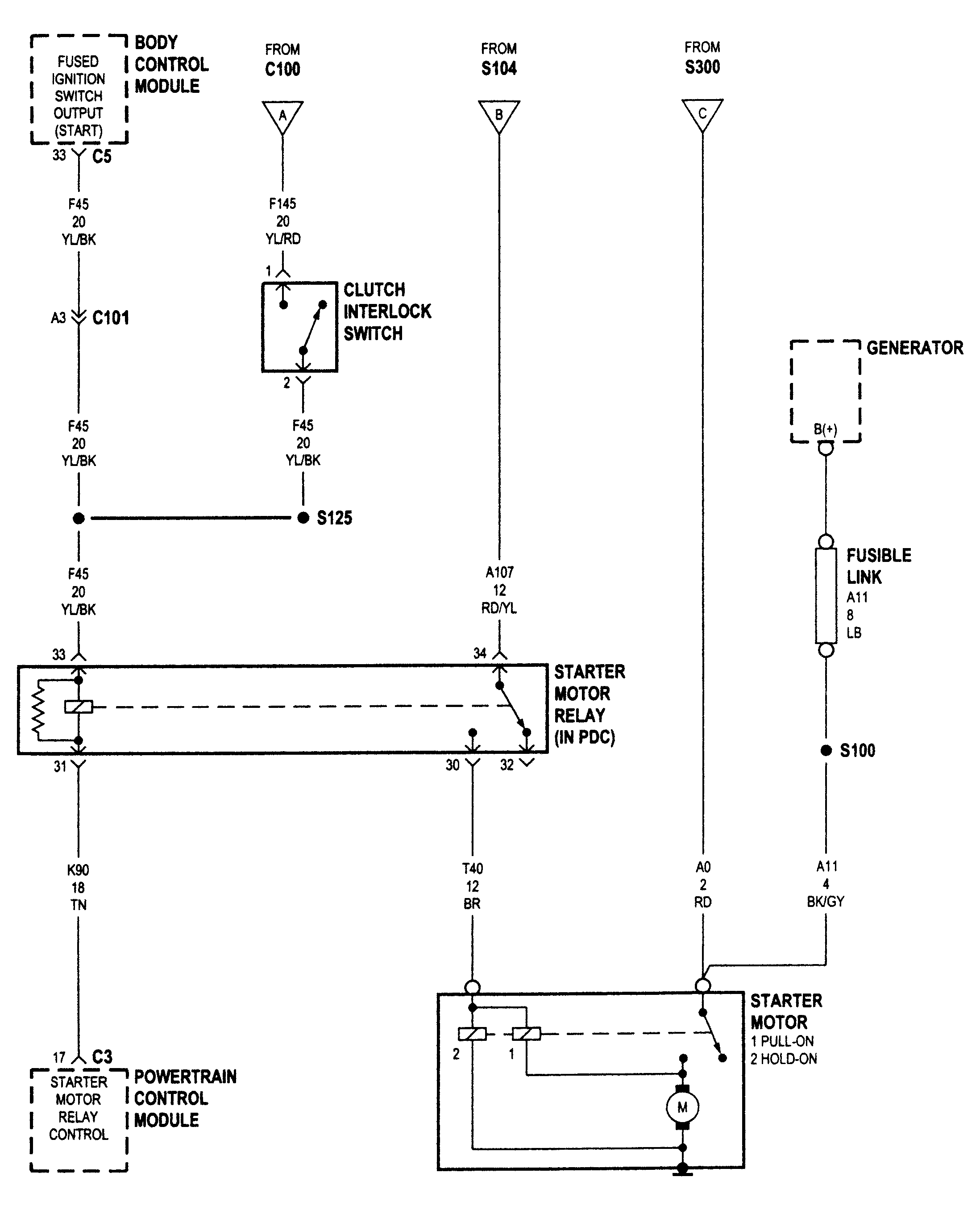

Fig 1: Starter Circuit Wiring Diagram (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

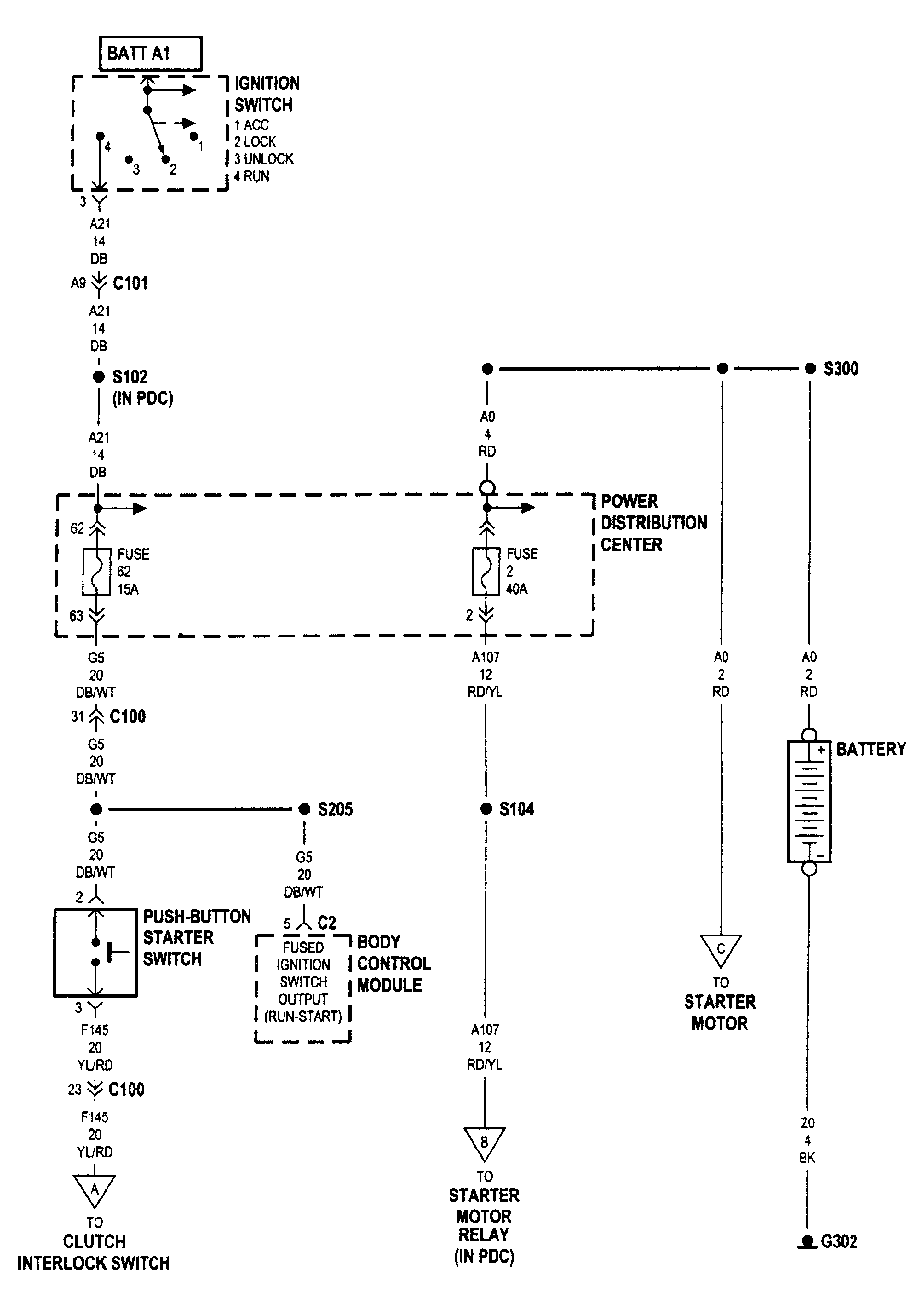

Fig 2: Starter Circuit Wiring Diagram (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, BEFORE ATTEMPTING STEERING WHEEL, STEERING COLUMN INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE, DISABLE AIR BAG. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
