Fuel Filler Tube: Installation

Connect fuel filler tube to fuel tank. Tighten clamp.
Install the rubber vapor recirculation line to the fuel filler tube.
Install inner splash shields.
Install right rear tire.
Lower vehicle.

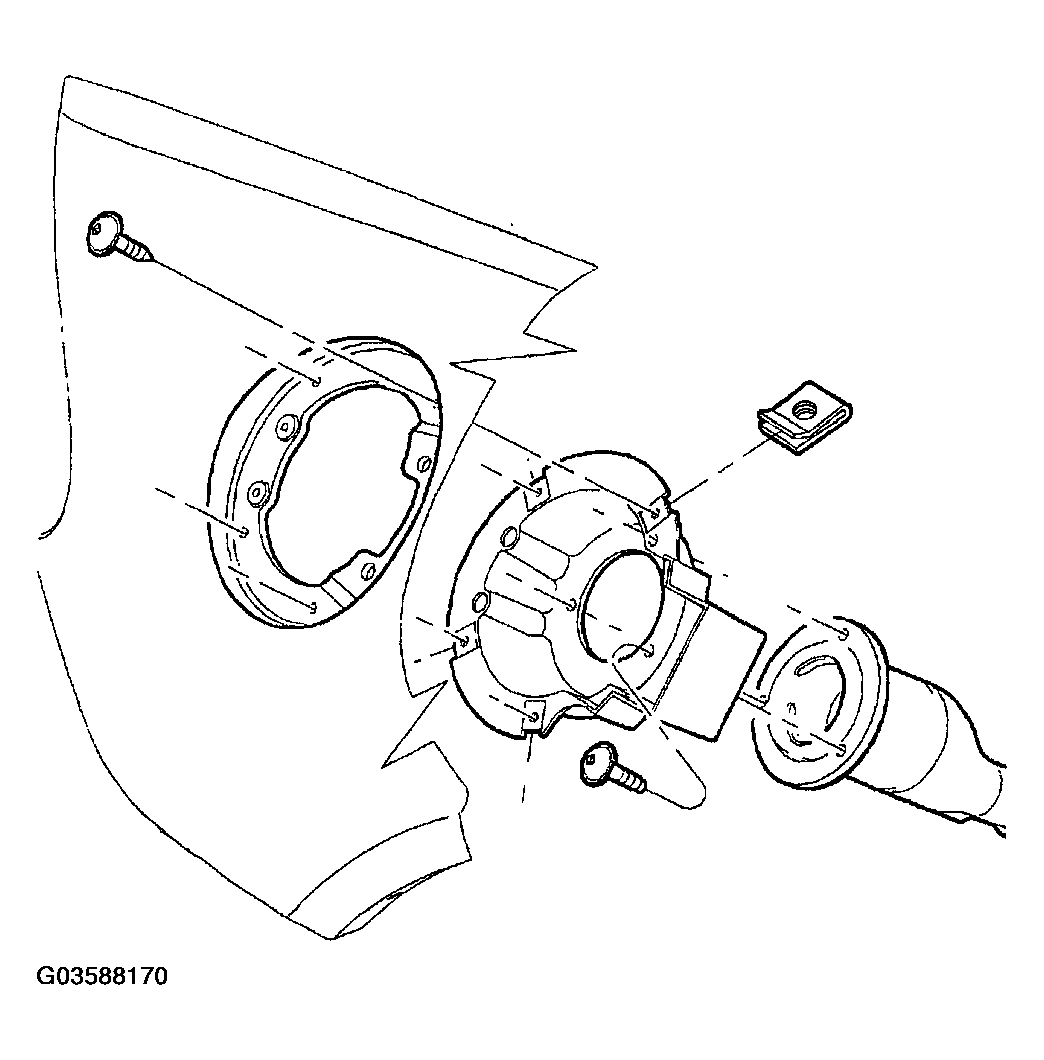

Install fuel filler neck screws (Figure ).
Tighten fuel filler tube cap.
